Datasheet ADP1720-EP (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | 50 mA, High Voltage, Micropower Linear Regulator |
| 页数 / 页 | 12 / 5 — Data Sheet. ADP1720-EP. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL … |
| 修订版 | A |
| 文件格式/大小 | PDF / 920 Kb |
| 文件语言 | 英语 |
Data Sheet. ADP1720-EP. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE. Parameter. Rating. Table 3. Thermal Resistance
该数据表的模型线
文件文字版本

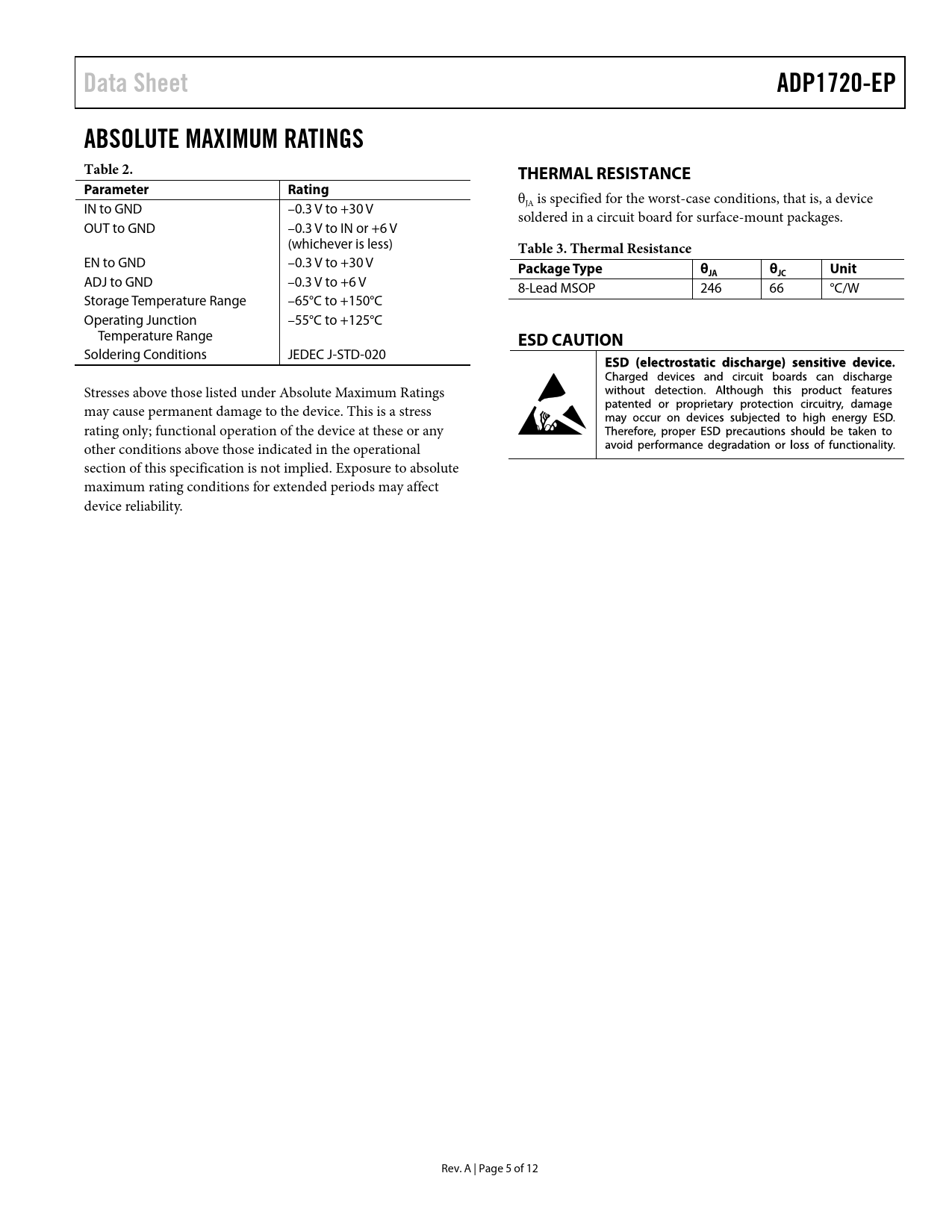

Data Sheet ADP1720-EP ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE Parameter Rating
θ IN to GND –0.3 V to +30 V JA is specified for the worst-case conditions, that is, a device soldered in a circuit board for surface-mount packages. OUT to GND –0.3 V to IN or +6 V (whichever is less)
Table 3. Thermal Resistance
EN to GND –0.3 V to +30 V
Package Type θ θ Unit JA JC
ADJ to GND –0.3 V to +6 V 8-Lead MSOP 246 66 °C/W Storage Temperature Range –65°C to +150°C Operating Junction –55°C to +125°C Temperature Range
ESD CAUTION
Soldering Conditions JEDEC J-STD-020 Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. A | Page 5 of 12 Document Outline Features Enhanced Product Features Applications Typical Application Circuits General Description Revision History Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Applications Information Thermal Considerations Outline Dimensions Ordering Guide
