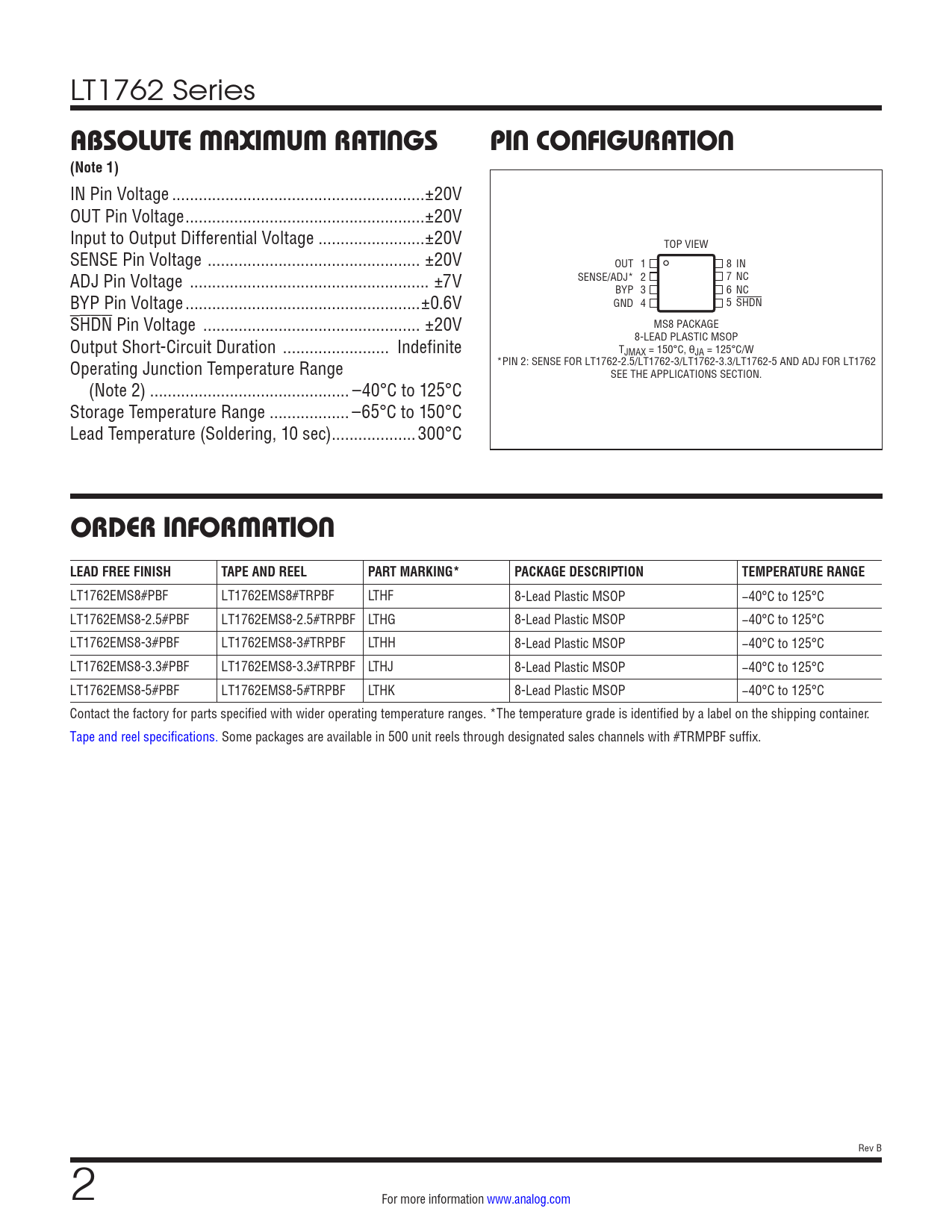

LT1762 Series
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
IN Pin Voltage ...±20V OUT Pin Voltage ..±20V Input to Output Differential Voltage ..±20V TOP VIEW SENSE Pin Voltage .. ±20V OUT 1 8 IN ADJ Pin Voltage .. ±7V SENSE/ADJ* 2 7 NC BYP 3 6 NC BYP Pin Voltage ...±0.6V GND 4 5 SHDN SHDN Pin Voltage ... ±20V MS8 PACKAGE Output Short-Circuit Duration .. Indefinite 8-LEAD PLASTIC MSOP TJMAX = 150°C, θJA = 125°C/W Operating Junction Temperature Range *PIN 2: SENSE FOR LT1762-2.5/LT1762-3/LT1762-3.3/LT1762-5 AND ADJ FOR LT1762 SEE THE APPLICATIONS SECTION. (Note 2) ... –40°C to 125°C Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10 sec) ...300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1762EMS8#PBF LT1762EMS8#TRPBF LTHF 8-Lead Plastic MSOP −40°C to 125°C LT1762EMS8-2.5#PBF LT1762EMS8-2.5#TRPBF LTHG 8-Lead Plastic MSOP −40°C to 125°C LT1762EMS8-3#PBF LT1762EMS8-3#TRPBF LTHH 8-Lead Plastic MSOP −40°C to 125°C LT1762EMS8-3.3#PBF LT1762EMS8-3.3#TRPBF LTHJ 8-Lead Plastic MSOP −40°C to 125°C LT1762EMS8-5#PBF LT1762EMS8-5#TRPBF LTHK 8-Lead Plastic MSOP −40°C to 125°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. Rev B 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Applications Information Package Description Revision History Typical Application Related Parts
