Datasheet RH117 (Analog Devices)
| 制造商 | Analog Devices |
| 描述 | Positive Adjustable Regulator |
| 页数 / 页 | 4 / 1 — Document Feedback Link. KEYWORDS. Link Update Checklist x Document … |
| 修订版 | D |
| 文件格式/大小 | PDF / 144 Kb |
| 文件语言 | 英语 |
Document Feedback Link. KEYWORDS. Link Update Checklist x Document Feedback. x Part No. (A-Master)
该数据表的模型线
文件文字版本
Document Feedback Link
https://form.analog.com/Form_Pages/feedback/documentfeedback.aspx?doc=RH117.pdf&product=RH117&Rev=D
KEYWORDS
3-terminal, positive adjustable regulator
Link Update Checklist x Document Feedback x Part No. (A-Master) x Part No (p1) x Analog Footers from Template x Update TOC x https://

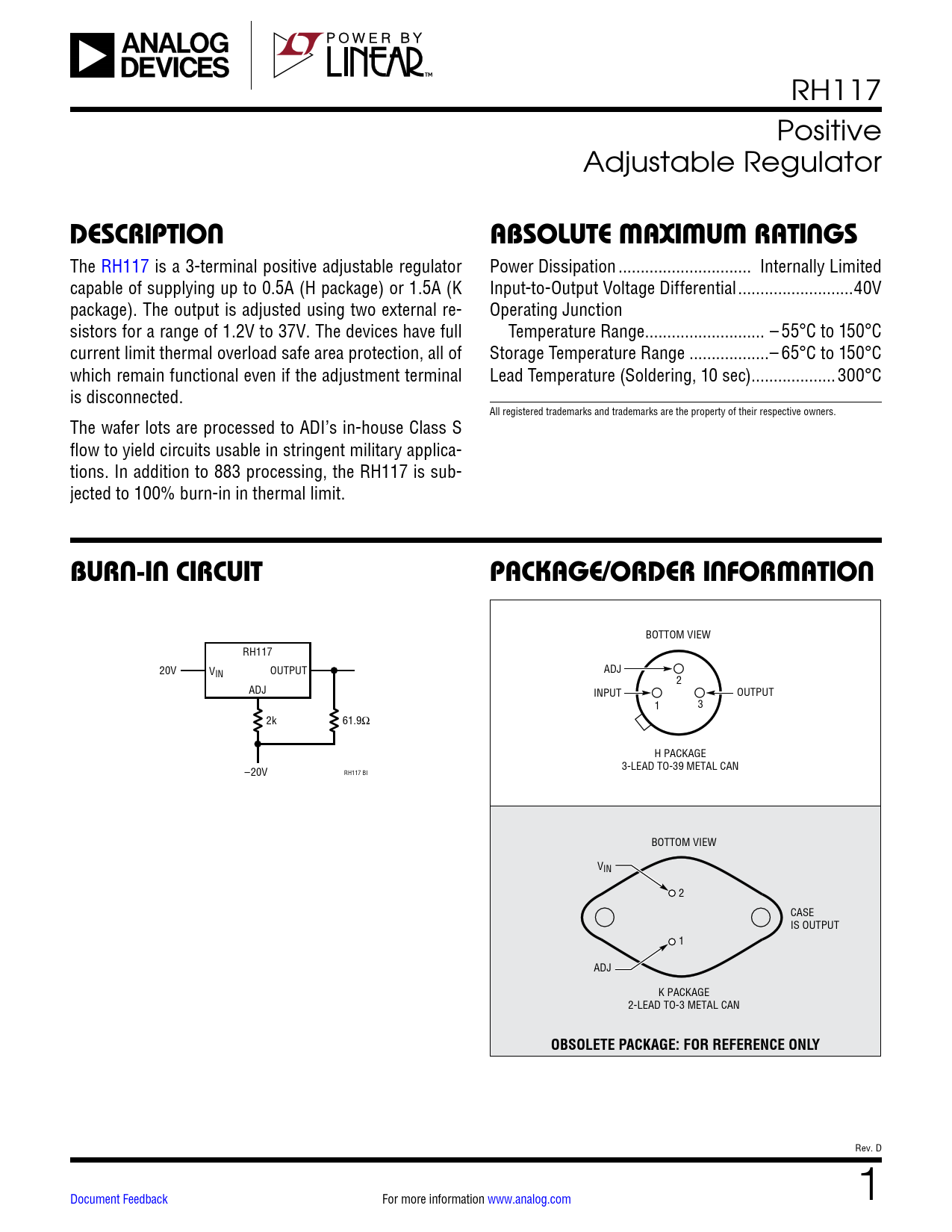

RH117 Positive Adjustable Regulator
DESCRIPTION ABSOLUTE MAXIMUM RATINGS
The RH117 is a 3-terminal positive adjustable regulator Power Dissipation .. Internally Limited capable of supplying up to 0.5A (H package) or 1.5A (K Input-to-Output Voltage Differential ..40V package). The output is adjusted using two external re- Operating Junction sistors for a range of 1.2V to 37V. The devices have full Temperature Range ... – 55°C to 150°C current limit thermal overload safe area protection, all of Storage Temperature Range ..– 65°C to 150°C which remain functional even if the adjustment terminal Lead Temperature (Soldering, 10 sec) ...300°C is disconnected. All registered trademarks and trademarks are the property of their respective owners. The wafer lots are processed to ADI’s in-house Class S flow to yield circuits usable in stringent military applica- tions. In addition to 883 processing, the RH117 is sub- jected to 100% burn-in in thermal limit.
BURN-IN CIRCUIT PACKAGE/ORDER INFORMATION
BOTTOM VIEW RH117 20V VIN OUTPUT ADJ 2 ADJ INPUT OUTPUT 1 3 2k 61.9Ω H PACKAGE –20V 3-LEAD TO-39 METAL CAN RH117 BI BOTTOM VIEW VIN 2 CASE IS OUTPUT 1 ADJ K PACKAGE 2-LEAD TO-3 METAL CAN
OBSOLETE PACKAGE: FOR REFERENCE ONLY
Rev. D Document Feedback For more information www.analog.com 1 Document Outline Description Burn-In Circuit Absolute Maximum Ratings Package/Order information Table 1: Electrical Characteristics Total Dose Bias Circuit Table 1: Electrical characteristics Typical Performance Characteristics Revision History
