Datasheet UF4001, UF4002, UF4003, UF4004, UF4005, UF4006, UF4007 (Vishay)
| 制造商 | Vishay |
| 描述 | Ultrafast Plastic Rectifier |
| 页数 / 页 | 5 / 1 — FEATURES. TYPICAL APPLICATIONS. PRIMARY CHARACTERISTICS. MECHANICAL DATA. … |
| 文件格式/大小 | PDF / 73 Kb |
| 文件语言 | 英语 |
FEATURES. TYPICAL APPLICATIONS. PRIMARY CHARACTERISTICS. MECHANICAL DATA. MAXIMUM RATINGS
该数据表的模型线
文件文字版本

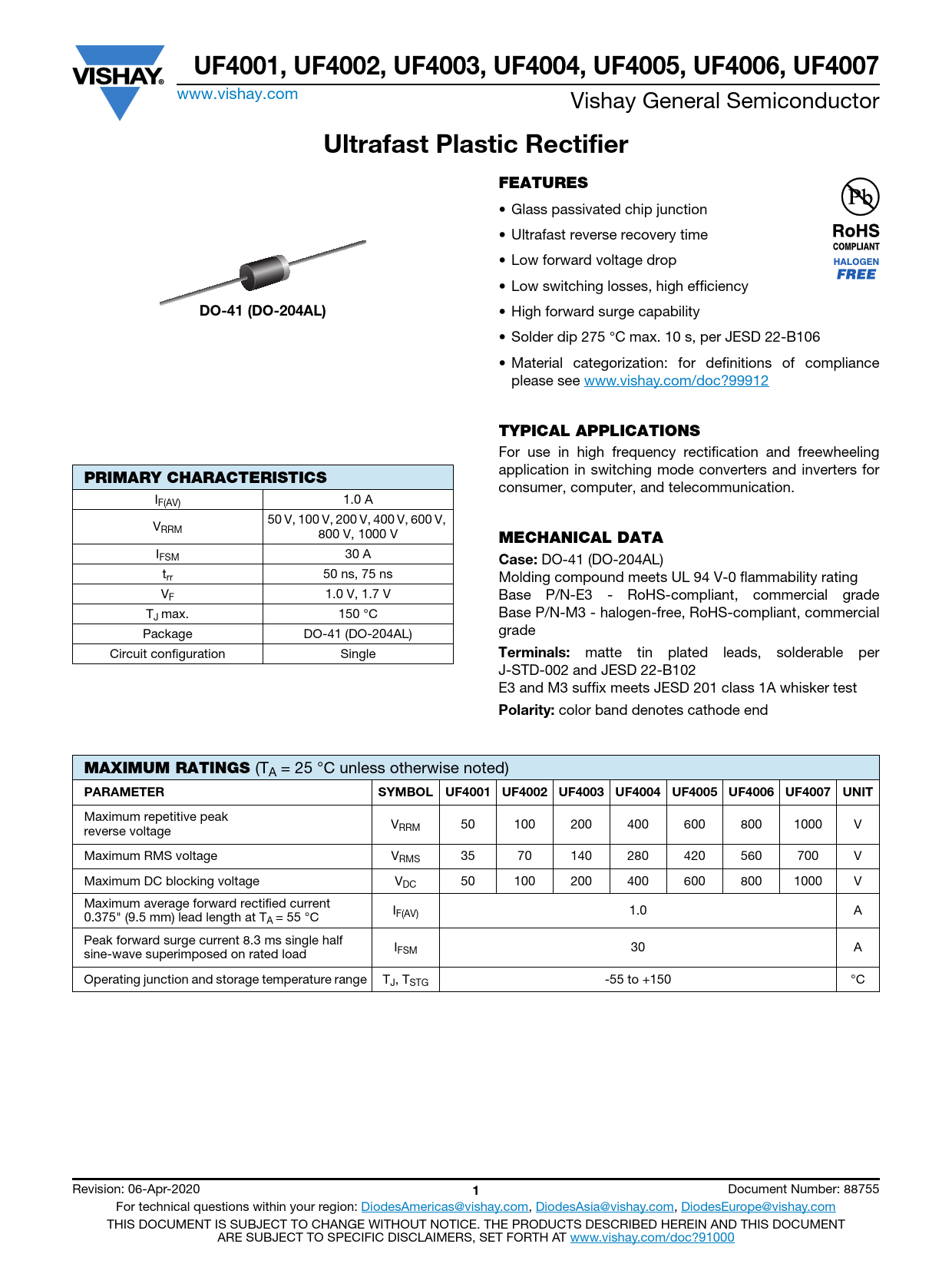

UF4001, UF4002, UF4003, UF4004, UF4005, UF4006, UF4007 www.vishay.com Vishay General Semiconductor Ultrafast Plastic Rectifier
FEATURES
• Glass passivated chip junction • Ultrafast reverse recovery time • Low forward voltage drop • Low switching losses, high efficiency DO-41 (DO-204AL) • High forward surge capability • Solder dip 275 °C max. 10 s, per JESD 22-B106 • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
TYPICAL APPLICATIONS
For use in high frequency rectification and freewheeling application in switching mode converters and inverters for
PRIMARY CHARACTERISTICS
consumer, computer, and telecommunication. IF(AV) 1.0 A 50 V, 100 V, 200 V, 400 V, 600 V, VRRM 800 V, 1000 V
MECHANICAL DATA
IFSM 30 A Case: DO-41 (DO-204AL) trr 50 ns, 75 ns Molding compound meets UL 94 V-0 flammability rating VF 1.0 V, 1.7 V Base P/N-E3 - RoHS-compliant, commercial grade T Base P/N-M3 - halogen-free, RoHS-compliant, commercial J max. 150 °C grade Package DO-41 (DO-204AL) Circuit configuration Single Terminals: matte tin plated leads, solderable per J-STD-002 and JESD 22-B102 E3 and M3 suffix meets JESD 201 class 1A whisker test Polarity: color band denotes cathode end
MAXIMUM RATINGS
(TA = 25 °C unless otherwise noted) PARAMETER SYMBOL UF4001 UF4002 UF4003 UF4004 UF4005 UF4006 UF4007 UNIT Maximum repetitive peak V reverse voltage RRM 50 100 200 400 600 800 1000 V Maximum RMS voltage VRMS 35 70 140 280 420 560 700 V Maximum DC blocking voltage VDC 50 100 200 400 600 800 1000 V Maximum average forward rectified current I 0.375" (9.5 mm) lead length at T F(AV) 1.0 A A = 55 °C Peak forward surge current 8.3 ms single half I sine-wave superimposed on rated load FSM 30 A Operating junction and storage temperature range TJ, TSTG -55 to +150 °C Revision: 06-Apr-2020 1 Document Number: 88755 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
