Datasheet AD633 (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | Low Cost Analog Multiplier |
| 页数 / 页 | 20 / 4 — AD633. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. … |
| 修订版 | K |
| 文件格式/大小 | PDF / 1.8 Mb |
| 文件语言 | 英语 |

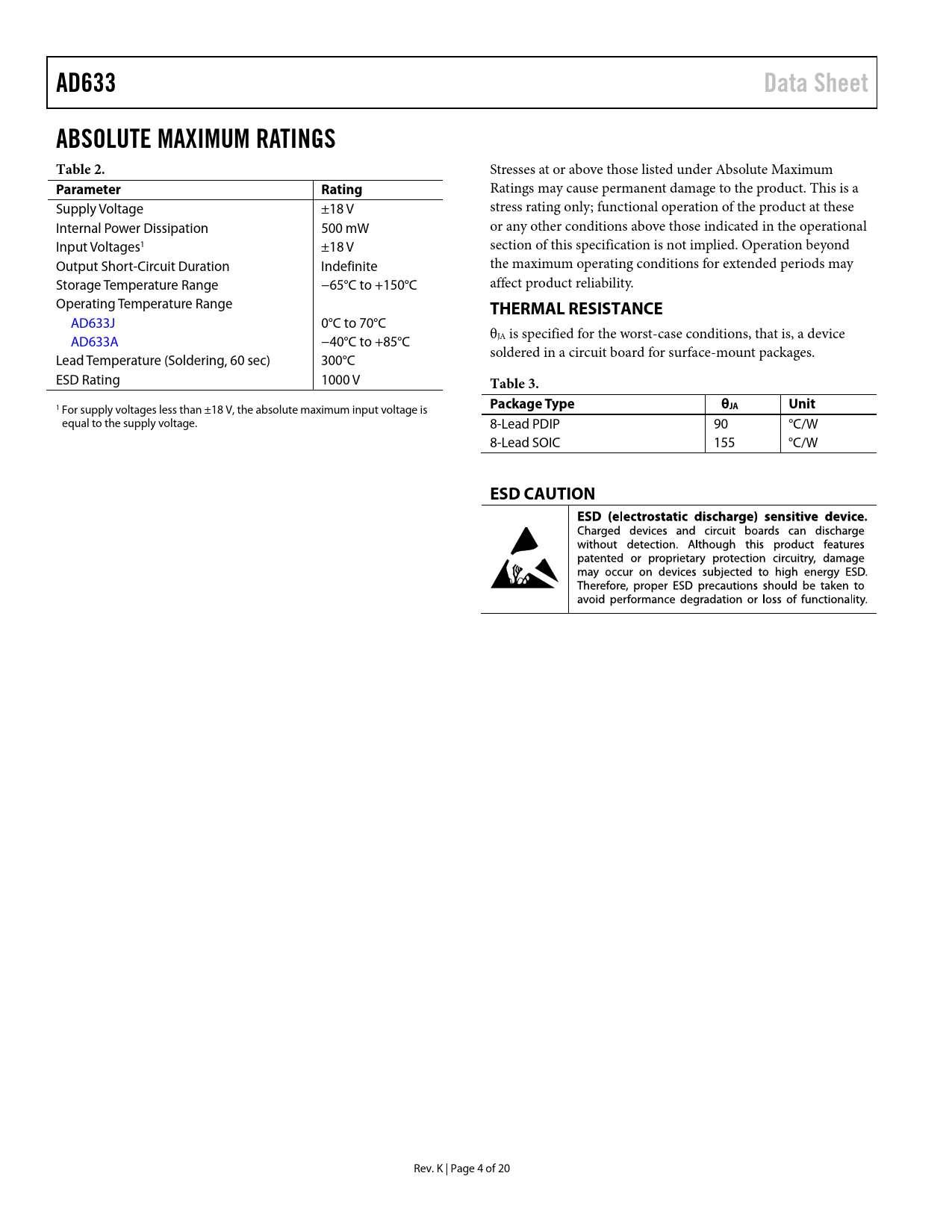

AD633. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. THERMAL RESISTANCE. Table 3. Package Type. θJA. Unit. ESD CAUTION
该数据表的模型线
文件文字版本
AD633 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a Supply Voltage ±18 V stress rating only; functional operation of the product at these Internal Power Dissipation 500 mW or any other conditions above those indicated in the operational Input Voltages1 ±18 V section of this specification is not implied. Operation beyond Output Short-Circuit Duration Indefinite the maximum operating conditions for extended periods may Storage Temperature Range −65°C to +150°C affect product reliability. Operating Temperature Range
THERMAL RESISTANCE
AD633J 0°C to 70°C θ AD633A −40°C to +85°C JA is specified for the worst-case conditions, that is, a device Lead Temperature (Soldering, 60 sec) 300°C soldered in a circuit board for surface-mount packages. ESD Rating 1000 V
Table 3.
1 For supply voltages less than ±18 V, the absolute maximum input voltage is
Package Type θJA Unit
equal to the supply voltage. 8-Lead PDIP 90 °C/W 8-Lead SOIC 155 °C/W
ESD CAUTION
Rev. K | Page 4 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS FUNCTIONAL DESCRIPTION ERROR SOURCES APPLICATIONS INFORMATION MULTIPLIER CONNECTIONS SQUARING AND FREQUENCY DOUBLING GENERATING INVERSE FUNCTIONS VARIABLE SCALE FACTOR CURRENT OUTPUT LINEAR AMPLITUDE MODULATOR VOLTAGE-CONTROLLED, LOW-PASS AND HIGH-PASS FILTERS VOLTAGE-CONTROLLED QUADRATURE OSCILLATOR AUTOMATIC GAIN CONTROL (AGC) AMPLIFIERS MODEL RESULTS EXAMPLES OF DC, SIN, AND PULSE SOLUTIONS USING MULTISIM EXAMPLES OF DC, SIN, AND PULSE SOLUTIONS USING PSPICE EXAMPLES OF DC, SIN, AND PULSE SOLUTIONS USING SIMETRIX EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
