Datasheet AD633-EP (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | Low Cost Analog Multiplier |
| 页数 / 页 | 7 / 4 — AD633-EP. Enhanced Product. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL … |
| 修订版 | B |
| 文件格式/大小 | PDF / 182 Kb |
| 文件语言 | 英语 |
AD633-EP. Enhanced Product. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE. Parameter. Rating. Table 3. Package Type. θ 1. θJC. Unit
该数据表的模型线
文件文字版本
link to page 4 link to page 4

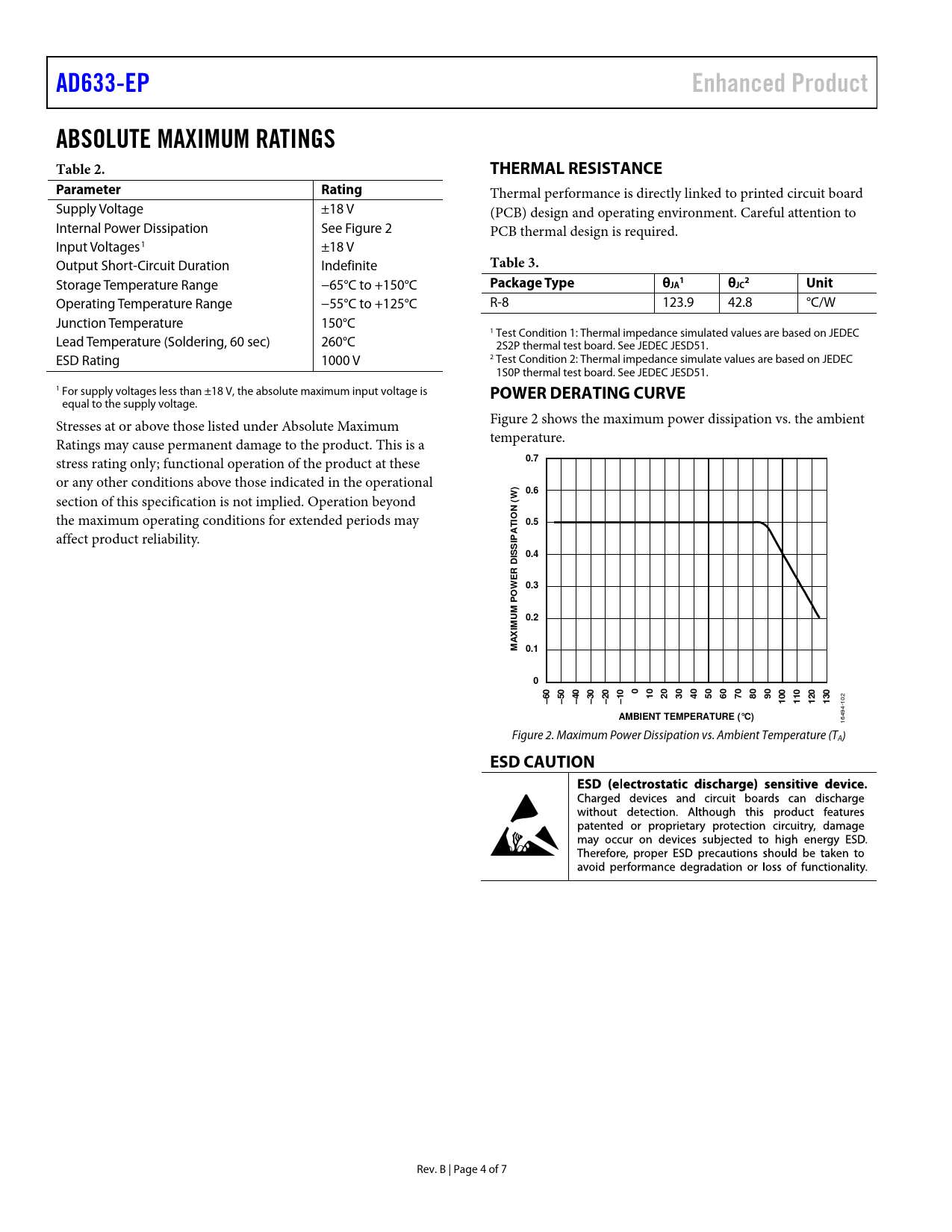

AD633-EP Enhanced Product ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE Parameter Rating
Thermal performance is directly linked to printed circuit board Supply Voltage ±18 V (PCB) design and operating environment. Careful attention to Internal Power Dissipation See Figure 2 PCB thermal design is required. Input Voltages1 ±18 V Output Short-Circuit Duration Indefinite
Table 3.
Storage Temperature Range −65°C to +150°C
Package Type θ 1 2 JA θJC Unit
Operating Temperature Range −55°C to +125°C R-8 123.9 42.8 °C/W Junction Temperature 150°C 1 Test Condition 1: Thermal impedance simulated values are based on JEDEC Lead Temperature (Soldering, 60 sec) 260°C 2S2P thermal test board. See JEDEC JESD51. ESD Rating 1000 V 2 Test Condition 2: Thermal impedance simulate values are based on JEDEC 1S0P thermal test board. See JEDEC JESD51. 1 For supply voltages less than ±18 V, the absolute maximum input voltage is
POWER DERATING CURVE
equal to the supply voltage. Stresses at or above those listed under Absolute Maximum Figure 2 shows the maximum power dissipation vs. the ambient Ratings may cause permanent damage to the product. This is a temperature. stress rating only; functional operation of the product at these
0.7
or any other conditions above those indicated in the operational
) 0.6
section of this specification is not implied. Operation beyond
(W N
the maximum operating conditions for extended periods may
IO 0.5 T
affect product reliability.
PA ISSI 0.4 D ER W 0.3 M PO 0.2 MU XI MA 0.1 0 0 10 20 30 40 50 60 70 80 90 –60 –50 –40 –30 –20 –10 100 110 120 130
102
AMBIENT TEMPERATURE (°C)
16494- Figure 2. Maximum Power Dissipation vs. Ambient Temperature (TA)
