Datasheet AD633-EP (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | Low Cost Analog Multiplier |
| 页数 / 页 | 7 / 5 — Enhanced Product. AD633-EP. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. … |
| 修订版 | B |
| 文件格式/大小 | PDF / 182 Kb |
| 文件语言 | 英语 |
Enhanced Product. AD633-EP. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. 10V. +VS. (X1 – X2)(Y1 – Y2). W =. + Z
该数据表的模型线
文件文字版本
Enhanced Product AD633-EP PIN CONFIGURATION AND FUNCTION DESCRIPTIONS Y1 1 8 X2 1 1 Y2 2 1 7 X1 10V –V 3 S 6 +VS A Z 4 5 W AD633-EP (X1 – X2)(Y1 – Y2)
003
W = + Z 10V

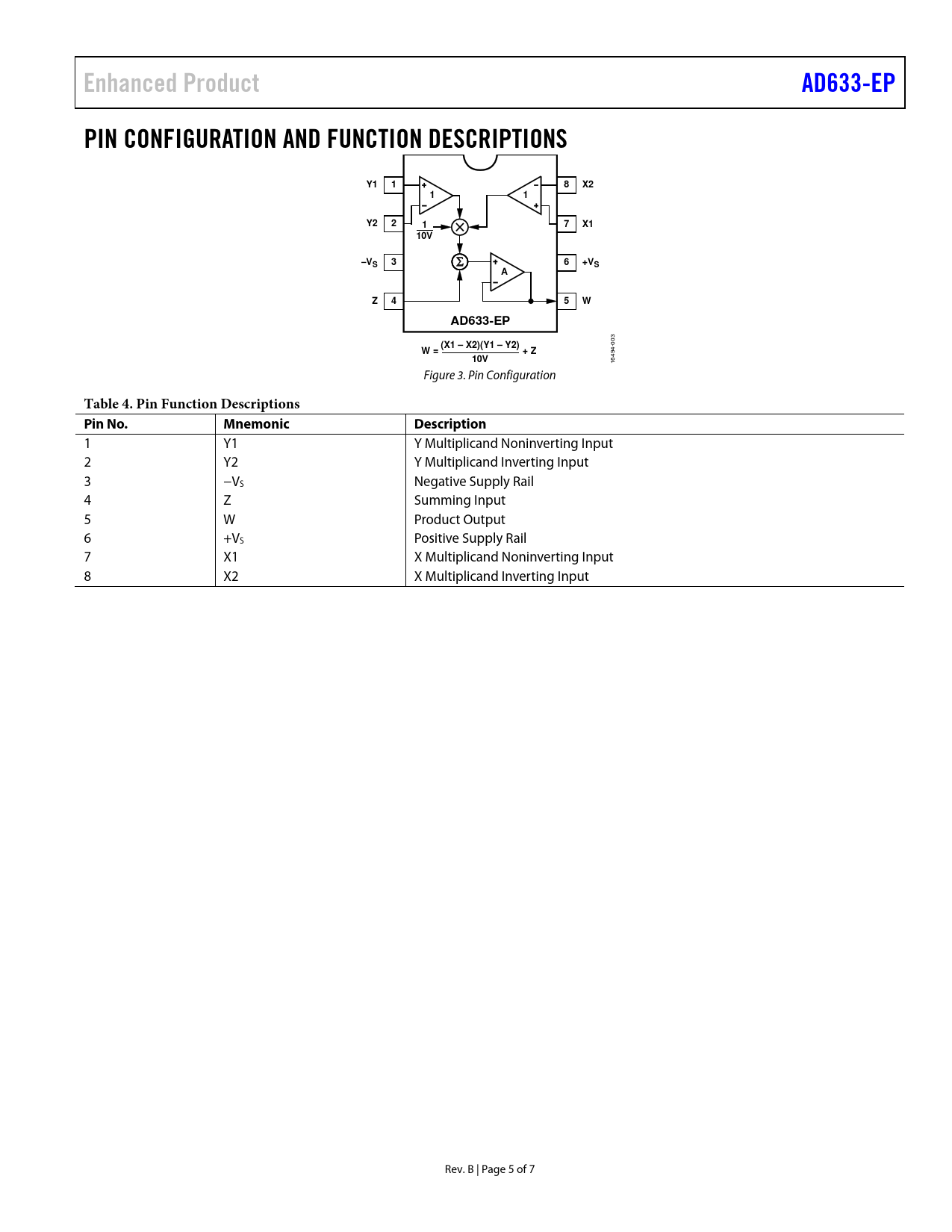

16494- Figure 3. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 Y1 Y Multiplicand Noninverting Input 2 Y2 Y Multiplicand Inverting Input 3 −VS Negative Supply Rail 4 Z Summing Input 5 W Product Output 6 +VS Positive Supply Rail 7 X1 X Multiplicand Noninverting Input 8 X2 X Multiplicand Inverting Input Rev. B | Page 5 of 7 Document Outline Features Enhanced Product Features Applications Functional Block Diagram General Description Product Highlights Revision History Specifications Absolute Maximum Ratings Thermal Resistance Power Derating Curve ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Outline Dimensions Ordering Guide
