描述Internally Trimmed Integrated Circuit Multiplier
页数 / 页14 / 3 — Data Sheet. AD532. SPECIFICATIONS. Table 1. AD532J. AD532K. AD532S. …
修订版E
文件格式/大小PDF / 348 Kb
文件语言英语

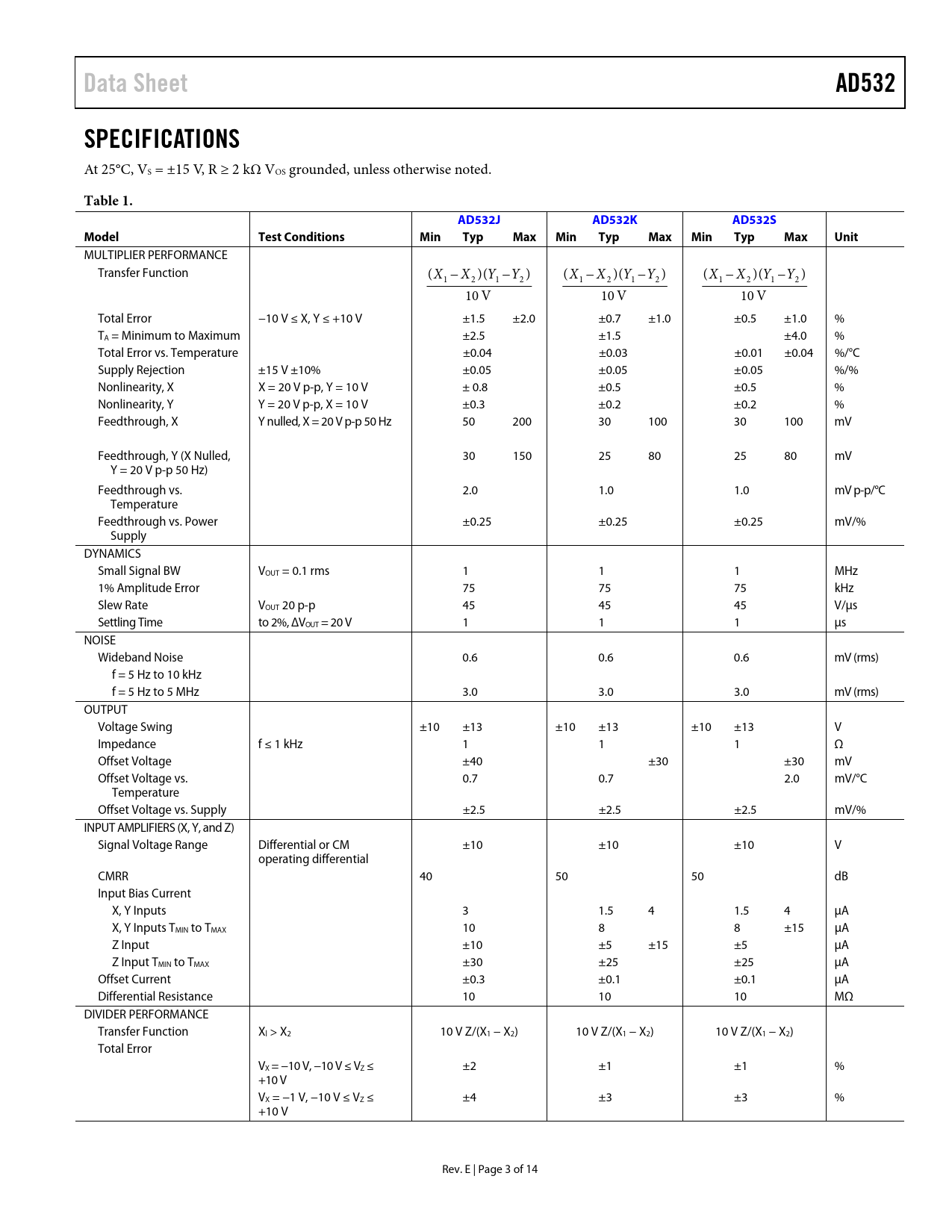

Data Sheet. AD532. SPECIFICATIONS. Table 1. AD532J. AD532K. AD532S. Model. Test Conditions. Min. Typ. Max. Unit

Data Sheet AD532 SPECIFICATIONS Table 1 AD532J AD532K AD532S Model Test Conditions Min Typ Max Unit

该数据表的模型线

文件文字版本

Data Sheet AD532 SPECIFICATIONS
At 25°C, VS = ±15 V, R ≥ 2 kΩ VOS grounded, unless otherwise noted.
Table 1. AD532J AD532K AD532S Model Test Conditions Min Typ Max Min Typ Max Min Typ Max Unit
MULTIPLIER PERFORMANCE Transfer Function (X  X )(Y Y ) (X  X )(Y Y ) (X  X )(Y Y ) 1 2 1 2 1 2 1 2 1 2 1 2 10 V 10 V 10 V Total Error −10 V ≤ X, Y ≤ +10 V ±1.5 ±2.0 ±0.7 ±1.0 ±0.5 ±1.0 % TA = Minimum to Maximum ±2.5 ±1.5 ±4.0 % Total Error vs. Temperature ±0.04 ±0.03 ±0.01 ±0.04 %/°C Supply Rejection ±15 V ±10% ±0.05 ±0.05 ±0.05 %/% Nonlinearity, X X = 20 V p-p, Y = 10 V ± 0.8 ±0.5 ±0.5 % Nonlinearity, Y Y = 20 V p-p, X = 10 V ±0.3 ±0.2 ±0.2 % Feedthrough, X Y nulled, X = 20 V p-p 50 Hz 50 200 30 100 30 100 mV Feedthrough, Y (X Nulled, 30 150 25 80 25 80 mV Y = 20 V p-p 50 Hz) Feedthrough vs. 2.0 1.0 1.0 mV p-p/°C Temperature Feedthrough vs. Power ±0.25 ±0.25 ±0.25 mV/% Supply DYNAMICS Small Signal BW VOUT = 0.1 rms 1 1 1 MHz 1% Amplitude Error 75 75 75 kHz Slew Rate VOUT 20 p-p 45 45 45 V/μs Settling Time to 2%, ΔVOUT = 20 V 1 1 1 μs NOISE Wideband Noise 0.6 0.6 0.6 mV (rms) f = 5 Hz to 10 kHz f = 5 Hz to 5 MHz 3.0 3.0 3.0 mV (rms) OUTPUT Voltage Swing ±10 ±13 ±10 ±13 ±10 ±13 V Impedance f ≤ 1 kHz 1 1 1 Ω Offset Voltage ±40 ±30 ±30 mV Offset Voltage vs. 0.7 0.7 2.0 mV/°C Temperature Offset Voltage vs. Supply ±2.5 ±2.5 ±2.5 mV/% INPUT AMPLIFIERS (X, Y, and Z) Signal Voltage Range Differential or CM ±10 ±10 ±10 V operating differential CMRR 40 50 50 dB Input Bias Current X, Y Inputs 3 1.5 4 1.5 4 μA X, Y Inputs TMIN to TMAX 10 8 8 ±15 μA Z Input ±10 ±5 ±15 ±5 μA Z Input TMIN to TMAX ±30 ±25 ±25 μA Offset Current ±0.3 ±0.1 ±0.1 μA Differential Resistance 10 10 10 MΩ DIVIDER PERFORMANCE Transfer Function Xl > X2 10 V Z/(X1 − X2) 10 V Z/(X1 − X2) 10 V Z/(X1 − X2) Total Error VX = −10 V, −10 V ≤ VZ ≤ ±2 ±1 ±1 % +10 V VX = −1 V, −10 V ≤ VZ ≤ ±4 ±3 ±3 % +10 V Rev. E | Page 3 of 14 Document Outline Features Applications General Description Flexibility of Operation Functional Block Diagram Guaranteed Performance Over Temperature Advantages of On The Chip Trimming of The Monolithic AD532 Revision History Specifications Thermal Resistance Chip Dimensions And Bonding Diagram ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Functional Description AD532 Performance Characteristics Nonlinearity AC Feedthrough Common-Mode Rejection Dynamic Characteristics Power Supply Considerations Noise Characteristics Applications Replacing Other IC Multipliers Multiplication Squaring Division Square Root Additional Information Outline Dimensions Ordering Guide
