Datasheet PA94 (Apex) - 3

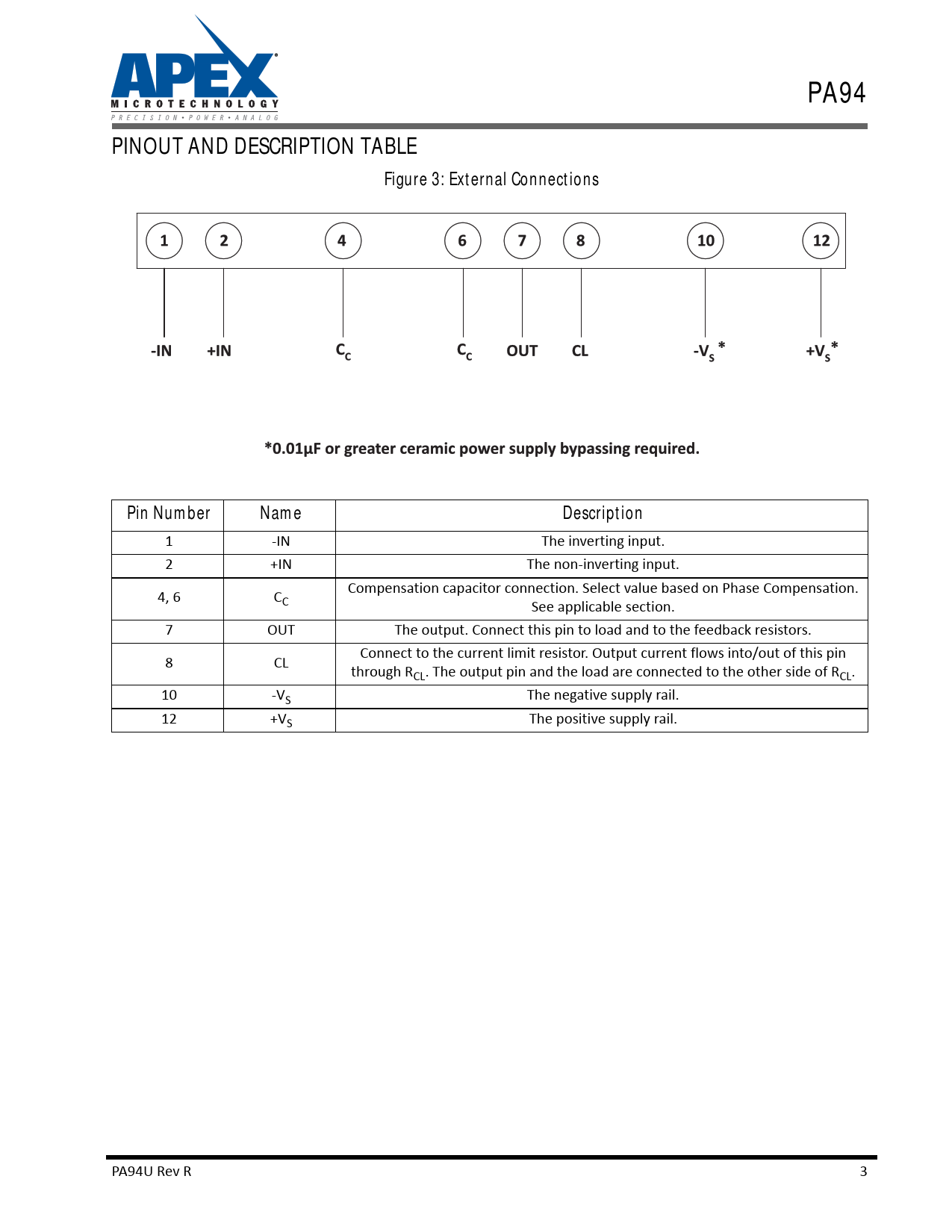

PA94 PINOUT AND DESCRIPTION TABLE Figure 3: External Connections Pin Number Name Description
1 ‐IN The inverting input. 2 +IN The non‐inverting input. Compensation capacitor connection. Select value based on Phase Compensation. 4, 6 CC See applicable section. 7 OUT The output. Connect this pin to load and to the feedback resistors. Connect to the current limit resistor. Output current flows into/out of this pin 8 CL through RCL. The output pin and the load are connected to the other side of RCL. 10 ‐VS The negative supply rail. 12 +VS The positive supply rail. PA94U Rev R 3 Document Outline PA94 Features Applications Description Figure 1: Equivalent Schematic Typical connection Figure 2: Typical Connection Pinout and Description Table Figure 3: External Connections Specifications Absolute Maximum Ratings Input Gain Output Power Supply Thermal Typical Performance Graphs Safe Operating Area (SOA) Figure 12: SOA General Typical Application Figure 13: Typical Application Phase Compensation Internal Power Dissipation And Heatsink Selection Current Limit Common Mode Input Range Input Protection Figure 14: Overvoltage Protection Power Supply Protection Stability External Components Cautions Package Options Package Style DQ
