Datasheet AD8229 (Analog Devices) - 7
| 制造商 | Analog Devices |
| 描述 | 1 nV/√Hz Low Noise 210°C Instrumentation Amplifier |
| 页数 / 页 | 24 / 7 — Data Sheet. AD8229. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN. … |
| 修订版 | B |
| 文件格式/大小 | PDF / 941 Kb |
| 文件语言 | 英语 |
Data Sheet. AD8229. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN. +VS. VOUT. REF. +IN. –VS. TOP VIEW. (Not to Scale)
该数据表的模型线
文件文字版本

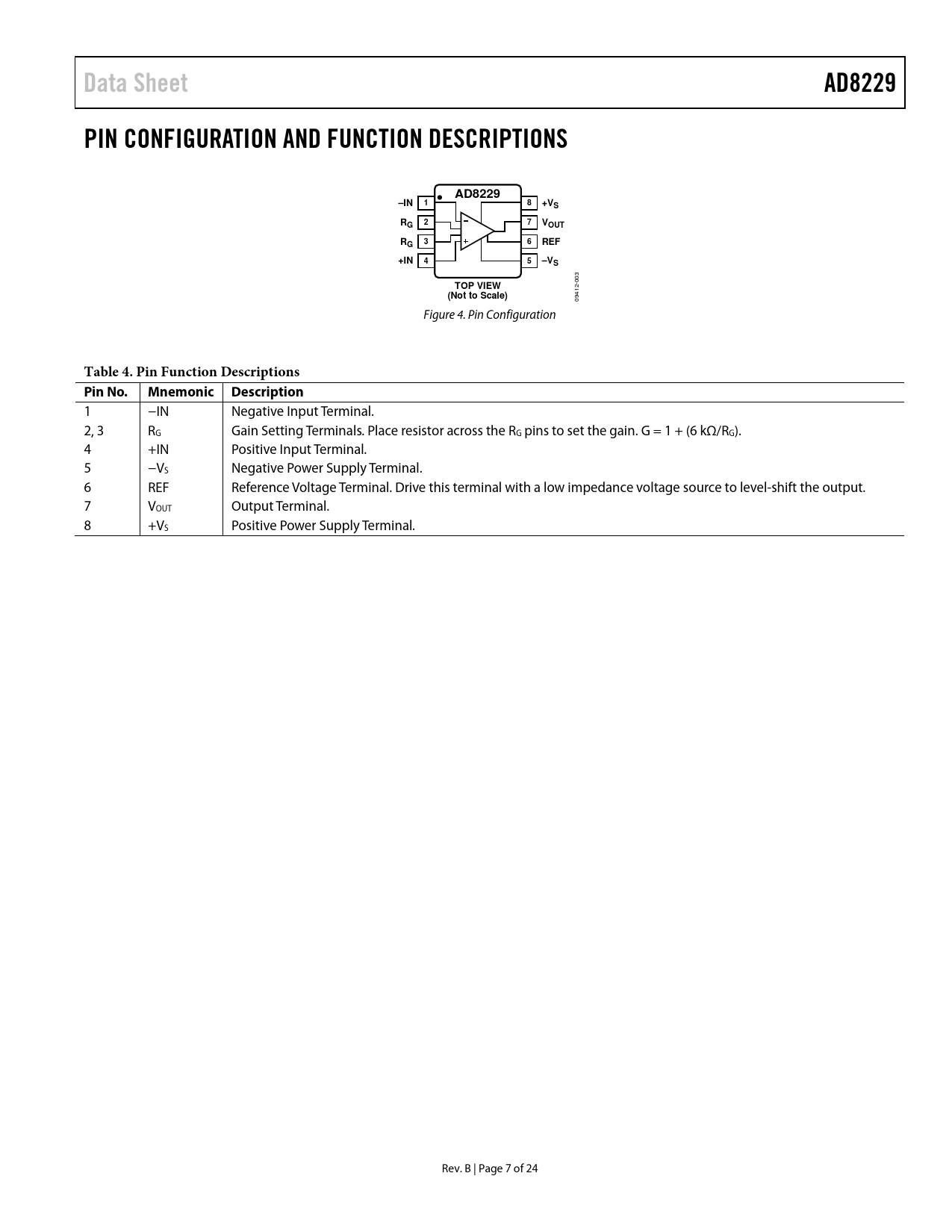

Data Sheet AD8229 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS AD8229 –IN 1 8 +VS RG 2 7 VOUT RG 3 6 REF +IN 4 5 –VS
003
TOP VIEW (Not to Scale)
09412- Figure 4. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 −IN Negative Input Terminal. 2, 3 RG Gain Setting Terminals. Place resistor across the RG pins to set the gain. G = 1 + (6 kΩ/RG). 4 +IN Positive Input Terminal. 5 −VS Negative Power Supply Terminal. 6 REF Reference Voltage Terminal. Drive this terminal with a low impedance voltage source to level-shift the output. 7 VOUT Output Terminal. 8 +VS Positive Power Supply Terminal. Rev. B | Page 7 of 24 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings Predicted Lifetime vs. Operating Temperature Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Architecture Gain Selection RG Power Dissipation Reference Terminal Input Voltage Range Layout Common-Mode Rejection Ratio over Frequency Power Supplies Reference Pin Input Bias Current Return Path Input Protection Input Voltages Beyond the Rails Large Differential Input Voltage at High Gain IMAX Radio Frequency Interference (RFI) Calculating the Noise of the Input Stage Source Resistance Noise Voltage Noise of the Instrumentation Amplifier Current Noise of the Instrumentation Amplifier Total Noise Density Calculation Outline Dimensions Ordering Guide
