Datasheet AD8290 (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | G = 50, CMOS Sensor Amplifier with Current Excitation |
| 页数 / 页 | 20 / 4 — AD8290. Parameter Test. Conditions. Min. Typ. Max. Unit |
| 修订版 | B |
| 文件格式/大小 | PDF / 543 Kb |
| 文件语言 | 英语 |
AD8290. Parameter Test. Conditions. Min. Typ. Max. Unit
该数据表的模型线
文件文字版本

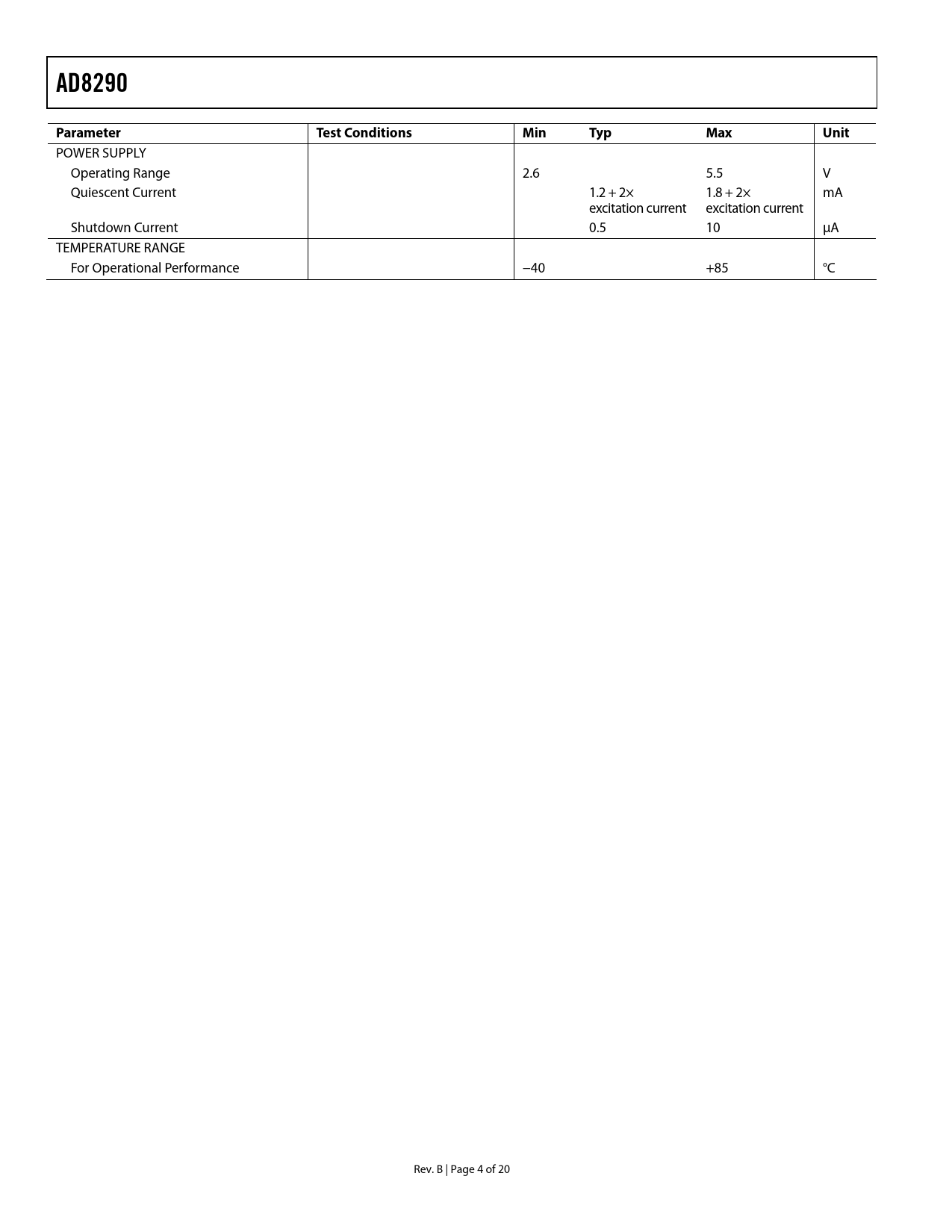

AD8290 Parameter Test Conditions Min Typ Max Unit
POWER SUPPLY Operating Range 2.6 5.5 V Quiescent Current 1.2 + 2× 1.8 + 2× mA excitation current excitation current Shutdown Current 0.5 10 μA TEMPERATURE RANGE For Operational Performance −40 +85 °C Rev. B | Page 4 of 20 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION AMPLIFIER HIGH POWER SUPPLY REJECTION (PSR) AND COMMON-MODE REJECTION (CMR) 1/f NOISE CORRECTION CURRENT SOURCE APPLICATIONS INFORMATION TYPICAL CONNECTIONS CURRENT EXCITATION ENABLE/DISABLE FUNCTION OUTPUT FILTERING CLOCK FEEDTHROUGH MAXIMIZING PERFORMANCE THROUGH PROPER LAYOUT POWER SUPPLY BYPASSING DUAL-SUPPLY OPERATION PRESSURE SENSOR BRIDGE APPLICATION TEMPERATURE SENSOR APPLICATION ADC/MICROCONTROLLER OUTLINE DIMENSIONS ORDERING GUIDE
