OpenRTK330 GNSS / RTK INERTIAL NAVIGATION SYSTEM. Applications. Features
该数据表的模型线
文件文字版本

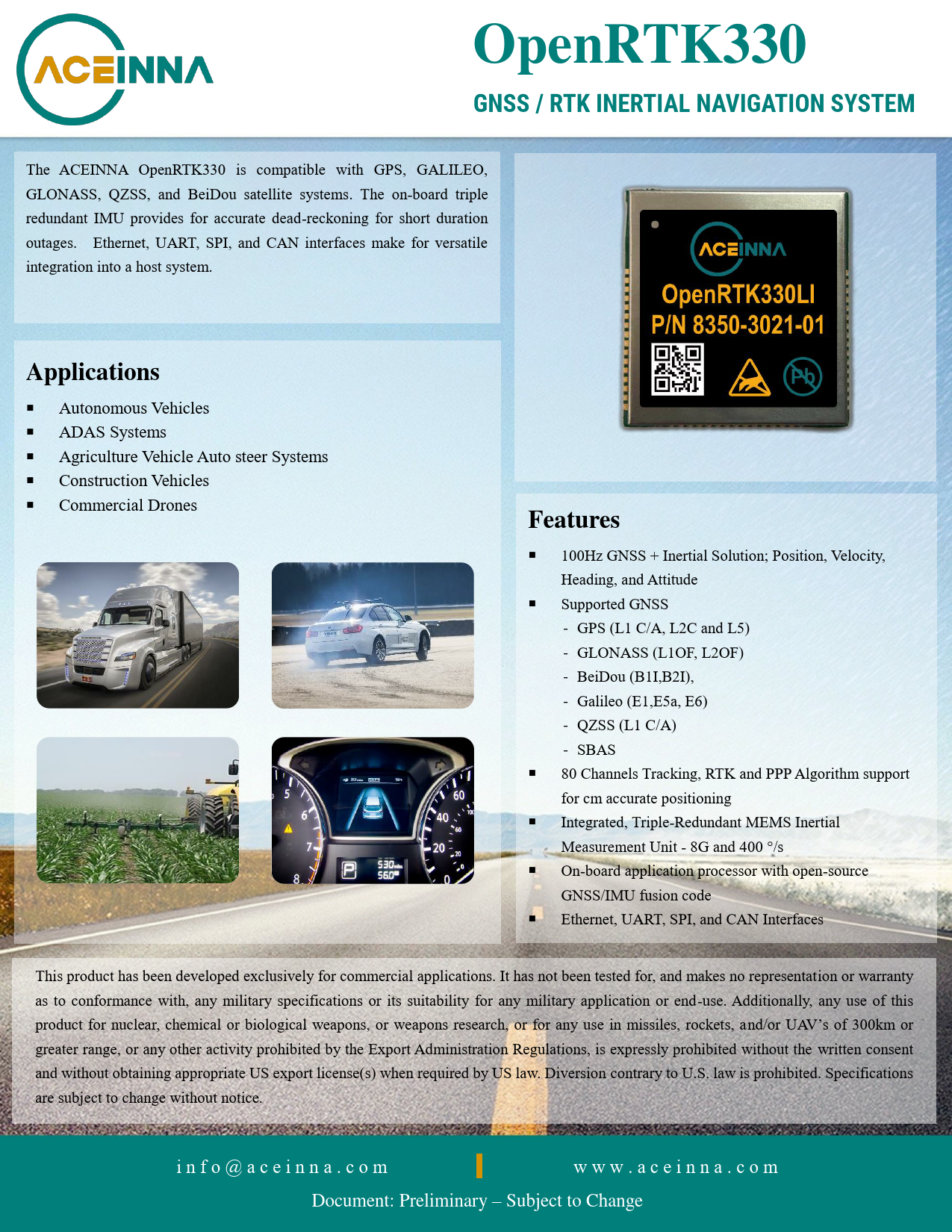

OpenRTK330 GNSS / RTK INERTIAL NAVIGATION SYSTEM
The ACEINNA OpenRTK330 is compatible with GPS, GALILEO, GLONASS, QZSS, and BeiDou satellite systems. The on-board triple redundant IMU provides for accurate dead-reckoning for short duration outages. Ethernet, UART, SPI, and CAN interfaces make for versatile integration into a host system.
Applications
Autonomous Vehicles ADAS Systems Agriculture Vehicle Auto steer Systems Construction Vehicles Commercial Drones
Features
100Hz GNSS + Inertial Solution; Position, Velocity, Heading, and Attitude Supported GNSS - GPS (L1 C/A, L2C and L5) - GLONASS (L1OF, L2OF) - BeiDou (B1I,B2I), - Galileo (E1,E5a, E6) - QZSS (L1 C/A) - SBAS 80 Channels Tracking, RTK and PPP Algorithm support for cm accurate positioning Integrated, Triple-Redundant MEMS Inertial Measurement Unit - 8G and 400 °/s On-board application processor with open-source GNSS/IMU fusion code Ethernet, UART, SPI, and CAN Interfaces This product has been developed exclusively for commercial applications. It has not been tested for, and makes no representation or warranty as to conformance with, any military specifications or its suitability for any military application or end-use. Additionally, any use of this product for nuclear, chemical or biological weapons, or weapons research, or for any use in missiles, rockets, and/or UAV’s of 300km or greater range, or any other activity prohibited by the Export Administration Regulations, is expressly prohibited without the written consent and without obtaining appropriate US export license(s) when required by US law. Diversion contrary to U.S. law is prohibited. Specifications are subject to change without notice. i n f o @ a c e i n n a . c o m w w w . a c e i n n a . c o m Document: Preliminary – Subject to Change
The ACEINNA OpenRTK330 is compatible with GPS, GALILEO, GLONASS, QZSS, and BeiDou satellite systems. The on-board triple redundant IMU provides for accurate dead-reckoning for short duration outages. Ethernet, UART, SPI, and CAN interfaces make for versatile integration into a host system.
Applications
Autonomous Vehicles ADAS Systems Agriculture Vehicle Auto steer Systems Construction Vehicles Commercial Drones
Features
100Hz GNSS + Inertial Solution; Position, Velocity, Heading, and Attitude Supported GNSS - GPS (L1 C/A, L2C and L5) - GLONASS (L1OF, L2OF) - BeiDou (B1I,B2I), - Galileo (E1,E5a, E6) - QZSS (L1 C/A) - SBAS 80 Channels Tracking, RTK and PPP Algorithm support for cm accurate positioning Integrated, Triple-Redundant MEMS Inertial Measurement Unit - 8G and 400 °/s On-board application processor with open-source GNSS/IMU fusion code Ethernet, UART, SPI, and CAN Interfaces This product has been developed exclusively for commercial applications. It has not been tested for, and makes no representation or warranty as to conformance with, any military specifications or its suitability for any military application or end-use. Additionally, any use of this product for nuclear, chemical or biological weapons, or weapons research, or for any use in missiles, rockets, and/or UAV’s of 300km or greater range, or any other activity prohibited by the Export Administration Regulations, is expressly prohibited without the written consent and without obtaining appropriate US export license(s) when required by US law. Diversion contrary to U.S. law is prohibited. Specifications are subject to change without notice. i n f o @ a c e i n n a . c o m w w w . a c e i n n a . c o m Document: Preliminary – Subject to Change
