Datasheet MAX6012, MAX6021, MAX6025, MAX6030, MAX6041, MAX6045, MAX6050 (Maxim) - 8
| 制造商 | Maxim |
| 描述 | Precision, Low-Power, Low-Dropout, SOT23-3 Voltage References |
| 页数 / 页 | 15 / 8 — Electrical Characteristics—MAX6050. PARAMETER. SYMBOL. CONDITIONS. MIN. … |
| 文件格式/大小 | PDF / 2.0 Mb |
| 文件语言 | 英语 |
Electrical Characteristics—MAX6050. PARAMETER. SYMBOL. CONDITIONS. MIN. TYP. MAX. UNITS. OUTPUT. DYNAMIC. INPUT. Note 1:. Note 2:. Note 3:. Note 4:
该数据表的模型线
- MAX6012A MAX6012AEUR MAX6012AEUR+ MAX6012AEUR+T MAX6012AEUR-T MAX6012AEUR-TG05 MAX6012AEUR-TG077 MAX6012B MAX6012BC/D.C80145 MAX6012BEUR MAX6012BEUR+ MAX6012BEUR+T
- MAX6021A MAX6021AEUR MAX6021AEUR+ MAX6021AEUR+T MAX6021AEUR-T MAX6021AEUR-TG077 MAX6021B MAX6021BEUR+ MAX6021BEUR+T MAX6021BEUR-T10 MAX6021BEUR.TG097
- MAX6025A, MAX6025AEUR MAX6025AEUR+ MAX6025AEUR+T MAX6025AEUR-T MAX6025B MAX6025BEUR+ MAX6025BEUR+T MAX6025BEUR-T
文件文字版本
MAX6012/6021/6025/ Precision, Low-Power, Low-Dropout, 6030/6041/6045/6050 SOT23-3 Voltage References

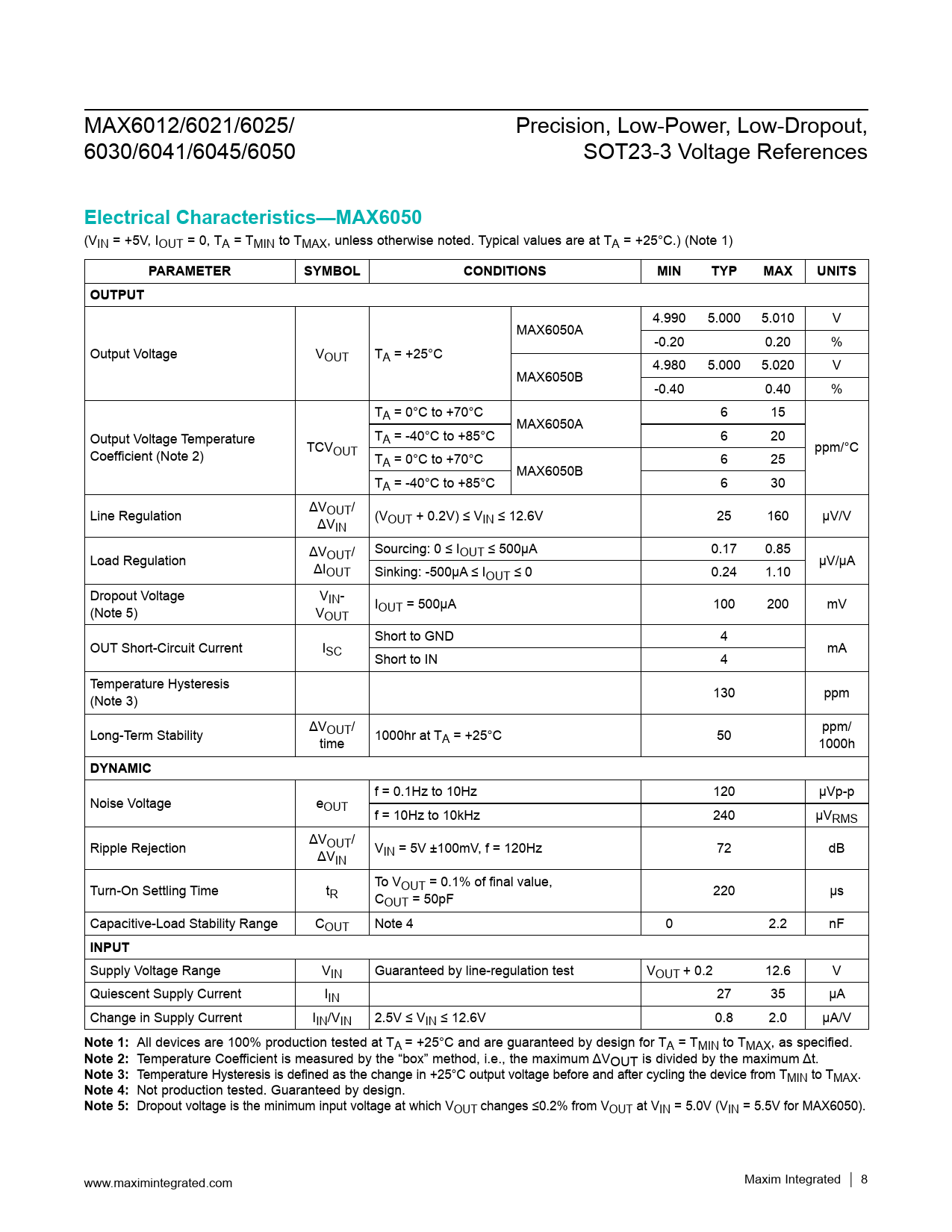

Electrical Characteristics—MAX6050
(VIN = +5V, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS OUTPUT
4.990 5.000 5.010 V MAX6050A -0.20 0.20 % Output Voltage VOUT TA = +25°C 4.980 5.000 5.020 V MAX6050B -0.40 0.40 % TA = 0°C to +70°C 6 15 MAX6050A Output Voltage Temperature TA = -40°C to +85°C 6 20 Coefficient (Note 2) TCVOUT ppm/°C TA = 0°C to +70°C 6 25 MAX6050B TA = -40°C to +85°C 6 30 Line Regulation ΔVOUT/ ΔV (VOUT + 0.2V) ≤ VIN ≤ 12.6V 25 160 μV/V IN Sourcing: 0 ≤ I Load Regulation ΔVOUT/ OUT ≤ 500μA 0.17 0.85 ΔI μV/μA OUT Sinking: -500μA ≤ IOUT ≤ 0 0.24 1.10 Dropout Voltage VIN- (Note 5) V IOUT = 500μA 100 200 mV OUT Short to GND 4 OUT Short-Circuit Current ISC mA Short to IN 4 Temperature Hysteresis (Note 3) 130 ppm Long-Term Stability ΔVOUT/ time 1000hr at TA = +25°C 50 ppm/ 1000h
DYNAMIC
f = 0.1Hz to 10Hz 120 μVp-p Noise Voltage eOUT f = 10Hz to 10kHz 240 μVRMS Ripple Rejection ΔVOUT/ ΔV VIN = 5V ±100mV, f = 120Hz 72 dB IN Turn-On Settling Time t To VOUT = 0.1% of final value, R COUT = 50pF 220 μs Capacitive-Load Stability Range COUT Note 4 0 2.2 nF
INPUT
Supply Voltage Range VIN Guaranteed by line-regulation test VOUT + 0.2 12.6 V Quiescent Supply Current IIN 27 35 μA Change in Supply Current IIN/VIN 2.5V ≤ VIN ≤ 12.6V 0.8 2.0 μA/V
Note 1:
All devices are 100% production tested at TA = +25°C and are guaranteed by design for TA = TMIN to TMAX, as specified.
Note 2:
Temperature Coefficient is measured by the “box” method, i.e., the maximum ΔVOUT is divided by the maximum Δt.
Note 3:
Temperature Hysteresis is defined as the change in +25°C output voltage before and after cycling the device from TMIN to TMAX.
Note 4:
Not production tested. Guaranteed by design.
Note 5:
Dropout voltage is the minimum input voltage at which VOUT changes ≤0.2% from VOUT at VIN = 5.0V (VIN = 5.5V for MAX6050). www.maximintegrated.com Maxim Integrated │ 8
