AOZ5311NQI. Electrical Characteristics(4). Symbol. Parameter. Conditions. Min. Typ. Max. Units. THERMAL NOTIFICATION(5). Notes:
该数据表的模型线
文件文字版本

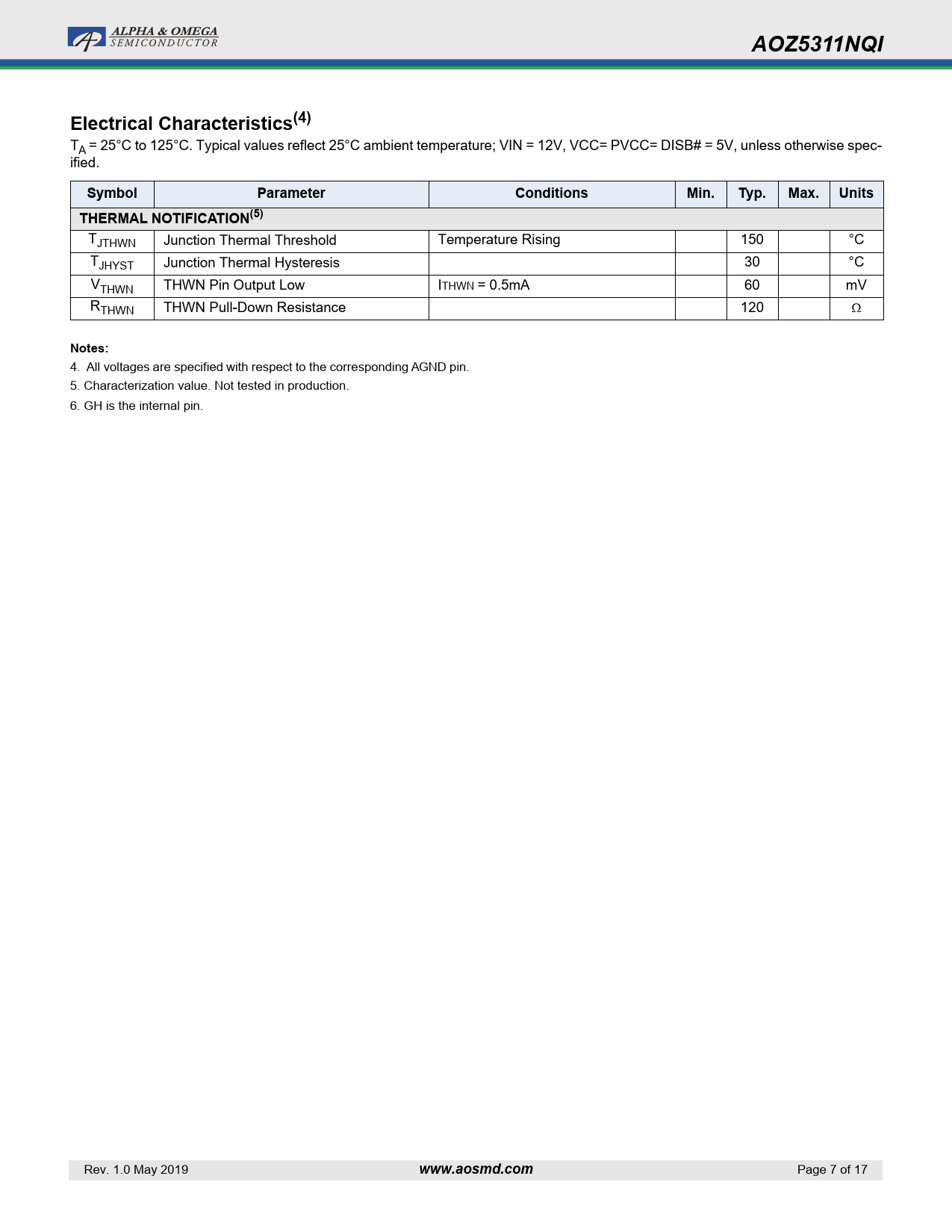

AOZ5311NQI Electrical Characteristics(4)
TA = 25°C to 125°C. Typical values reflect 25°C ambient temperature; VIN = 12V, VCC= PVCC= DISB# = 5V, unless otherwise spec- ified.
Symbol Parameter Conditions Min. Typ. Max. Units THERMAL NOTIFICATION(5)
TJTHWN Junction Thermal Threshold Temperature Rising 150 °C TJHYST Junction Thermal Hysteresis 30 °C VTHWN THWN Pin Output Low ITHWN = 0.5mA 60 mV RTHWN THWN Pull-Down Resistance 120
Notes:
4. All voltages are specified with respect to the corresponding AGND pin. 5. Characterization value. Not tested in production. 6. GH is the internal pin. Rev. 1.0 May 2019
www.aosmd.com
Page 7 of 17
