Datasheet AOZ5312UQI (Alpha & Omega) - 8
| 制造商 | Alpha & Omega |
| 描述 | High-Current, High-Performance DrMOS Power Module |
| 页数 / 页 | 18 / 8 — AOZ5312UQI. Logic Table and Timing Diagrams. Table 1: Input Control Truth … |
| 文件格式/大小 | PDF / 2.8 Mb |
| 文件语言 | 英语 |

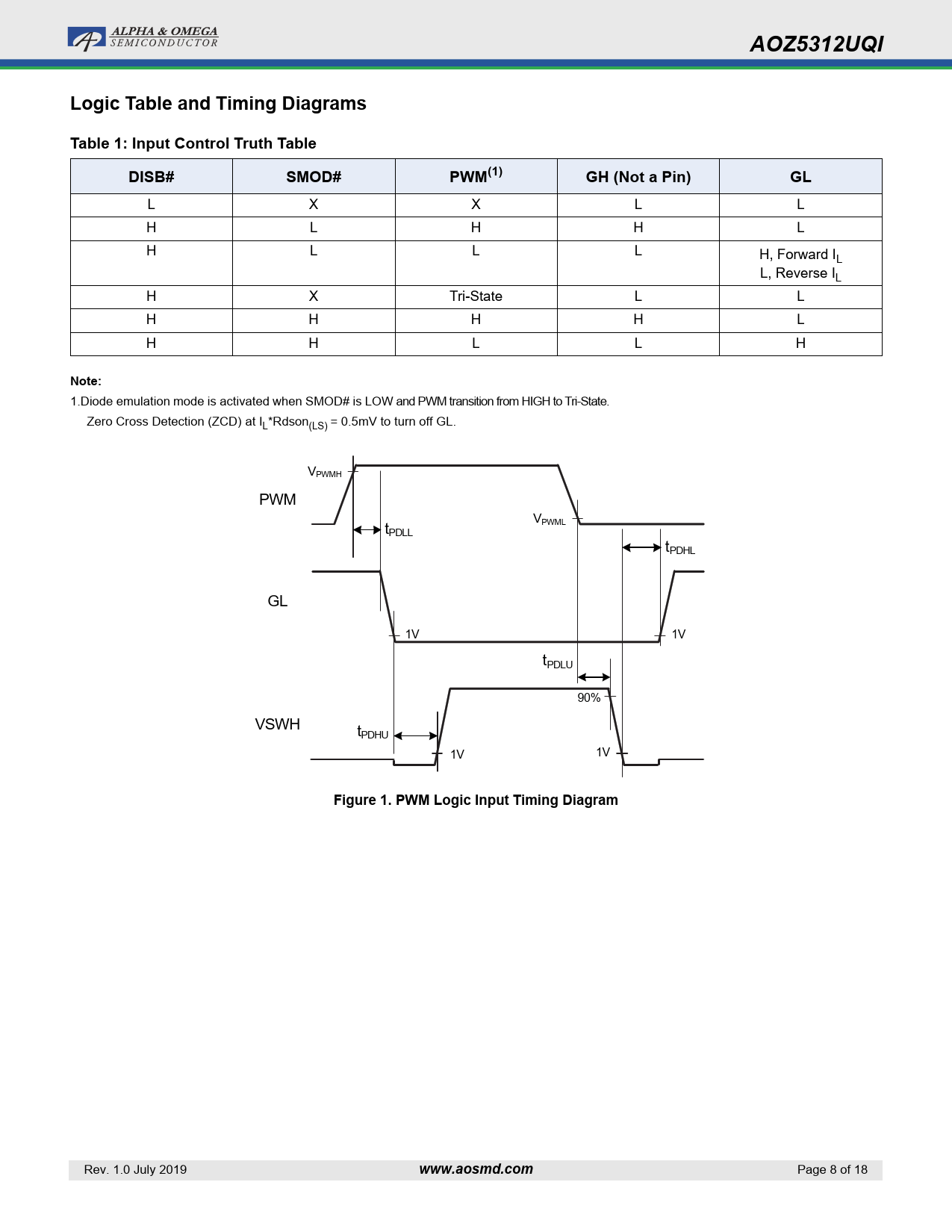

AOZ5312UQI. Logic Table and Timing Diagrams. Table 1: Input Control Truth Table. DISB#. SMOD#. PWM(1). GH (Not a Pin). Note:
该数据表的模型线
文件文字版本
AOZ5312UQI Logic Table and Timing Diagrams Table 1: Input Control Truth Table DISB# SMOD# PWM(1) GH (Not a Pin) GL
L X X L L H L H H L H L L L H, Forward IL L, Reverse IL H X Tri-State L L H H H H L H H L L H
Note:
1.Diode emulation mode is activated when SMOD# is LOW and PWM transition from HIGH to Tri-State. Zero Cross Detection (ZCD) at IL*Rdson(LS) = 0.5mV to turn off GL. VPWMH PWM VPWML tPDLL tPDHL GL 1V 1V tPDLU 90% VSWH tPDHU 1V 1V
Figure 1. PWM Logic Input Timing Diagram
Rev. 1.0 July 2019
www.aosmd.com
Page 8 of 18
L X X L L H L H H L H L L L H, Forward IL L, Reverse IL H X Tri-State L L H H H H L H H L L H
Note:
1.Diode emulation mode is activated when SMOD# is LOW and PWM transition from HIGH to Tri-State. Zero Cross Detection (ZCD) at IL*Rdson(LS) = 0.5mV to turn off GL. VPWMH PWM VPWML tPDLL tPDHL GL 1V 1V tPDLU 90% VSWH tPDHU 1V 1V
Figure 1. PWM Logic Input Timing Diagram
