| 制造商 | Alpha & Omega |
| 描述 | High-Current, High-Performance DrMOS Power Module |
| 页数 / 页 | 17 / 5 — AOZ5317UQI. Absolute Maximum Ratings. Recommended Operating Conditions. … |
| 文件格式/大小 | PDF / 2.4 Mb |
| 文件语言 | 英语 |
AOZ5317UQI. Absolute Maximum Ratings. Recommended Operating Conditions. Parameter. Rating. Notes:. www.aosmd.com
该数据表的模型线
文件文字版本

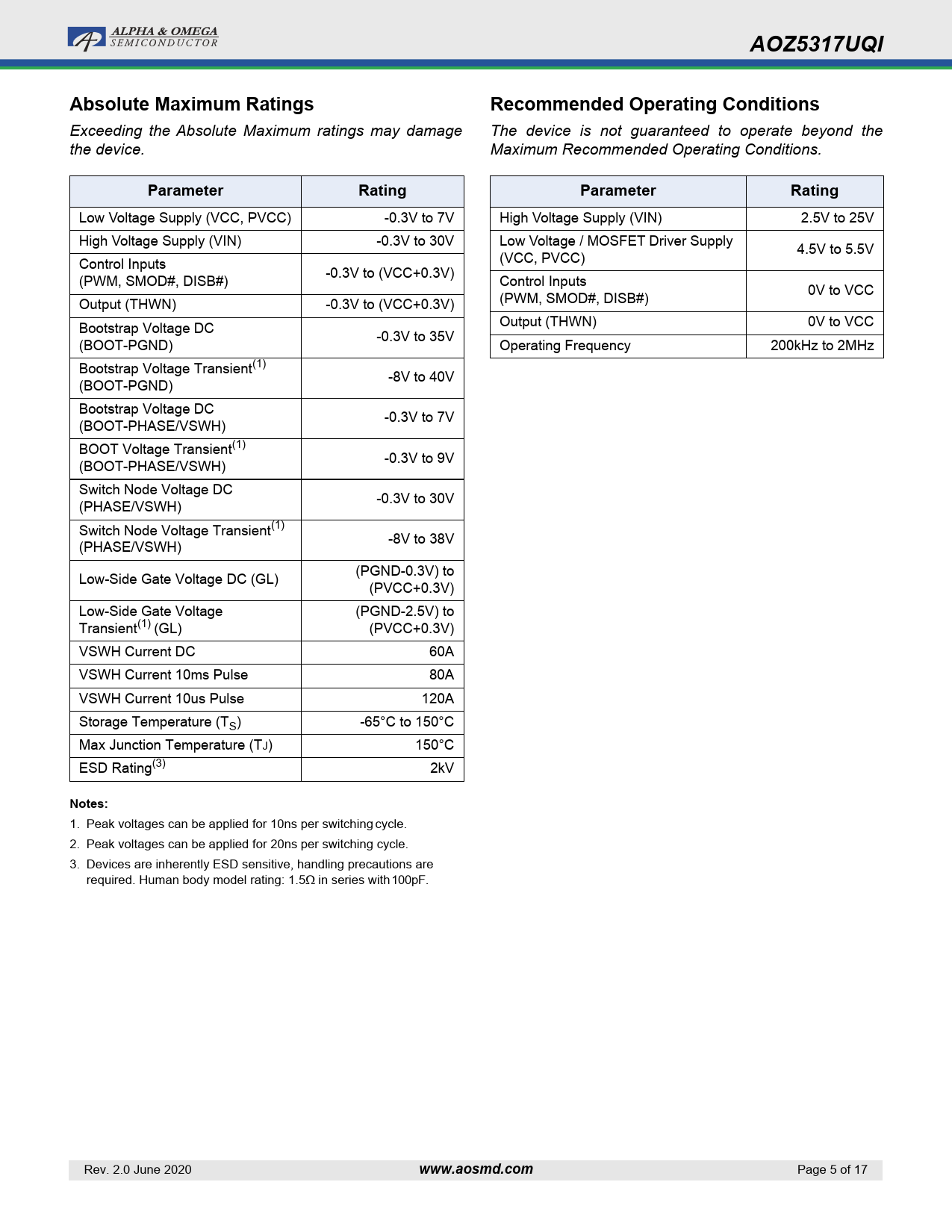

AOZ5317UQI Absolute Maximum Ratings Recommended Operating Conditions
Exceeding the Absolute Maximum ratings may damage The device is not guaranteed to operate beyond the the device. Maximum Recommended Operating Conditions.
Parameter Rating Parameter Rating
Low Voltage Supply (VCC, PVCC) -0.3V to 7V High Voltage Supply (VIN) 2.5V to 25V High Voltage Supply (VIN) -0.3V to 30V Low Voltage / MOSFET Driver Supply 4.5V to 5.5V Control Inputs (VCC, PVCC) -0.3V to (VCC+0.3V) (PWM, SMOD#, DISB#) Control Inputs 0V to VCC Output (THWN) -0.3V to (VCC+0.3V) (PWM, SMOD#, DISB#) Bootstrap Voltage DC Output (THWN) 0V to VCC -0.3V to 35V (BOOT-PGND) Operating Frequency 200kHz to 2MHz Bootstrap Voltage Transient(1) -8V to 40V (BOOT-PGND) Bootstrap Voltage DC -0.3V to 7V (BOOT-PHASE/VSWH) BOOT Voltage Transient(1) -0.3V to 9V (BOOT-PHASE/VSWH) Switch Node Voltage DC -0.3V to 30V (PHASE/VSWH) Switch Node Voltage Transient(1) -8V to 38V (PHASE/VSWH) (PGND-0.3V) to Low-Side Gate Voltage DC (GL) (PVCC+0.3V) Low-Side Gate Voltage (PGND-2.5V) to Transient(1) (GL) (PVCC+0.3V) VSWH Current DC 60A VSWH Current 10ms Pulse 80A VSWH Current 10us Pulse 120A Storage Temperature (TS) -65°C to 150°C Max Junction Temperature (TJ) 150°C ESD Rating(3) 2kV
Notes:
1. Peak voltages can be applied for 10ns per switching cycle. 2. Peak voltages can be applied for 20ns per switching cycle. 3. Devices are inherently ESD sensitive, handling precautions are required. Human body model rating: 1.5 in series with 100pF. Rev. 2.0 June 2020
www.aosmd.com
Page 5 of 17
