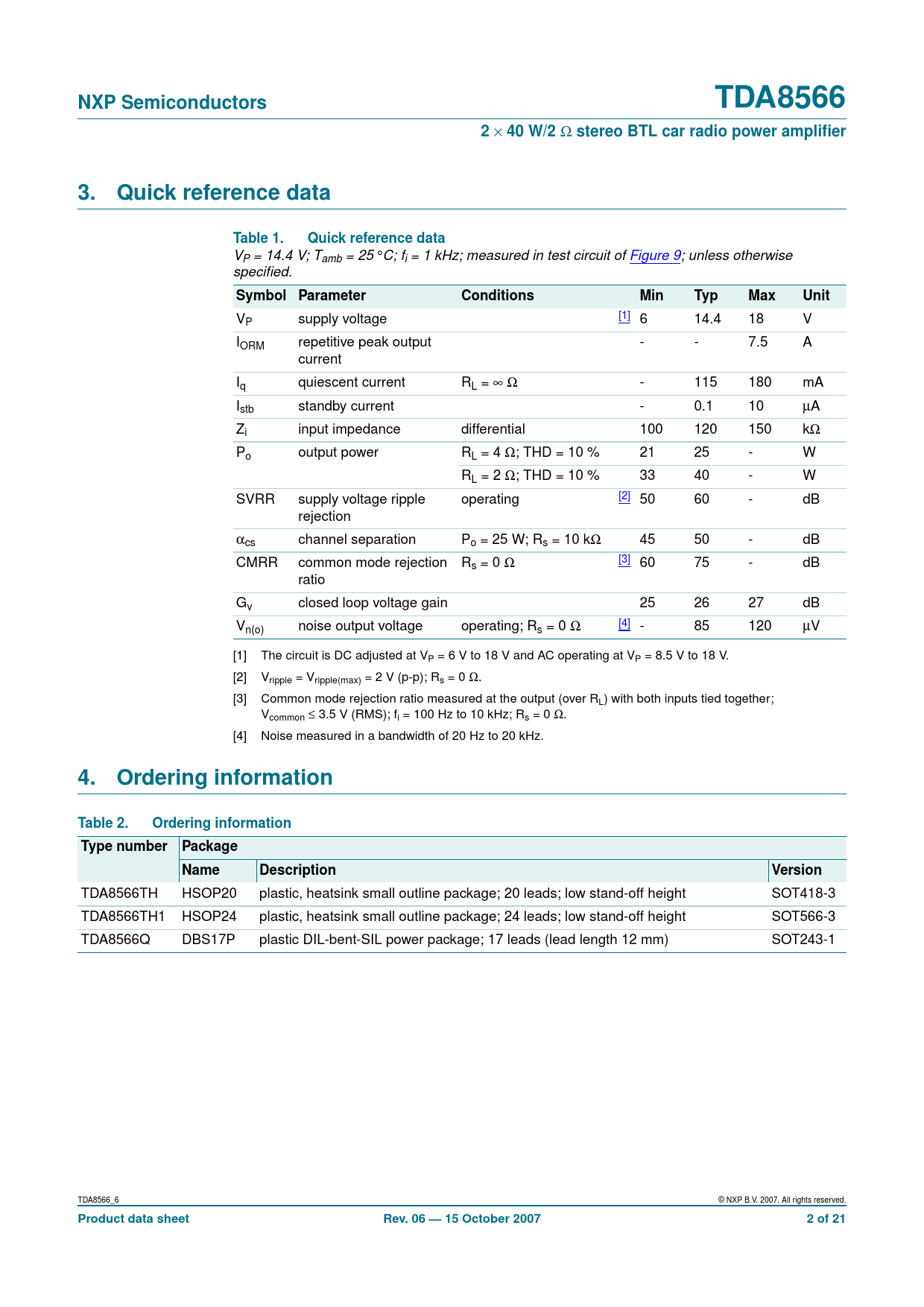

NXP Semiconductors TDA8566 2
×
40 W/2
Ω
stereo BTL car radio power amplifier 3. Quick reference data Table 1. Quick reference data
VP = 14.4 V; Tamb = 25 °C; fi = 1 kHz; measured in test circuit of Figure 9; unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit
VP supply voltage [1] 6 14.4 18 V IORM repetitive peak output - - 7.5 A current Iq quiescent current RL = ∞ Ω - 115 180 mA Istb standby current - 0.1 10 µA Zi input impedance differential 100 120 150 kΩ Po output power RL = 4 Ω; THD = 10 % 21 25 - W RL = 2 Ω; THD = 10 % 33 40 - W SVRR supply voltage ripple operating [2] 50 60 - dB rejection αcs channel separation Po = 25 W; Rs = 10 kΩ 45 50 - dB CMRR common mode rejection Rs = 0 Ω [3] 60 75 - dB ratio Gv closed loop voltage gain 25 26 27 dB Vn(o) noise output voltage operating; Rs = 0 Ω [4] - 85 120 µV [1] The circuit is DC adjusted at VP = 6 V to 18 V and AC operating at VP = 8.5 V to 18 V. [2] Vripple = Vripple(max) = 2 V (p-p); Rs = 0 Ω. [3] Common mode rejection ratio measured at the output (over RL) with both inputs tied together; Vcommon ≤ 3.5 V (RMS); fi = 100 Hz to 10 kHz; Rs = 0 Ω. [4] Noise measured in a bandwidth of 20 Hz to 20 kHz.
4. Ordering information Table 2. Ordering information Type number Package Name Description Version
TDA8566TH HSOP20 plastic, heatsink small outline package; 20 leads; low stand-off height SOT418-3 TDA8566TH1 HSOP24 plastic, heatsink small outline package; 24 leads; low stand-off height SOT566-3 TDA8566Q DBS17P plastic DIL-bent-SIL power package; 17 leads (lead length 12 mm) SOT243-1 TDA8566_6 © NXP B.V. 2007. All rights reserved.
Product data sheet Rev. 06 — 15 October 2007 2 of 21
