Datasheet TDA8566 (NXP) - 5
| 制造商 | NXP |
| 描述 | 2 x 40 W/2 ohm stereo BTL car radio power amplifier with differential inputs and diagnostic outputs |
| 页数 / 页 | 21 / 5 — NXP Semiconductors. TDA8566. 40 W/2. stereo BTL car radio power … |
| 文件格式/大小 | PDF / 132 Kb |
| 文件语言 | 英语 |

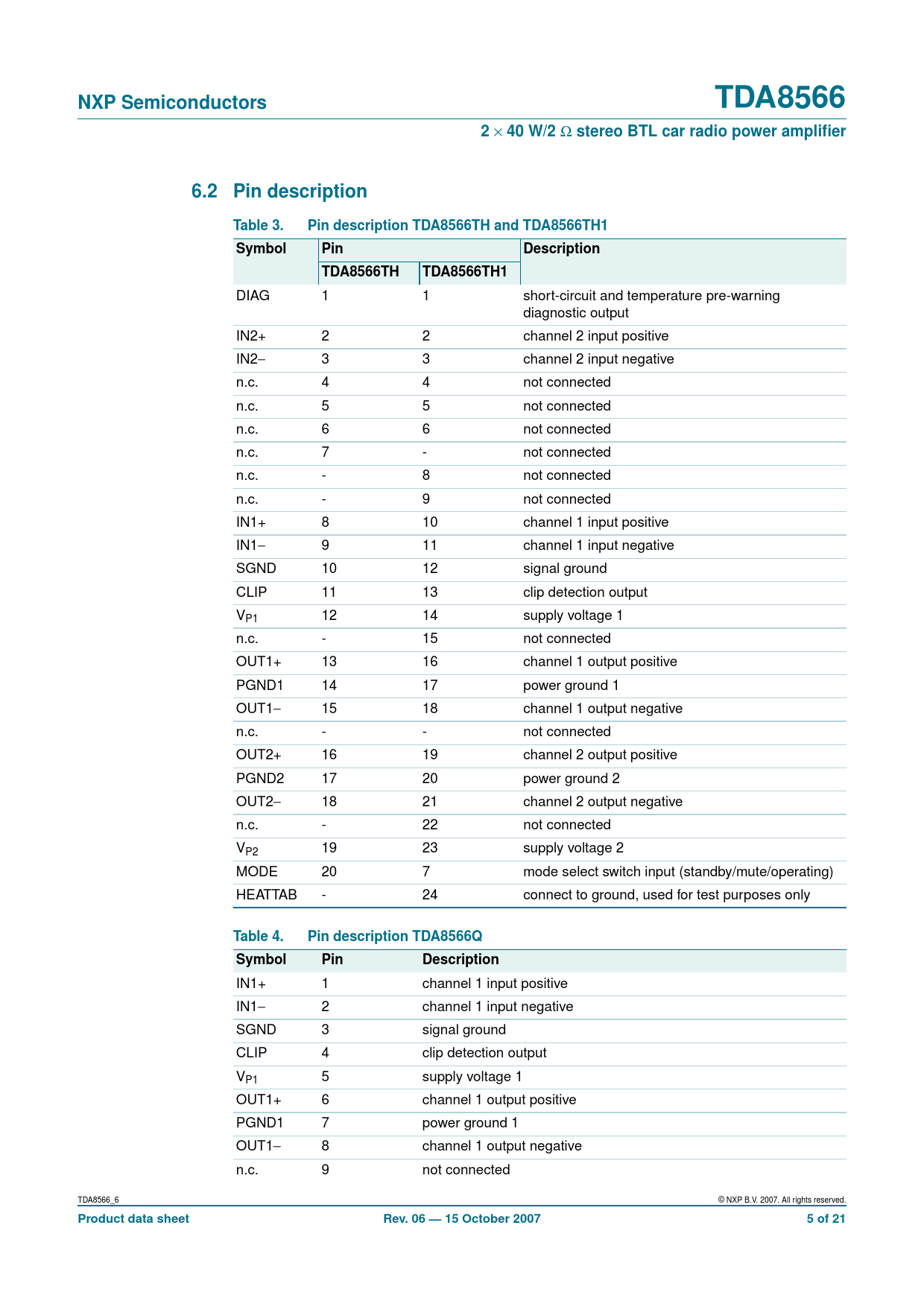

NXP Semiconductors. TDA8566. 40 W/2. stereo BTL car radio power amplifier. 6.2 Pin description. Table 3
该数据表的模型线
TDA8566Q
- TDA8566Q/N1,112 TDA8566Q/N1/S420,1 TDA8566Q/N2,112 TDA8566Q/N2/S438,1 TDA8566Q/N2C,112 TDA8566Q/N2S,112
- TDA8566TH/N2,112 TDA8566TH/N2,118 TDA8566TH/N2,512 TDA8566TH/N2,518 TDA8566TH/N2C,112 TDA8566TH/N2C,118 TDA8566TH/N2S,112 TDA8566TH/N2S,118
TDA8566TH1
文件文字版本
NXP Semiconductors TDA8566 2
×
40 W/2
Ω
stereo BTL car radio power amplifier 6.2 Pin description Table 3. Pin description TDA8566TH and TDA8566TH1 Symbol Pin Description TDA8566TH TDA8566TH1
DIAG 1 1 short-circuit and temperature pre-warning diagnostic output IN2+ 2 2 channel 2 input positive IN2− 3 3 channel 2 input negative n.c. 4 4 not connected n.c. 5 5 not connected n.c. 6 6 not connected n.c. 7 - not connected n.c. - 8 not connected n.c. - 9 not connected IN1+ 8 10 channel 1 input positive IN1− 9 11 channel 1 input negative SGND 10 12 signal ground CLIP 11 13 clip detection output VP1 12 14 supply voltage 1 n.c. - 15 not connected OUT1+ 13 16 channel 1 output positive PGND1 14 17 power ground 1 OUT1− 15 18 channel 1 output negative n.c. - - not connected OUT2+ 16 19 channel 2 output positive PGND2 17 20 power ground 2 OUT2− 18 21 channel 2 output negative n.c. - 22 not connected VP2 19 23 supply voltage 2 MODE 20 7 mode select switch input (standby/mute/operating) HEATTAB - 24 connect to ground, used for test purposes only
Table 4. Pin description TDA8566Q Symbol Pin Description
IN1+ 1 channel 1 input positive IN1− 2 channel 1 input negative SGND 3 signal ground CLIP 4 clip detection output VP1 5 supply voltage 1 OUT1+ 6 channel 1 output positive PGND1 7 power ground 1 OUT1− 8 channel 1 output negative n.c. 9 not connected TDA8566_6 © NXP B.V. 2007. All rights reserved.
Product data sheet Rev. 06 — 15 October 2007 5 of 21
