IR11-21C. Electro-Optical Characteristics (Ta=25. Parameter Symbol. Condition. Min. Typ. Max. Units
该数据表的模型线
文件文字版本

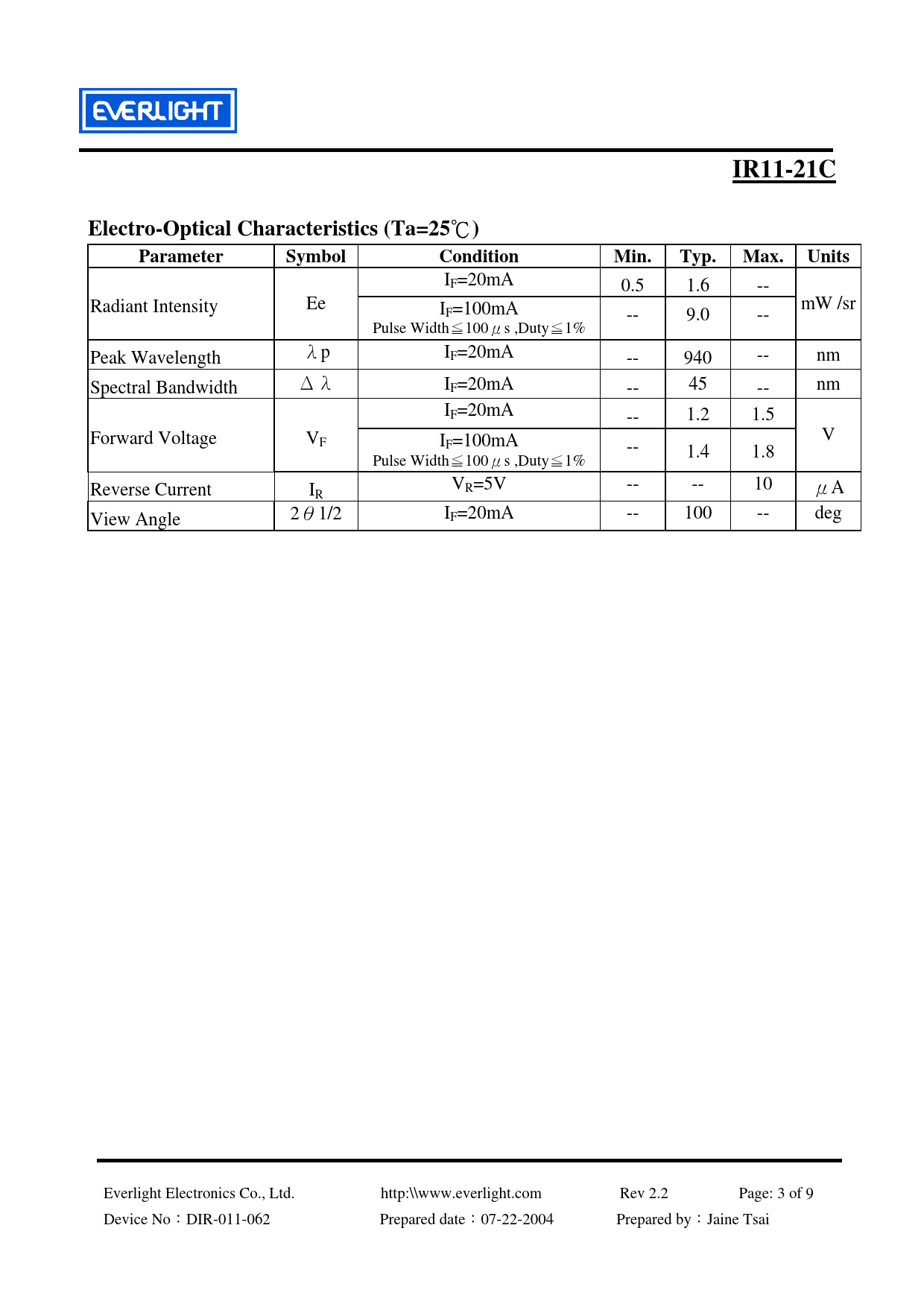

IR11-21C Electro-Optical Characteristics (Ta=25
℃
) Parameter Symbol Condition Min. Typ. Max. Units
IF=20mA 0.5 1.6 -- Radiant Intensity Ee I mW /sr F=100mA -- 9.0 -- Pulse Width≦100μs ,Duty≦1% Peak Wavelength λp IF=20mA -- 940 -- nm Spectral Bandwidth Δλ IF=20mA -- 45 -- nm IF=20mA -- 1.2 1.5 Forward Voltage V V F IF=100mA -- 1.4 1.8 Pulse Width≦100μs ,Duty≦1% Reverse Current IR VR=5V -- -- 10 μA View Angle 2θ1/2 IF=20mA -- 100 -- deg Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2.2 Page: 3 of 9 Device No：DIR-011-062 Prepared date：07-22-2004 Prepared by：Jaine Tsai
℃
) Parameter Symbol Condition Min. Typ. Max. Units
IF=20mA 0.5 1.6 -- Radiant Intensity Ee I mW /sr F=100mA -- 9.0 -- Pulse Width≦100μs ,Duty≦1% Peak Wavelength λp IF=20mA -- 940 -- nm Spectral Bandwidth Δλ IF=20mA -- 45 -- nm IF=20mA -- 1.2 1.5 Forward Voltage V V F IF=100mA -- 1.4 1.8 Pulse Width≦100μs ,Duty≦1% Reverse Current IR VR=5V -- -- 10 μA View Angle 2θ1/2 IF=20mA -- 100 -- deg Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2.2 Page: 3 of 9 Device No：DIR-011-062 Prepared date：07-22-2004 Prepared by：Jaine Tsai
