PD15-22C. Typical Electro-Optical Characteristics Curves
该数据表的模型线
文件文字版本
PD15-22C Typical Electro-Optical Characteristics Curves

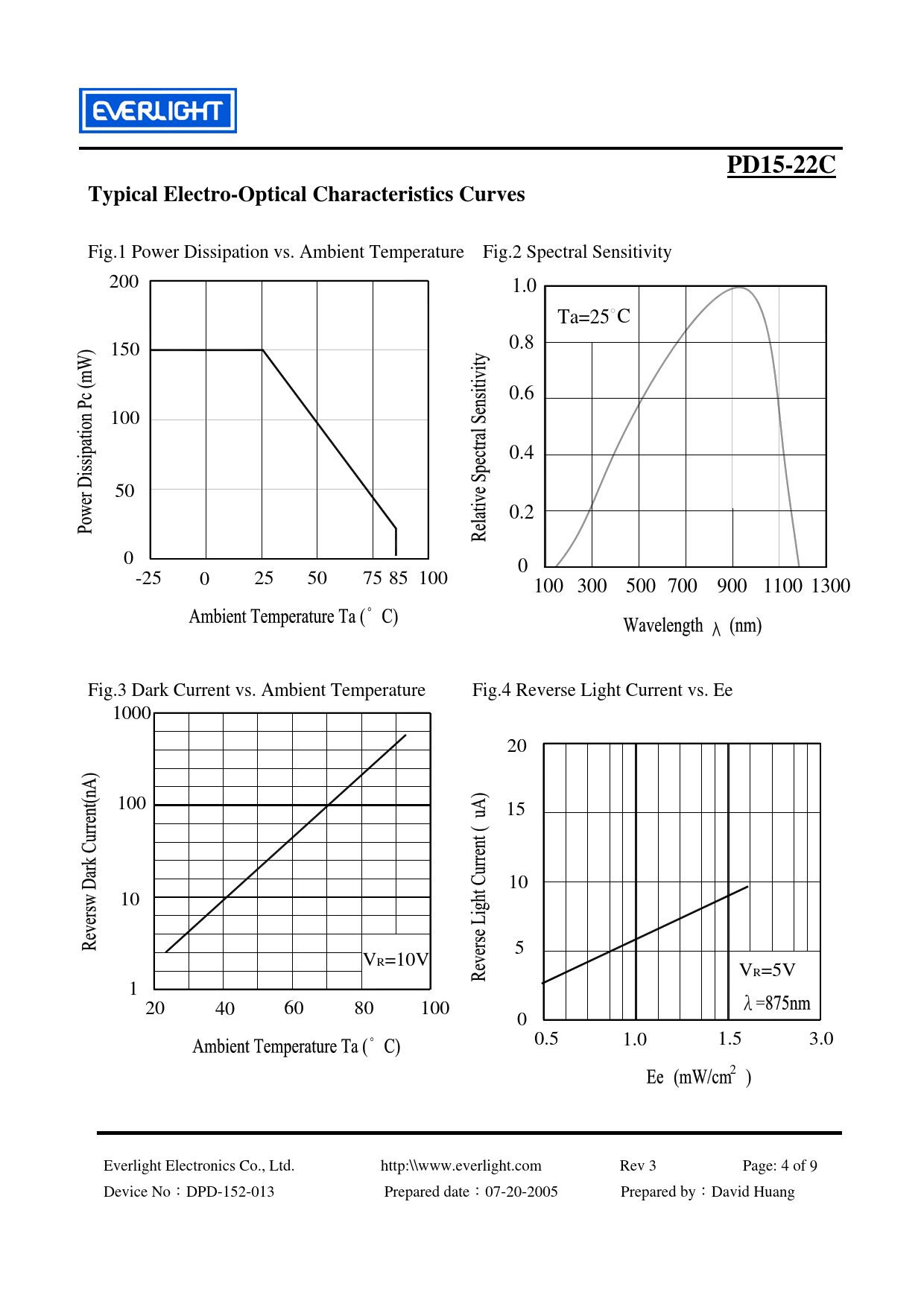

Fig.1 Power Dissipation vs. Ambient Temperature Fig.2 Spectral Sensitivity 200 1.0 Ta=25 C 150 0.8 0.6 100 0.4 50 0.2 0 0 -25 0 25 50 75 85 100 100 300 500 700 900 1100 1300 Fig.3 Dark Current vs. Ambient Temperature Fig.4 Reverse Light Current vs. Ee 1000 20 100 15 10 10 5 VR=10V VR=5V 1 20 40 60 80 100 0 0.5 1.0 1.5 3.0 2 Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 3 Page: 4 of 9 Device No：DPD-152-013 Prepared date：07-20-2005 Prepared by：David Huang
