ALPHA & OMEGA. AOZ8S321UD4-03. Ordering Information. Part Number. Ambient Temperature Range. Package. Environmental
该数据表的模型线
文件文字版本

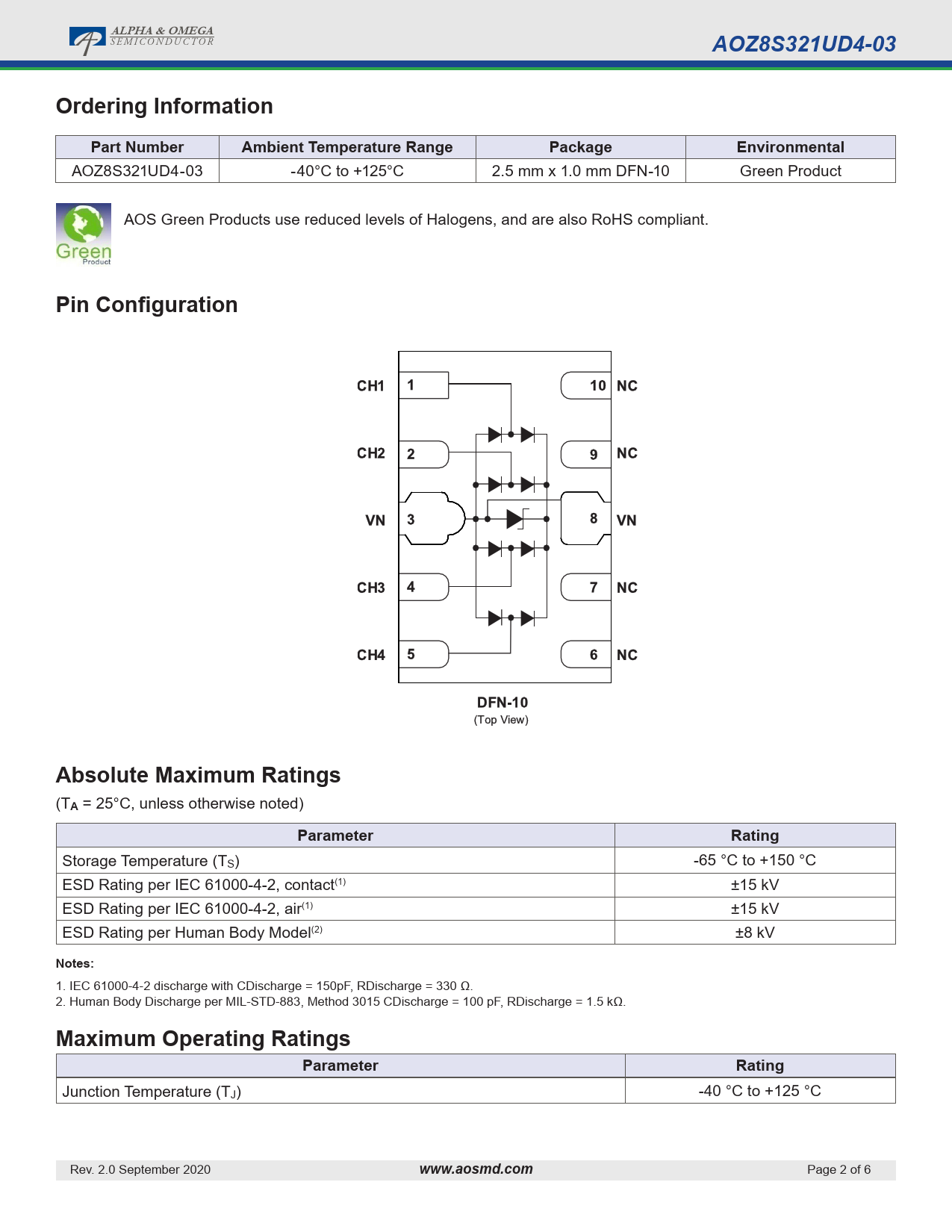

ALPHA & OMEGA
S E M I C O N D U C T O R
AOZ8S321UD4-03 Ordering Information Part Number Ambient Temperature Range Package Environmental
AOZ8S321UD4-03 -40°C to +125°C 2.5 mm x 1.0 mm DFN-10 Green Product AOS Green Products use reduced levels of Halogens, and are also RoHS compliant.
Pin Configuration Absolute Maximum Ratings
(T
A
= 25°C, unless otherwise noted)
Parameter Rating
Storage Temperature (TS) -65 °C to +150 °C ESD Rating per IEC 61000-4-2, contact(1) ±15 kV ESD Rating per IEC 61000-4-2, air(1) ±15 kV ESD Rating per Human Body Model(2) ±8 kV
Notes:
1. IEC 61000-4-2 discharge with CDischarge = 150pF, RDischarge = 330 Ω. 2. Human Body Discharge per MIL-STD-883, Method 3015 CDischarge = 100 pF, RDischarge = 1.5 kΩ.
Maximum Operating Ratings Parameter Rating
Junction Temperature (TJ) -40 °C to +125 °C Rev. 2.0 September 2020
www.aosmd.com
Page 2 of 6
