Datasheet MLX75027 (Melexis) - 6
| 制造商 | Melexis |
| 描述 | VGA Time-of-Flight Sensor |
| 页数 / 页 | 67 / 6 — MLX75027 VGA Time-of-Flight Sensor. Ordering Information |
| 文件格式/大小 | PDF / 3.2 Mb |
| 文件语言 | 英语 |
MLX75027 VGA Time-of-Flight Sensor. Ordering Information
该数据表的模型线
文件文字版本
MLX75027 VGA Time-of-Flight Sensor
PRELIMINARY DATASHEET
Ordering Information

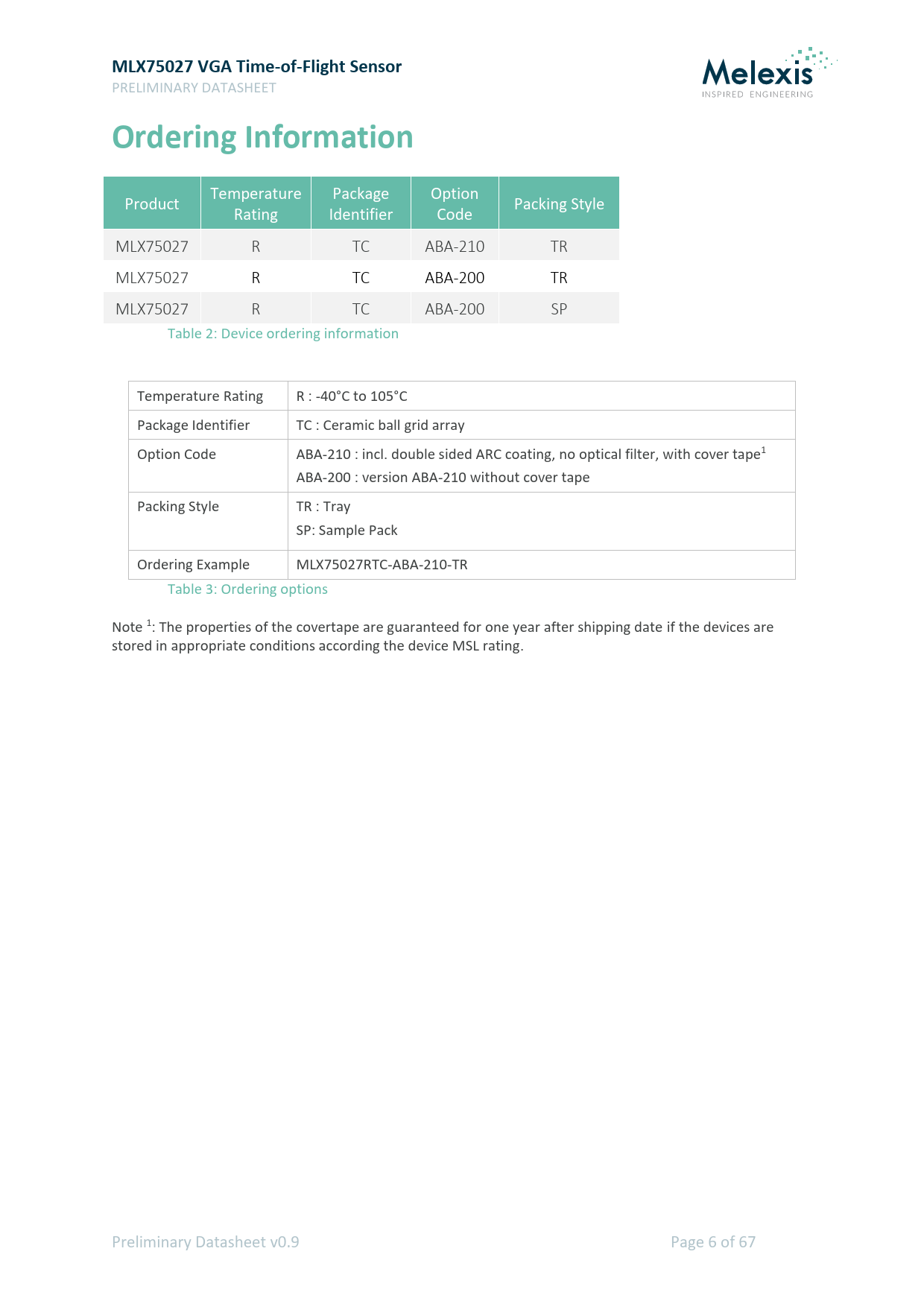

Temperature Package Option Product Packing Style Rating Identifier Code MLX75027 R TC ABA-210 TR MLX75027 R TC ABA-200 TR MLX75027 R TC ABA-200 SP Table 2: Device ordering information Temperature Rating R : -40°C to 105°C Package Identifier TC : Ceramic ball grid array Option Code ABA-210 : incl. double sided ARC coating, no optical filter, with cover tape1 ABA-200 : version ABA-210 without cover tape Packing Style TR : Tray SP: Sample Pack Ordering Example MLX75027RTC-ABA-210-TR Table 3: Ordering options Note 1: The properties of the covertape are guaranteed for one year after shipping date if the devices are stored in appropriate conditions according the device MSL rating. Preliminary Datasheet v0.9 Page 6 of 67 Document Outline Table of Contents Document Revision History Ordering Information 1. System Architecture 2. Sensor Block Diagram 3. Electrical Specifications 3.1. Absolute Maximum Ratings 3.2. Typical Operating Conditions 3.3. Video Interface 3.3.1. MIPI DC specification 3.3.2. MIPI AC specification 3.4. Power Consumption 3.5. Maximum Distance Frame Rate 3.6. Decoupling Recommendations 3.7. Power-up Sequence 3.8. Input Clock Requirements 3.9. I2C Specifications 4. Optical Characteristics 4.1. VGA Pixel Array Configuration 4.2. Pixel & Image Array Characteristics 4.3. CRA (Chief Ray Angle) 4.4. MTF (Modulation Transfer Function ) 4.5. Application Lens Design Recommendations 5. Communication Interface(s) 5.1. I2C (Inter-Integrated Circuit) 5.1.1. I2C Timing Sequence 5.1.2. Single I2C Read 5.1.3. Sequential I2C Read 5.1.4. Single I2C Write 5.1.5. Sequential I2C Write 5.1.6. I2C Slave Address 5.2. MIPI Alliance CSI-2 Description 5.2.1. Packet Structure 5.2.2. Data Format RAW12 5.2.2.1. Data Format in 4 Lane MIPI Configuration 5.2.2.2. Data Format in 2 Lane MIPI Configuration 6. Start-up Sequence 6.1. Initialization Process 6.2. Initialization Register Map 7. Register Settings 7.1. Video Output Configuration 7.2. Modes of Operation 7.3. Data Output Modes 7.4. HMAX & Frame Read-Out Time 7.4.1. PLLSSETUP 7.4.2. PRETIME 7.4.3. RANDNM0 7.5. PARAM_HOLD 7.6. USER_ID Register 7.7. Modulation Frequency 7.8. Frame Structure & Frame Rate 7.9. FRAME_STARTUP 7.10. FRAME_TIME 7.11. PHASE_COUNT 7.12. Px_PREHEAT, Px_PREMIX 7.13. Px_INTEGRATION 7.14. Px_PHASE_SHIFT 7.15. Px_PHASE_IDLE (or V-blanking) 7.16. Px_LEDEN 7.17. Px_DMIX0, Px_DMIX1 & Px_STATIC_LED 7.18. Analog Delay Setting 7.18.1. Coarse Delay 7.18.2. Fine Delay 7.18.3. Super Fine 7.19. Pixel Binning 7.20. Region of Interest (ROI) 7.21. Flip & Mirror 7.22. Temperature Sensor 7.23. Pixel & Phase Statistics 7.24. PN9 Test Pattern 7.25. Duty Cycle Adjustment 7.26. Illumination Signal (subLVDS or CMOS) 8. MetaData Description 8.1. Embedded Data Format in 4 Lane MIPI Configuration 8.2. Embedded Data Format in 2 Lane MIPI Configuration 9. Distance & Amplitude Calculation 10. Package Information 10.1. Transmittance and Reflectance 10.2. Pinout & Equivalent I/O Circuitry 10.3. Mechanical Dimensions 10.4. Package Marking 10.5. PCB Landing Pattern 10.6. Reflow Solder Profile 10.7. Reflow Cleaning Instructions 10.8. Cover Tape Removal Disclaimer
