Datasheet AP4405AEN (Asahi Kasei Microdevices) - 9
| 制造商 | Asahi Kasei Microdevices |
| 描述 | Ultra-Low Power Voltage Detector with P and N-Channel MOSFET Switch |
| 页数 / 页 | 19 / 9 — 3) Supply voltage(VDD) is powered up and detection voltage(VIN) increases … |
| 文件格式/大小 | PDF / 972 Kb |
| 文件语言 | 英语 |

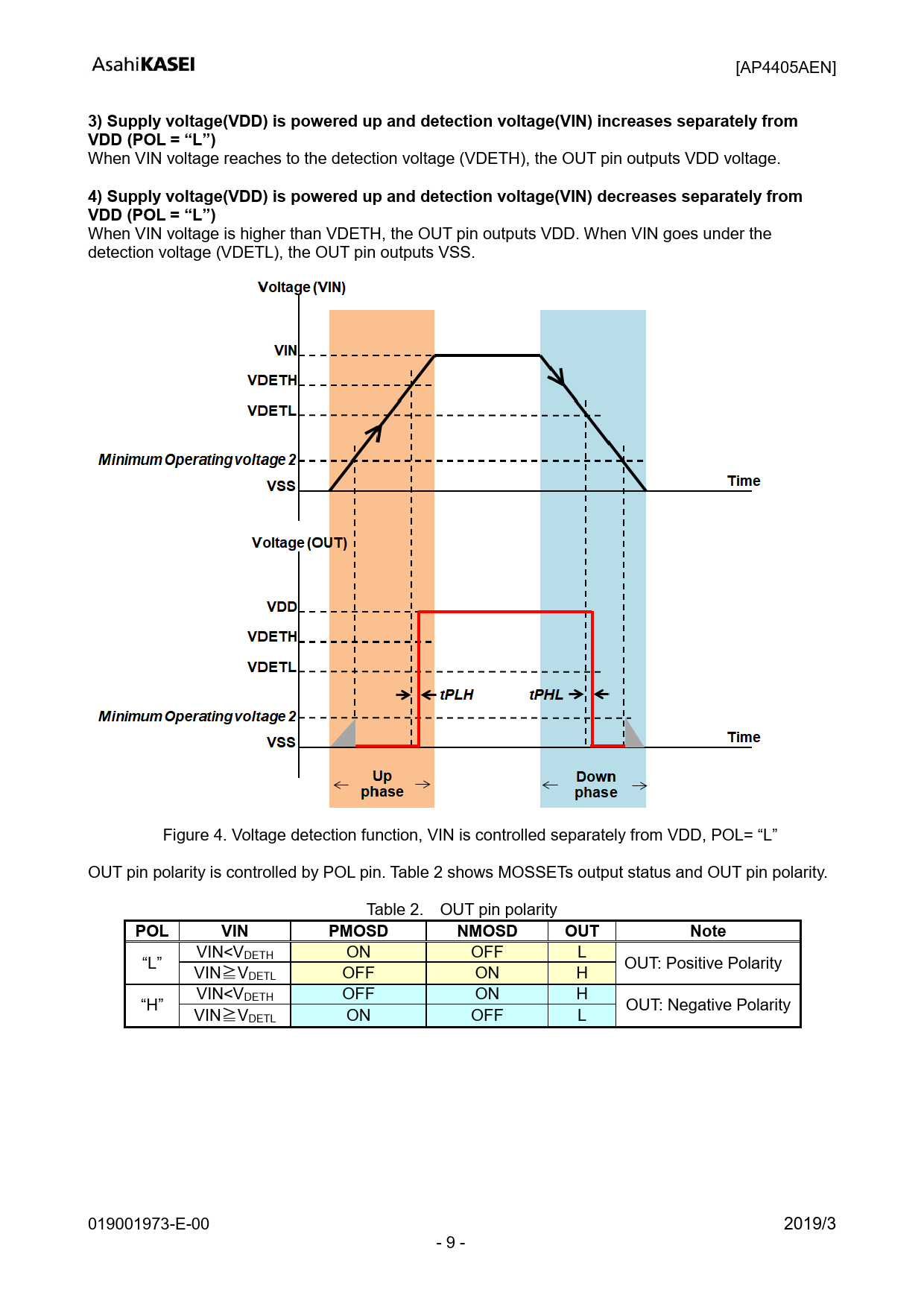

3) Supply voltage(VDD) is powered up and detection voltage(VIN) increases separately from VDD (POL = “L”)
该数据表的模型线
文件文字版本
[AP4405AEN]
3) Supply voltage(VDD) is powered up and detection voltage(VIN) increases separately from VDD (POL = “L”)
When VIN voltage reaches to the detection voltage (VDETH), the OUT pin outputs VDD voltage.
4) Supply voltage(VDD) is powered up and detection voltage(VIN) decreases separately from VDD (POL = “L”)
When VIN voltage is higher than VDETH, the OUT pin outputs VDD. When VIN goes under the detection voltage (VDETL), the OUT pin outputs VSS. Figure 4. Voltage detection function, VIN is controlled separately from VDD, POL= “L” OUT pin polarity is control ed by POL pin. Table 2 shows MOSSETs output status and OUT pin polarity. Table 2. OUT pin polarity
POL VIN PMOSD NMOSD OUT Note
VIN<V “L” DETH ON OFF L OUT: Positive Polarity VIN≧VDETL OFF ON H VIN<V “H” DETH OFF ON H OUT: Negative Polarity VIN≧VDETL ON OFF L 019001973-E-00 2019/3 - 9 -
