Datasheet BPX 43 (OSRAM)
| 制造商 | OSRAM |
| 描述 | Silicon NPN Phototransistor |
| 页数 / 页 | 14 / 1 — Produktdatenblatt. |. Version. 1.1. www.osram-os.com. BPX. 43. BPX. 43. … |
| 文件格式/大小 | PDF / 796 Kb |
| 文件语言 | 英语 |
Produktdatenblatt. |. Version. 1.1. www.osram-os.com. BPX. 43. BPX. 43. Metal. Can®. TO18. Silicon. NPN. Phototransistor. Applications—Industrial
该数据表的模型线
文件文字版本

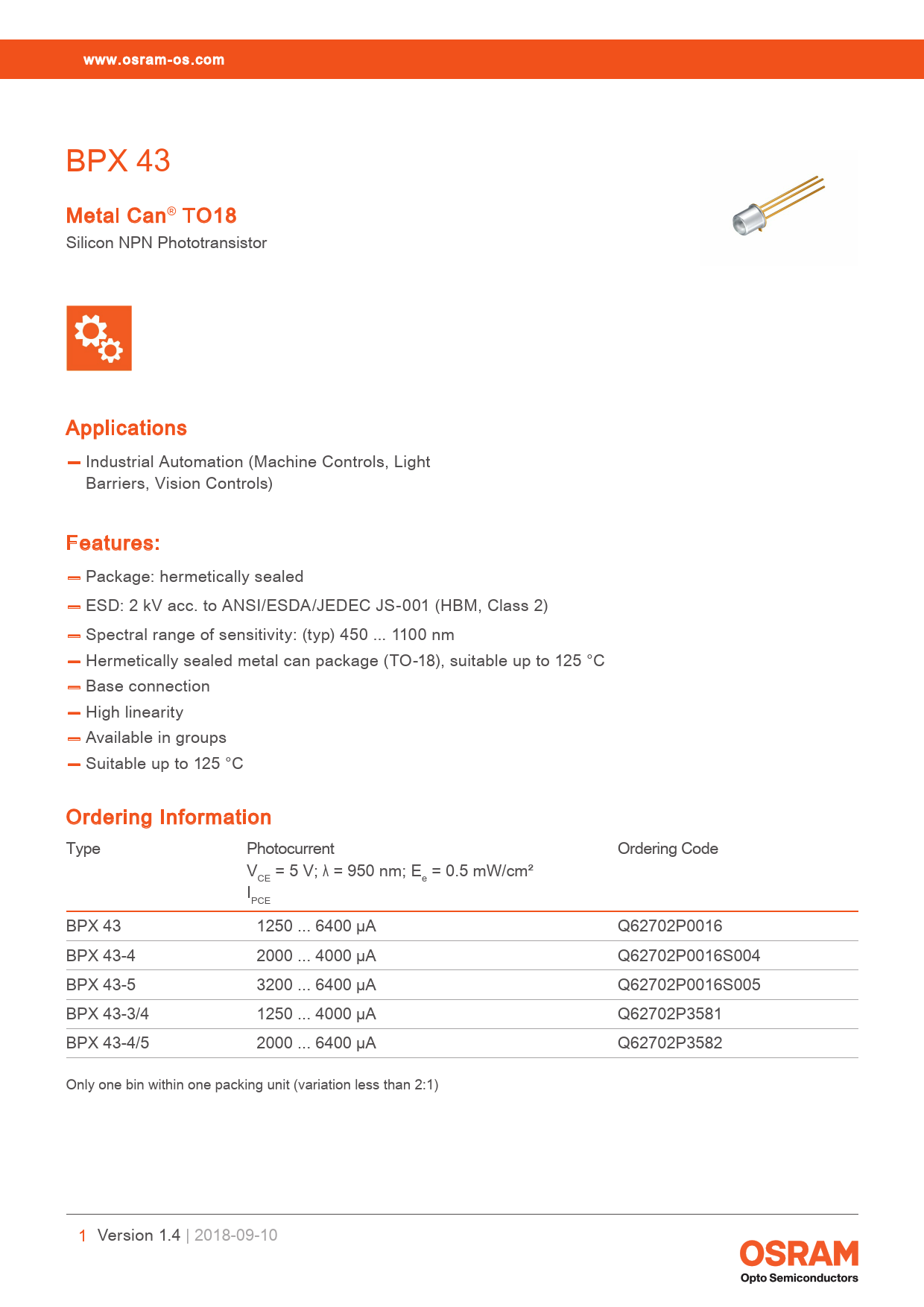

Produktdatenblatt | Version 1.1 www.osram-os.com BPX 43 BPX 43 Metal Can® TO18 Silicon NPN Phototransistor Applications
—
Industrial Automation (Machine Controls, Light Barriers, Vision Controls) Features:
—
Package: hermetically sealed
—
ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
—
Spectral range of sensitivity: (typ) 450 ... 1100 nm
—
Hermetically sealed metal can package (TO-18), suitable up to 125 °C
—
Base connection
—
High linearity
—
Available in groups
—
Suitable up to 125 °C Ordering Information Type Photocurrent Ordering Code V = 5 V; λ = 950 nm; E = 0.5 mW/cm² CE e IPCE BPX 43 1250 ... 6400 µA Q62702P0016 BPX 43-4 2000 ... 4000 µA Q62702P0016S004 BPX 43-5 3200 ... 6400 µA Q62702P0016S005 BPX 43-3/4 1250 ... 4000 µA Q62702P3581 BPX 43-4/5 2000 ... 6400 µA Q62702P3582 Only one bin within one packing unit (variation less than 2:1) 1 Version 1.4 | 2018-09-10
—
Industrial Automation (Machine Controls, Light Barriers, Vision Controls) Features:
—
Package: hermetically sealed
—
ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
—
Spectral range of sensitivity: (typ) 450 ... 1100 nm
—
Hermetically sealed metal can package (TO-18), suitable up to 125 °C
—
Base connection
—
High linearity
—
Available in groups
—
Suitable up to 125 °C Ordering Information Type Photocurrent Ordering Code V = 5 V; λ = 950 nm; E = 0.5 mW/cm² CE e IPCE BPX 43 1250 ... 6400 µA Q62702P0016 BPX 43-4 2000 ... 4000 µA Q62702P0016S004 BPX 43-5 3200 ... 6400 µA Q62702P0016S005 BPX 43-3/4 1250 ... 4000 µA Q62702P3581 BPX 43-4/5 2000 ... 6400 µA Q62702P3582 Only one bin within one packing unit (variation less than 2:1) 1 Version 1.4 | 2018-09-10
