Datasheet ICL761X, ICL762X, ICL763X, ICL764X (Maxim) - 10
| 制造商 | Maxim |
| 描述 | Single/Dual/Triple/Quad Operational Amplifiers |
| 页数 / 页 | 26 / 10 — Single/Dual/Triple/Quad Operational Amplifiers. ELECTRICAL … |
| 文件格式/大小 | PDF / 524 Kb |
| 文件语言 | 英语 |
Single/Dual/Triple/Quad Operational Amplifiers. ELECTRICAL CHARACTERISTICS (Single/Dual) (continued). ICL76XXA. ICL76XXB
该数据表的模型线
- ICL7611ACPA ICL7611ACPA+ ICL7611ACSA ICL7611ACSA-C60125 ICL7611BCPA ICL7611BCPA+ ICL7611BCSA+ ICL7611BCSA+T ICL7611BCTV ICL7611DC/D ICL7611DCPA ICL7611DCPA+ ICL7611DCPA-2 ICL7611DCSA ICL7611DCSA+ ICL7611DCSA+T ICL7611DCSA-T ICL7611DESA ICL7611DESA+ ICL7611DMTV
- ICL7612ACPA ICL7612ACPA+ ICL7612ACSA ICL7612ACSA+ ICL7612BC/D ICL7612BCPA ICL7612BCPA+ ICL7612BCSA ICL7612BCSA+ ICL7612BCSA+T ICL7612BESA+ ICL7612BESA+T ICL7612BMTV ICL7612BMTV/HR ICL7612DC/D ICL7612DCSA ICL7612DCSA+ ICL7612DCSA+T ICL7612DCSA-T ICL7612DESA ICL7612DESA+ ICL7612DESA+T
- ICL7621ACPA+ ICL7621ACSA+ ICL7621AESA ICL7621BCPA+ ICL7621BCSA ICL7621BCSA+ ICL7621BCSA+T ICL7621BESA ICL7621BESA+ ICL7621BESA+T ICL7621DC/D ICL7621DCPA ICL7621DCPA+ ICL7621DCPA-C60052 ICL7621DCSA ICL7621DCSA+ ICL7621DCSA+T ICL7621DESA ICL7621DESA+
- ICL7631BC/D ICL7631BCPE ICL7631BCPE+ ICL7631BCSE ICL7631BCSE-C60126 ICL7631BMJE/883B ICL7631BMJE/M60098 ICL7631CCPE ICL7631CCSE ICL7631EC/D ICL7631ECPE ICL7631ECPE+ ICL7631ECSE+
文件文字版本

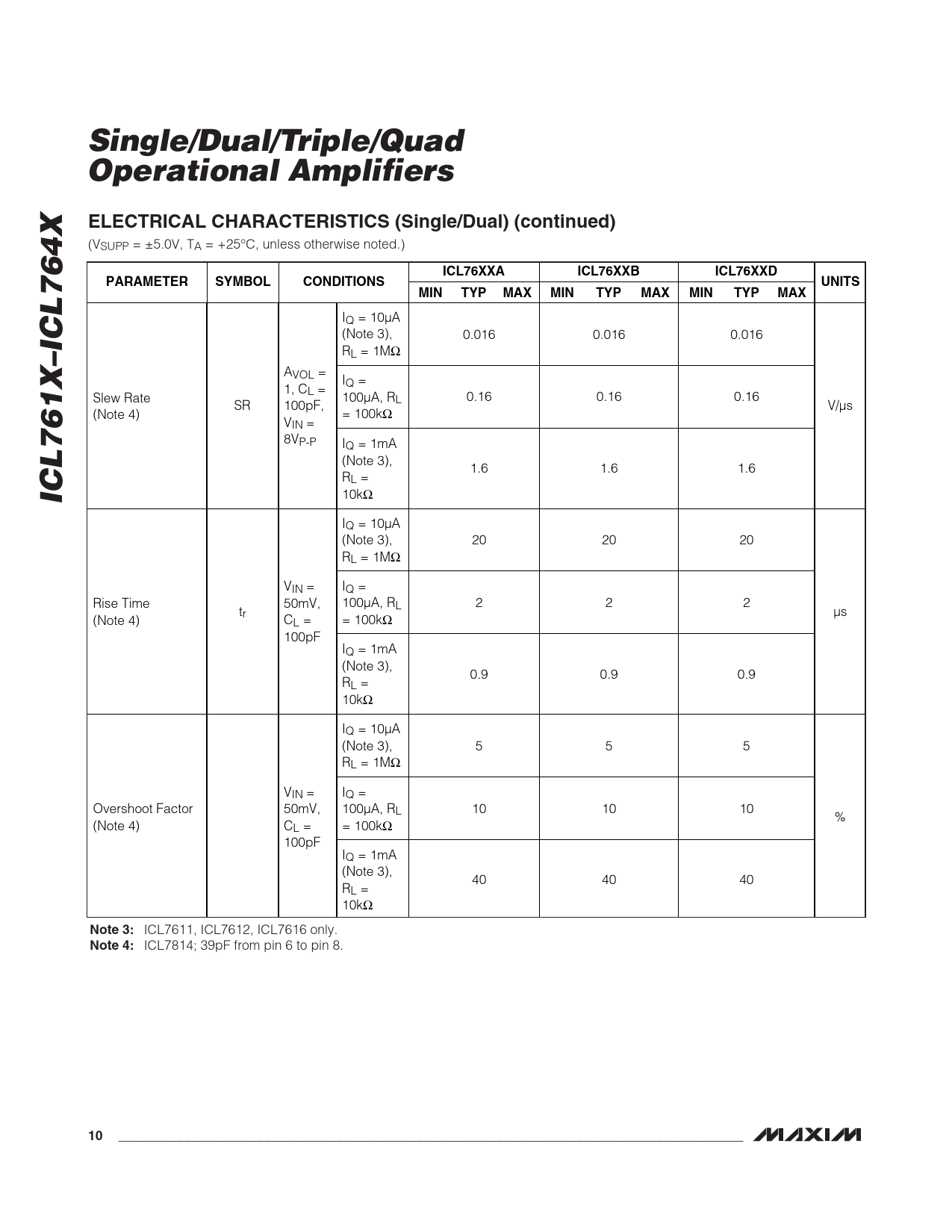

Single/Dual/Triple/Quad Operational Amplifiers ELECTRICAL CHARACTERISTICS (Single/Dual) (continued)
(VSUPP = ±5.0V, TA = +25°C, unless otherwise noted.)
ICL76XXA ICL76XXB ICL76XXD PARAMETER SYMBOL CONDITIONS UNITS MIN TYP MAX MIN TYP MAX MIN TYP MAX
IQ = 10µA (Note 3), 0.016 0.016 0.016 RL = 1MΩ AVOL = IQ = 1, CL = Slew Rate 100µA, RL 0.16 0.16 0.16 SR 100pF, V/µs (Note 4) = 100kΩ VIN = 8VP-P IQ = 1mA (Note 3), 1.6 1.6 1.6 RL =
ICL761X–ICL764X
10kΩ IQ = 10µA (Note 3), 20 20 20 RL = 1MΩ VIN = IQ = Rise Time 50mV, 100µA, RL 2 2 2 tr µs (Note 4) CL = = 100kΩ 100pF IQ = 1mA (Note 3), 0.9 0.9 0.9 RL = 10kΩ IQ = 10µA (Note 3), 5 5 5 RL = 1MΩ VIN = IQ = Overshoot Factor 50mV, 100µA, RL 10 10 10 % (Note 4) CL = = 100kΩ 100pF IQ = 1mA (Note 3), 40 40 40 RL = 10kΩ
Note 3:
ICL7611, ICL7612, ICL7616 only.
Note 4:
ICL7814; 39pF from pin 6 to pin 8.
10 ______________________________________________________________________________________
(VSUPP = ±5.0V, TA = +25°C, unless otherwise noted.)
ICL76XXA ICL76XXB ICL76XXD PARAMETER SYMBOL CONDITIONS UNITS MIN TYP MAX MIN TYP MAX MIN TYP MAX
IQ = 10µA (Note 3), 0.016 0.016 0.016 RL = 1MΩ AVOL = IQ = 1, CL = Slew Rate 100µA, RL 0.16 0.16 0.16 SR 100pF, V/µs (Note 4) = 100kΩ VIN = 8VP-P IQ = 1mA (Note 3), 1.6 1.6 1.6 RL =
ICL761X–ICL764X
10kΩ IQ = 10µA (Note 3), 20 20 20 RL = 1MΩ VIN = IQ = Rise Time 50mV, 100µA, RL 2 2 2 tr µs (Note 4) CL = = 100kΩ 100pF IQ = 1mA (Note 3), 0.9 0.9 0.9 RL = 10kΩ IQ = 10µA (Note 3), 5 5 5 RL = 1MΩ VIN = IQ = Overshoot Factor 50mV, 100µA, RL 10 10 10 % (Note 4) CL = = 100kΩ 100pF IQ = 1mA (Note 3), 40 40 40 RL = 10kΩ
Note 3:
ICL7611, ICL7612, ICL7616 only.
Note 4:
ICL7814; 39pF from pin 6 to pin 8.
10 ______________________________________________________________________________________
