Datasheet LTC6226, LTC6227 (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | 1nV/√Hz 420MHz GBW, 180V/µs, Low Distortion Rail-to-Rail Output Op Amps |
| 页数 / 页 | 28 / 4 — ELECTRICAL CHARACTERISTICS (V. The. denotes the specifications which … |
| 文件格式/大小 | PDF / 2.3 Mb |
| 文件语言 | 英语 |

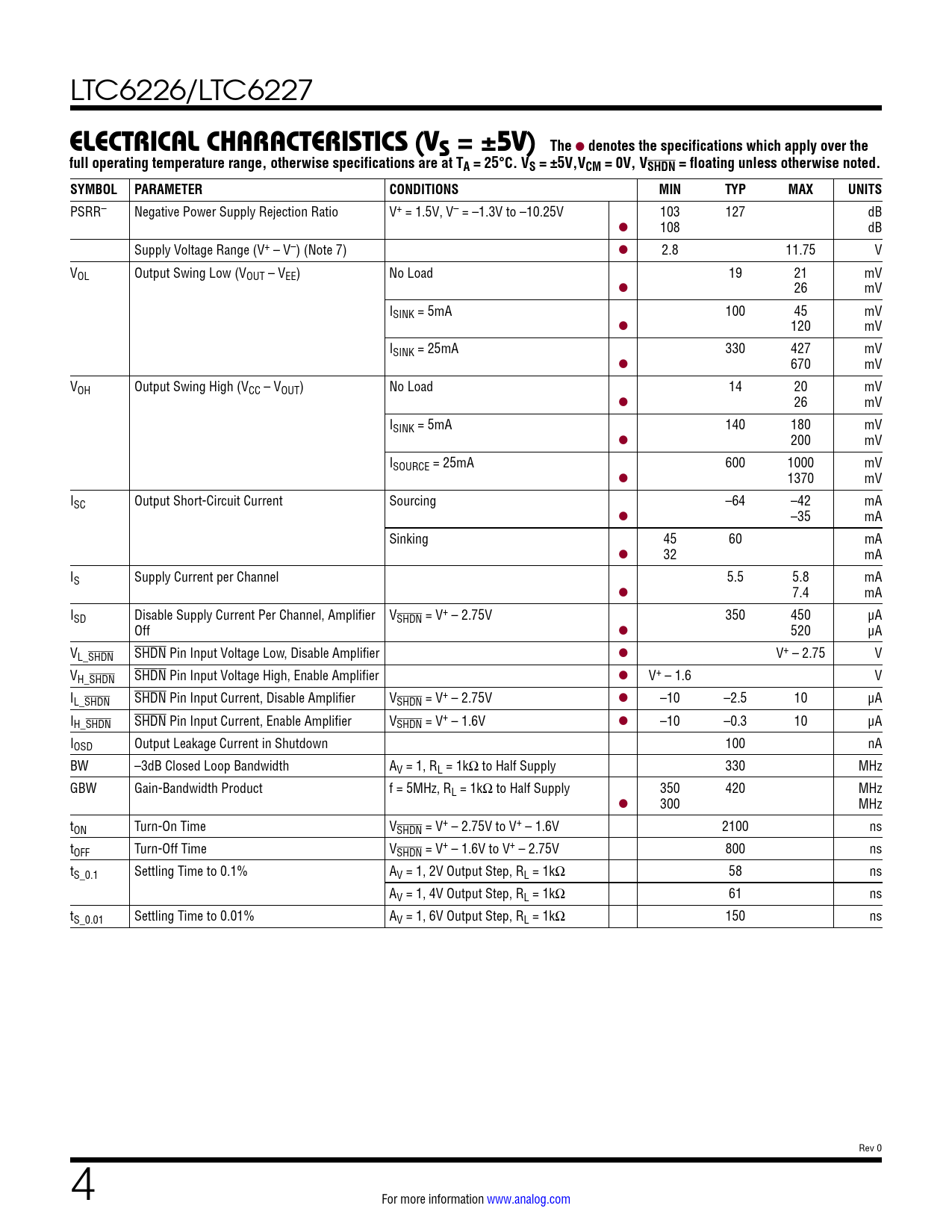

ELECTRICAL CHARACTERISTICS (V. The. denotes the specifications which apply over the. S = ±5V)
该数据表的模型线
文件文字版本
link to page 9 LTC6226/LTC6227
ELECTRICAL CHARACTERISTICS (V The
l
denotes the specifications which apply over the S = ±5V) full operating temperature range, otherwise specifications are at TA = 25°C. VS = ±5V,VCM = 0V, VSHDN = floating unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
PSRR– Negative Power Supply Rejection Ratio V+ = 1.5V, V– = –1.3V to –10.25V 103 127 dB l 108 dB Supply Voltage Range (V+ – V–) (Note 7) l 2.8 11.75 V VOL Output Swing Low (VOUT – VEE) No Load 19 21 mV l 26 mV ISINK = 5mA 100 45 mV l 120 mV ISINK = 25mA 330 427 mV l 670 mV VOH Output Swing High (VCC – VOUT) No Load 14 20 mV l 26 mV ISINK = 5mA 140 180 mV l 200 mV ISOURCE = 25mA 600 1000 mV l 1370 mV ISC Output Short-Circuit Current Sourcing –64 –42 mA l –35 mA Sinking 45 60 mA l 32 mA IS Supply Current per Channel 5.5 5.8 mA l 7.4 mA ISD Disable Supply Current Per Channel, Amplifier VSHDN = V+ – 2.75V 350 450 μA Off l 520 μA VL_SHDN SHDN Pin Input Voltage Low, Disable Amplifier l V+ – 2.75 V VH_SHDN SHDN Pin Input Voltage High, Enable Amplifier l V+ – 1.6 V IL_SHDN SHDN Pin Input Current, Disable Amplifier VSHDN = V+ – 2.75V l –10 –2.5 10 μA IH_SHDN SHDN Pin Input Current, Enable Amplifier VSHDN = V+ – 1.6V l –10 –0.3 10 μA IOSD Output Leakage Current in Shutdown 100 nA BW –3dB Closed Loop Bandwidth AV = 1, RL = 1kΩ to Half Supply 330 MHz GBW Gain-Bandwidth Product f = 5MHz, RL = 1kΩ to Half Supply 350 420 MHz l 300 MHz tON Turn-On Time VSHDN = V+ – 2.75V to V+ – 1.6V 2100 ns tOFF Turn-Off Time VSHDN = V+ – 1.6V to V+ – 2.75V 800 ns tS_0.1 Settling Time to 0.1% AV = 1, 2V Output Step, RL = 1kΩ 58 ns AV = 1, 4V Output Step, RL = 1kΩ 61 ns tS_0.01 Settling Time to 0.01% AV = 1, 6V Output Step, RL = 1kΩ 150 ns Rev 0 4 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics (VS = ±5V) Electrical Characteristics (VS = 5V, 0V) Electrical Characteristics (VS = 3V, 0V) Typical Performance Characteristics Pin Functions Applications Information Typical Applications Package Description Typical Application Related Parts
ELECTRICAL CHARACTERISTICS (V The
l
denotes the specifications which apply over the S = ±5V) full operating temperature range, otherwise specifications are at TA = 25°C. VS = ±5V,VCM = 0V, VSHDN = floating unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
PSRR– Negative Power Supply Rejection Ratio V+ = 1.5V, V– = –1.3V to –10.25V 103 127 dB l 108 dB Supply Voltage Range (V+ – V–) (Note 7) l 2.8 11.75 V VOL Output Swing Low (VOUT – VEE) No Load 19 21 mV l 26 mV ISINK = 5mA 100 45 mV l 120 mV ISINK = 25mA 330 427 mV l 670 mV VOH Output Swing High (VCC – VOUT) No Load 14 20 mV l 26 mV ISINK = 5mA 140 180 mV l 200 mV ISOURCE = 25mA 600 1000 mV l 1370 mV ISC Output Short-Circuit Current Sourcing –64 –42 mA l –35 mA Sinking 45 60 mA l 32 mA IS Supply Current per Channel 5.5 5.8 mA l 7.4 mA ISD Disable Supply Current Per Channel, Amplifier VSHDN = V+ – 2.75V 350 450 μA Off l 520 μA VL_SHDN SHDN Pin Input Voltage Low, Disable Amplifier l V+ – 2.75 V VH_SHDN SHDN Pin Input Voltage High, Enable Amplifier l V+ – 1.6 V IL_SHDN SHDN Pin Input Current, Disable Amplifier VSHDN = V+ – 2.75V l –10 –2.5 10 μA IH_SHDN SHDN Pin Input Current, Enable Amplifier VSHDN = V+ – 1.6V l –10 –0.3 10 μA IOSD Output Leakage Current in Shutdown 100 nA BW –3dB Closed Loop Bandwidth AV = 1, RL = 1kΩ to Half Supply 330 MHz GBW Gain-Bandwidth Product f = 5MHz, RL = 1kΩ to Half Supply 350 420 MHz l 300 MHz tON Turn-On Time VSHDN = V+ – 2.75V to V+ – 1.6V 2100 ns tOFF Turn-Off Time VSHDN = V+ – 1.6V to V+ – 2.75V 800 ns tS_0.1 Settling Time to 0.1% AV = 1, 2V Output Step, RL = 1kΩ 58 ns AV = 1, 4V Output Step, RL = 1kΩ 61 ns tS_0.01 Settling Time to 0.01% AV = 1, 6V Output Step, RL = 1kΩ 150 ns Rev 0 4 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics (VS = ±5V) Electrical Characteristics (VS = 5V, 0V) Electrical Characteristics (VS = 3V, 0V) Typical Performance Characteristics Pin Functions Applications Information Typical Applications Package Description Typical Application Related Parts
