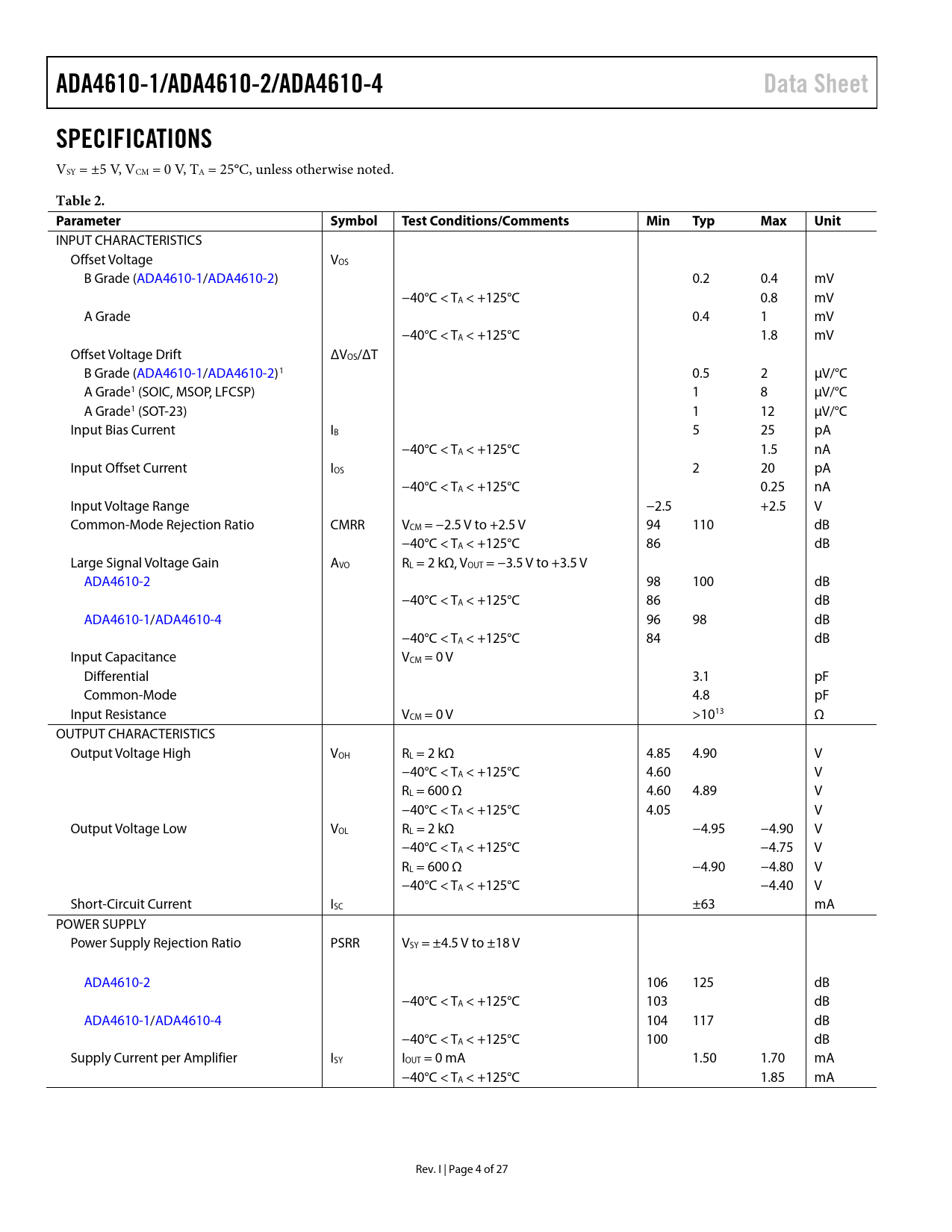

ADA4610-1/ADA4610-2/ADA4610-4. Data Sheet. SPECIFICATIONS. Table 2. Parameter. Symbol. Test Conditions/Comments. Min. Typ. Max. Unit
该数据表的模型线
- ADA4610-1ARJZ-R2 ADA4610-1ARJZ-R7 ADA4610-1ARJZ-RL ADA4610-1ARZ ADA4610-1ARZ-R7 ADA4610-1ARZ-RL ADA4610-1BRZ ADA4610-1BRZ-R7 ADA4610-1BRZ-RL
文件文字版本
link to page 5 link to page 5 link to page 5
ADA4610-1/ADA4610-2/ADA4610-4 Data Sheet SPECIFICATIONS
VSY = ±5 V, VCM = 0 V, TA = 25°C, unless otherwise noted.
Table 2. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage VOS B Grade (ADA4610-1/ADA4610-2) 0.2 0.4 mV −40°C < TA < +125°C 0.8 mV A Grade 0.4 1 mV −40°C < TA < +125°C 1.8 mV Offset Voltage Drift ΔVOS/ΔT B Grade (ADA4610-1/ADA4610-2)1 0.5 2 µV/°C A Grade1 (SOIC, MSOP, LFCSP) 1 8 µV/°C A Grade1 (SOT-23) 1 12 µV/°C Input Bias Current IB 5 25 pA −40°C < TA < +125°C 1.5 nA Input Offset Current IOS 2 20 pA −40°C < TA < +125°C 0.25 nA Input Voltage Range −2.5 +2.5 V Common-Mode Rejection Ratio CMRR VCM = −2.5 V to +2.5 V 94 110 dB −40°C < TA < +125°C 86 dB Large Signal Voltage Gain AVO RL = 2 kΩ, VOUT = −3.5 V to +3.5 V ADA4610-2 98 100 dB −40°C < TA < +125°C 86 dB ADA4610-1/ADA4610-4 96 98 dB −40°C < TA < +125°C 84 dB Input Capacitance VCM = 0 V Differential 3.1 pF Common-Mode 4.8 pF Input Resistance VCM = 0 V >1013 Ω OUTPUT CHARACTERISTICS Output Voltage High VOH RL = 2 kΩ 4.85 4.90 V −40°C < TA < +125°C 4.60 V RL = 600 Ω 4.60 4.89 V −40°C < TA < +125°C 4.05 V Output Voltage Low VOL RL = 2 kΩ −4.95 −4.90 V −40°C < TA < +125°C −4.75 V RL = 600 Ω −4.90 −4.80 V −40°C < TA < +125°C −4.40 V Short-Circuit Current ISC ±63 mA POWER SUPPLY Power Supply Rejection Ratio PSRR VSY = ±4.5 V to ±18 V ADA4610-2 106 125 dB −40°C < TA < +125°C 103 dB ADA4610-1/ADA4610-4 104 117 dB −40°C < TA < +125°C 100 dB Supply Current per Amplifier ISY IOUT = 0 mA 1.50 1.70 mA −40°C < TA < +125°C 1.85 mA Rev. I | Page 4 of 27 Document Outline Features Applications Pin Configuration General Description Revision History Specifications Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Comparative Voltage and Variable Voltage Graphs Theory of Operation Applications Information Input Overvoltage Protection Peak Detector Current to Voltage (I to V) Conversion Applications Photodiode Circuits Comparator Operation Long-Term Drift Temperature Hysteresis Outline Dimensions Ordering Guide
ADA4610-1/ADA4610-2/ADA4610-4 Data Sheet SPECIFICATIONS
VSY = ±5 V, VCM = 0 V, TA = 25°C, unless otherwise noted.
Table 2. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage VOS B Grade (ADA4610-1/ADA4610-2) 0.2 0.4 mV −40°C < TA < +125°C 0.8 mV A Grade 0.4 1 mV −40°C < TA < +125°C 1.8 mV Offset Voltage Drift ΔVOS/ΔT B Grade (ADA4610-1/ADA4610-2)1 0.5 2 µV/°C A Grade1 (SOIC, MSOP, LFCSP) 1 8 µV/°C A Grade1 (SOT-23) 1 12 µV/°C Input Bias Current IB 5 25 pA −40°C < TA < +125°C 1.5 nA Input Offset Current IOS 2 20 pA −40°C < TA < +125°C 0.25 nA Input Voltage Range −2.5 +2.5 V Common-Mode Rejection Ratio CMRR VCM = −2.5 V to +2.5 V 94 110 dB −40°C < TA < +125°C 86 dB Large Signal Voltage Gain AVO RL = 2 kΩ, VOUT = −3.5 V to +3.5 V ADA4610-2 98 100 dB −40°C < TA < +125°C 86 dB ADA4610-1/ADA4610-4 96 98 dB −40°C < TA < +125°C 84 dB Input Capacitance VCM = 0 V Differential 3.1 pF Common-Mode 4.8 pF Input Resistance VCM = 0 V >1013 Ω OUTPUT CHARACTERISTICS Output Voltage High VOH RL = 2 kΩ 4.85 4.90 V −40°C < TA < +125°C 4.60 V RL = 600 Ω 4.60 4.89 V −40°C < TA < +125°C 4.05 V Output Voltage Low VOL RL = 2 kΩ −4.95 −4.90 V −40°C < TA < +125°C −4.75 V RL = 600 Ω −4.90 −4.80 V −40°C < TA < +125°C −4.40 V Short-Circuit Current ISC ±63 mA POWER SUPPLY Power Supply Rejection Ratio PSRR VSY = ±4.5 V to ±18 V ADA4610-2 106 125 dB −40°C < TA < +125°C 103 dB ADA4610-1/ADA4610-4 104 117 dB −40°C < TA < +125°C 100 dB Supply Current per Amplifier ISY IOUT = 0 mA 1.50 1.70 mA −40°C < TA < +125°C 1.85 mA Rev. I | Page 4 of 27 Document Outline Features Applications Pin Configuration General Description Revision History Specifications Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Comparative Voltage and Variable Voltage Graphs Theory of Operation Applications Information Input Overvoltage Protection Peak Detector Current to Voltage (I to V) Conversion Applications Photodiode Circuits Comparator Operation Long-Term Drift Temperature Hysteresis Outline Dimensions Ordering Guide
