Datasheet ADA4610-1, ADA4610-2, ADA4610-4 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | Low Noise, Precision, Rail-to-Rail Output, JFET Single Op Amp |
| 页数 / 页 | 27 / 5 — Data Sheet. ADA4610-1/ADA4610-2/ADA4610-4. Parameter. Symbol. Test … |
| 修订版 | I |
| 文件格式/大小 | PDF / 1.1 Mb |
| 文件语言 | 英语 |

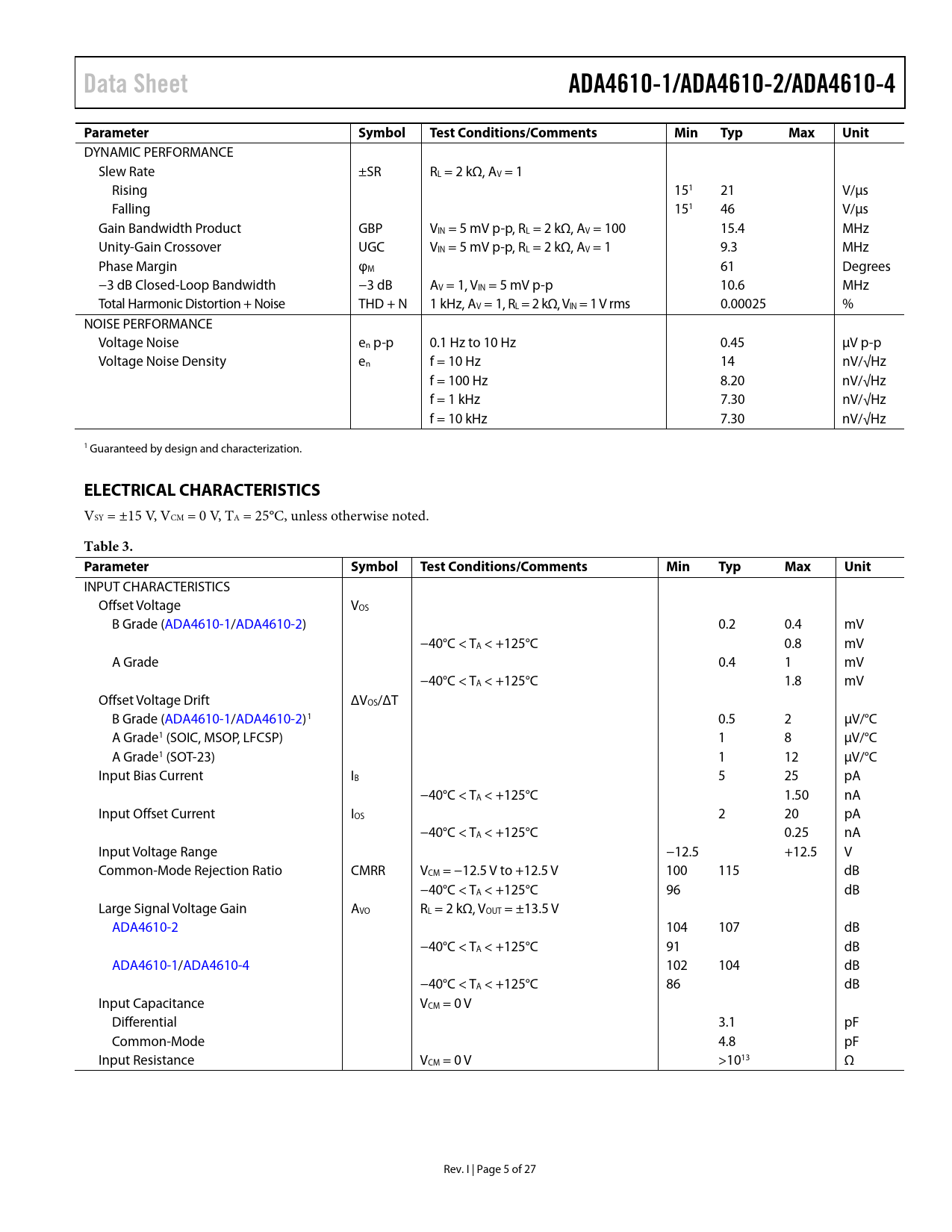

Data Sheet. ADA4610-1/ADA4610-2/ADA4610-4. Parameter. Symbol. Test Conditions/Comments. Min. Typ. Max. Unit. ELECTRICAL CHARACTERISTICS
该数据表的模型线
- ADA4610-1ARJZ-R2 ADA4610-1ARJZ-R7 ADA4610-1ARJZ-RL ADA4610-1ARZ ADA4610-1ARZ-R7 ADA4610-1ARZ-RL ADA4610-1BRZ ADA4610-1BRZ-R7 ADA4610-1BRZ-RL
文件文字版本
link to page 6 link to page 6 link to page 6
Data Sheet ADA4610-1/ADA4610-2/ADA4610-4 Parameter Symbol Test Conditions/Comments Min Typ Max Unit
DYNAMIC PERFORMANCE Slew Rate ±SR RL = 2 kΩ, AV = 1 Rising 151 21 V/µs Falling 151 46 V/µs Gain Bandwidth Product GBP VIN = 5 mV p-p, RL = 2 kΩ, AV = 100 15.4 MHz Unity-Gain Crossover UGC VIN = 5 mV p-p, RL = 2 kΩ, AV = 1 9.3 MHz Phase Margin φM 61 Degrees −3 dB Closed-Loop Bandwidth −3 dB AV = 1, VIN = 5 mV p-p 10.6 MHz Total Harmonic Distortion + Noise THD + N 1 kHz, AV = 1, RL = 2 kΩ, VIN = 1 V rms 0.00025 % NOISE PERFORMANCE Voltage Noise en p-p 0.1 Hz to 10 Hz 0.45 µV p-p Voltage Noise Density en f = 10 Hz 14 nV/√Hz f = 100 Hz 8.20 nV/√Hz f = 1 kHz 7.30 nV/√Hz f = 10 kHz 7.30 nV/√Hz 1 Guaranteed by design and characterization.
ELECTRICAL CHARACTERISTICS
VSY = ±15 V, VCM = 0 V, TA = 25°C, unless otherwise noted.
Table 3. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage VOS B Grade (ADA4610-1/ADA4610-2) 0.2 0.4 mV −40°C < TA < +125°C 0.8 mV A Grade 0.4 1 mV −40°C < TA < +125°C 1.8 mV Offset Voltage Drift ΔVOS/ΔT B Grade (ADA4610-1/ADA4610-2)1 0.5 2 µV/°C A Grade1 (SOIC, MSOP, LFCSP) 1 8 µV/°C A Grade1 (SOT-23) 1 12 µV/°C Input Bias Current IB 5 25 pA −40°C < TA < +125°C 1.50 nA Input Offset Current IOS 2 20 pA −40°C < TA < +125°C 0.25 nA Input Voltage Range −12.5 +12.5 V Common-Mode Rejection Ratio CMRR VCM = −12.5 V to +12.5 V 100 115 dB −40°C < TA < +125°C 96 dB Large Signal Voltage Gain AVO RL = 2 kΩ, VOUT = ±13.5 V ADA4610-2 104 107 dB −40°C < TA < +125°C 91 dB ADA4610-1/ADA4610-4 102 104 dB −40°C < TA < +125°C 86 dB Input Capacitance VCM = 0 V Differential 3.1 pF Common-Mode 4.8 pF Input Resistance VCM = 0 V >1013 Ω Rev. I | Page 5 of 27 Document Outline Features Applications Pin Configuration General Description Revision History Specifications Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Comparative Voltage and Variable Voltage Graphs Theory of Operation Applications Information Input Overvoltage Protection Peak Detector Current to Voltage (I to V) Conversion Applications Photodiode Circuits Comparator Operation Long-Term Drift Temperature Hysteresis Outline Dimensions Ordering Guide
