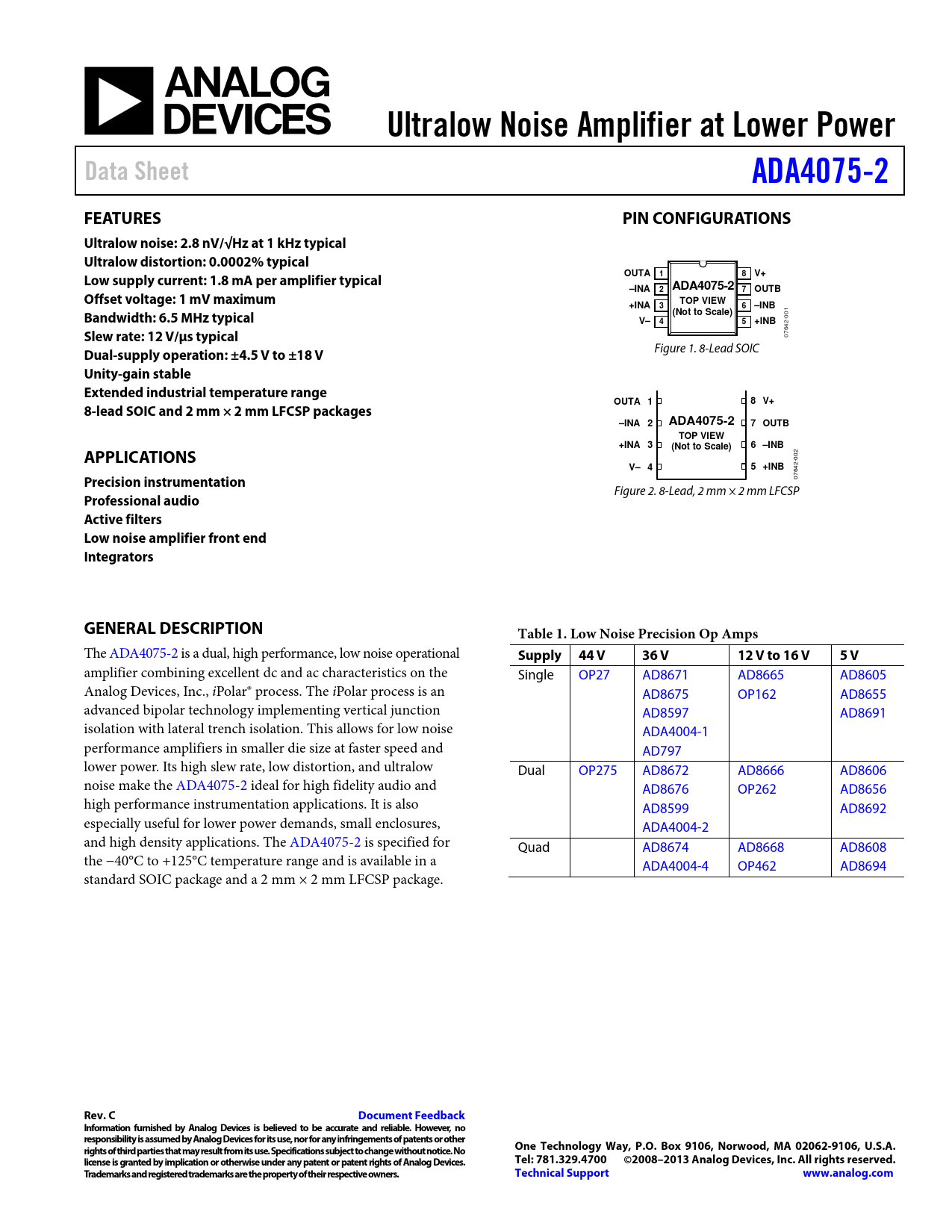

Ultralow Noise Amplifier at Lower Power. Data Sheet. ADA4075-2. FEATURES. PIN CONFIGURATIONS
该数据表的模型线
文件文字版本
Ultralow Noise Amplifier at Lower Power Data Sheet ADA4075-2 FEATURES PIN CONFIGURATIONS Ultralow noise: 2.8 nV/√Hz at 1 kHz typical Ultralow distortion: 0.0002% typical OUTA 1 8 V+ Low supply current: 1.8 mA per amplifier typical –INA 2 ADA4075-2 7 OUTB Offset voltage: 1 mV maximum +INA TOP VIEW 3 6 –INB
01
Bandwidth: 6.5 MHz typical (Not to Scale) V–
-0
4 5 +INB
42
Slew rate: 12 V/μs typical
76 0 Figure 1. 8-Lead SOIC
Dual-supply operation: ±4.5 V to ±18 V Unity-gain stable Extended industrial temperature range OUTA 1 8 V+ 8-lead SOIC and 2 mm × 2 mm LFCSP packages –INA 2 ADA4075-2 7 OUTB TOP VIEW +INA 3 (Not to Scale) 6 –INB APPLICATIONS
2 -00
V– 4 5 +INB
642
Precision instrumentation
07 Figure 2. 8-Lead, 2 mm × 2 mm LFCSP
Professional audio Active filters Low noise amplifier front end Integrators GENERAL DESCRIPTION Table 1. Low Noise Precision Op Amps
The ADA4075-2 is a dual, high performance, low noise operational
Supply 44 V 36 V 12 V to 16 V 5 V
amplifier combining excellent dc and ac characteristics on the Single OP27 AD8671 AD8665 AD8605 Analog Devices, Inc., iPolar® process. The iPolar process is an AD8675 OP162 AD8655 advanced bipolar technology implementing vertical junction AD8597 AD8691 isolation with lateral trench isolation. This allows for low noise ADA4004-1 performance amplifiers in smaller die size at faster speed and AD797 lower power. Its high slew rate, low distortion, and ultralow Dual OP275 AD8672 AD8666 AD8606 noise make the ADA4075-2 ideal for high fidelity audio and AD8676 OP262 AD8656 high performance instrumentation applications. It is also AD8599 AD8692 especially useful for lower power demands, small enclosures, ADA4004-2 and high density applications. The ADA4075-2 is specified for Quad AD8674 AD8668 AD8608 the −40°C to +125°C temperature range and is available in a ADA4004-4 OP462 AD8694 standard SOIC package and a 2 mm × 2 mm LFCSP package.
