Datasheet AD8510, AD8512, AD8513 (Analog Devices) - 6
| 制造商 | Analog Devices |
| 描述 | Precision, Very Low Noise, Low Input Bias Current, Wide Bandwidth JFET Quad Operational Amplifier |
| 页数 / 页 | 21 / 6 — AD8510/AD8512/AD8513. Date Sheet. Parameter Symbol. Conditions. Min. Typ. … |
| 修订版 | K |
| 文件格式/大小 | PDF / 383 Kb |
| 文件语言 | 英语 |

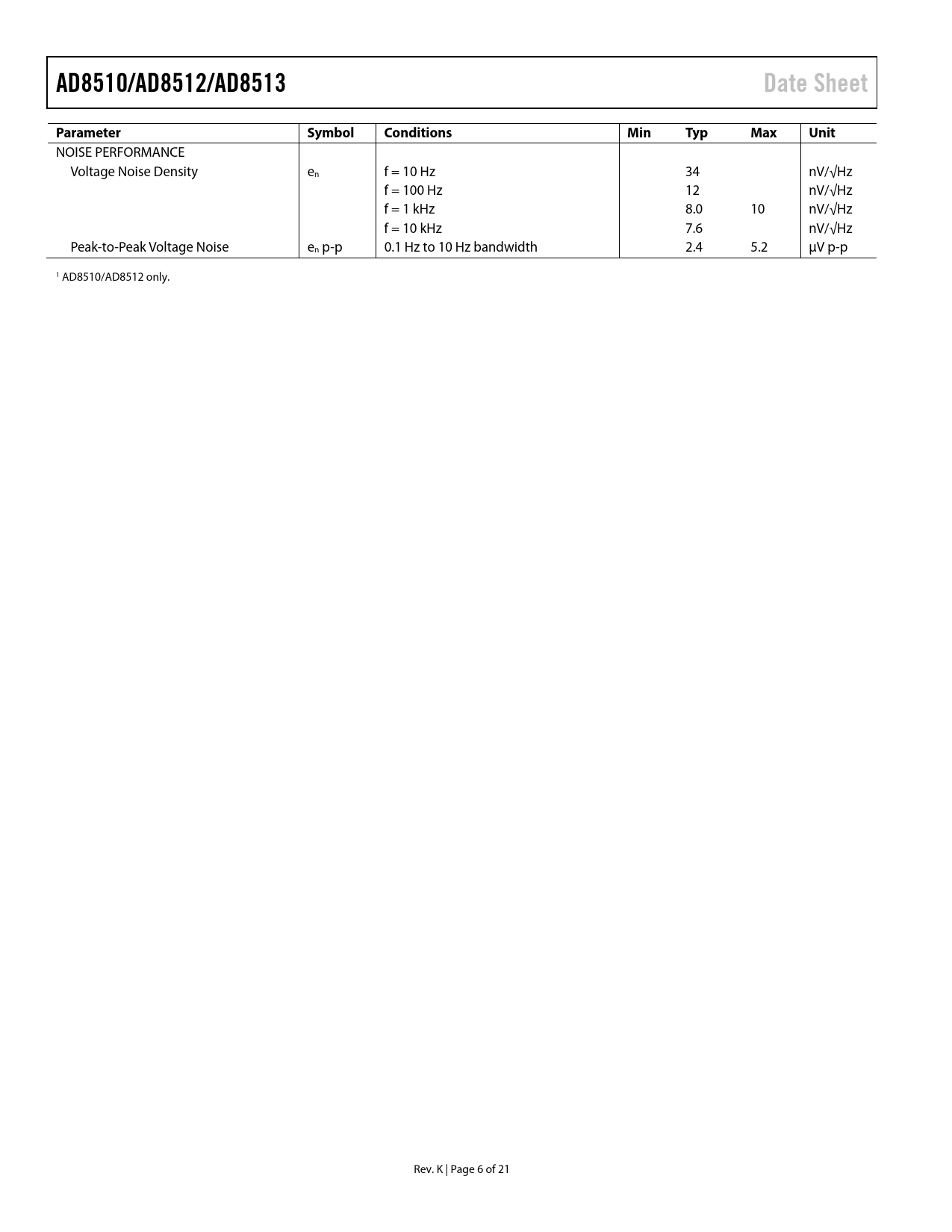

AD8510/AD8512/AD8513. Date Sheet. Parameter Symbol. Conditions. Min. Typ. Max. Unit
该数据表的模型线
- AD8510AR AD8510ARMZ AD8510ARMZ-REEL AD8510ARZ AD8510ARZ-REEL AD8510ARZ-REEL7 AD8510BRZ AD8510BRZ-REEL AD8510BRZ-REEL7
文件文字版本
AD8510/AD8512/AD8513 Date Sheet Parameter Symbol Conditions Min Typ Max Unit
NOISE PERFORMANCE Voltage Noise Density en f = 10 Hz 34 nV/√Hz f = 100 Hz 12 nV/√Hz f = 1 kHz 8.0 10 nV/√Hz f = 10 kHz 7.6 nV/√Hz Peak-to-Peak Voltage Noise en p-p 0.1 Hz to 10 Hz bandwidth 2.4 5.2 μV p-p 1 AD8510/AD8512 only. Rev. K | Page 6 of 21 Document Outline FEATURES APPLICATIONS PIN CONFIGURATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS GENERAL APPLICATION INFORMATION INPUT OVERVOLTAGE PROTECTION OUTPUT PHASE REVERSAL TOTAL HARMONIC DISTORTION (THD) + NOISE TOTAL NOISE INCLUDING SOURCE RESISTORS SETTLING TIME OVERLOAD RECOVERY TIME CAPACITIVE LOAD DRIVE OPEN-LOOP GAIN AND PHASE RESPONSE PRECISION RECTIFIERS I-V CONVERSION APPLICATIONS Photodiode Circuits Signal Transmission Applications Crosstalk OUTLINE DIMENSIONS ORDERING GUIDE
NOISE PERFORMANCE Voltage Noise Density en f = 10 Hz 34 nV/√Hz f = 100 Hz 12 nV/√Hz f = 1 kHz 8.0 10 nV/√Hz f = 10 kHz 7.6 nV/√Hz Peak-to-Peak Voltage Noise en p-p 0.1 Hz to 10 Hz bandwidth 2.4 5.2 μV p-p 1 AD8510/AD8512 only. Rev. K | Page 6 of 21 Document Outline FEATURES APPLICATIONS PIN CONFIGURATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS GENERAL APPLICATION INFORMATION INPUT OVERVOLTAGE PROTECTION OUTPUT PHASE REVERSAL TOTAL HARMONIC DISTORTION (THD) + NOISE TOTAL NOISE INCLUDING SOURCE RESISTORS SETTLING TIME OVERLOAD RECOVERY TIME CAPACITIVE LOAD DRIVE OPEN-LOOP GAIN AND PHASE RESPONSE PRECISION RECTIFIERS I-V CONVERSION APPLICATIONS Photodiode Circuits Signal Transmission Applications Crosstalk OUTLINE DIMENSIONS ORDERING GUIDE
