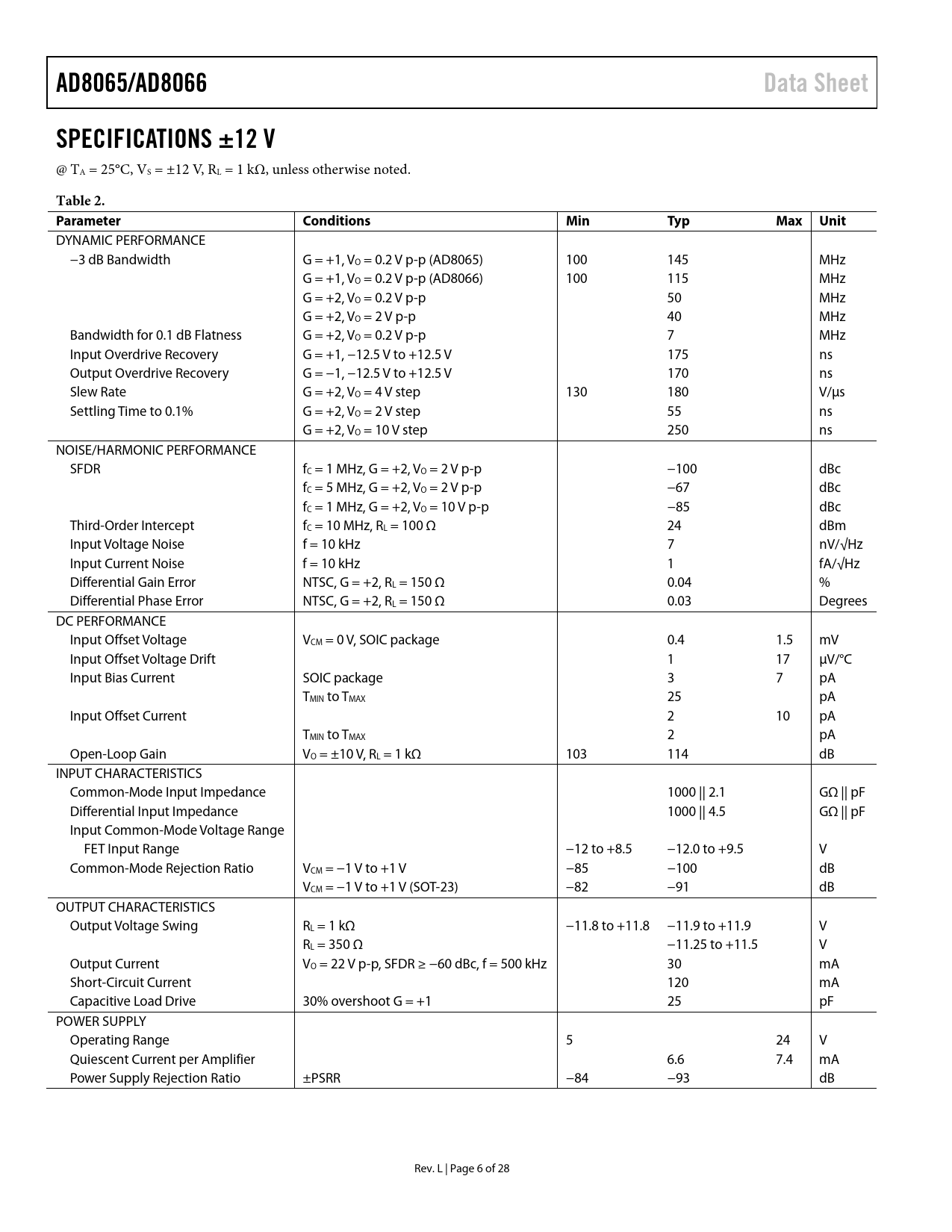

AD8065/AD8066 Data Sheet SPECIFICATIONS ±12 V
@ TA = 25°C, VS = ±12 V, RL = 1 kΩ, unless otherwise noted.
Table 2. Parameter Conditions Min Typ Max Unit
DYNAMIC PERFORMANCE −3 dB Bandwidth G = +1, VO = 0.2 V p-p (AD8065) 100 145 MHz G = +1, VO = 0.2 V p-p (AD8066) 100 115 MHz G = +2, VO = 0.2 V p-p 50 MHz G = +2, VO = 2 V p-p 40 MHz Bandwidth for 0.1 dB Flatness G = +2, VO = 0.2 V p-p 7 MHz Input Overdrive Recovery G = +1, −12.5 V to +12.5 V 175 ns Output Overdrive Recovery G = −1, −12.5 V to +12.5 V 170 ns Slew Rate G = +2, VO = 4 V step 130 180 V/µs Settling Time to 0.1% G = +2, VO = 2 V step 55 ns G = +2, VO = 10 V step 250 ns NOISE/HARMONIC PERFORMANCE SFDR fC = 1 MHz, G = +2, VO = 2 V p-p −100 dBc fC = 5 MHz, G = +2, VO = 2 V p-p −67 dBc fC = 1 MHz, G = +2, VO = 10 V p-p −85 dBc Third-Order Intercept fC = 10 MHz, RL = 100 Ω 24 dBm Input Voltage Noise f = 10 kHz 7 nV/√Hz Input Current Noise f = 10 kHz 1 fA/√Hz Differential Gain Error NTSC, G = +2, RL = 150 Ω 0.04 % Differential Phase Error NTSC, G = +2, RL = 150 Ω 0.03 Degrees DC PERFORMANCE Input Offset Voltage VCM = 0 V, SOIC package 0.4 1.5 mV Input Offset Voltage Drift 1 17 µV/°C Input Bias Current SOIC package 3 7 pA TMIN to TMAX 25 pA Input Offset Current 2 10 pA TMIN to TMAX 2 pA Open-Loop Gain VO = ±10 V, RL = 1 kΩ 103 114 dB INPUT CHARACTERISTICS Common-Mode Input Impedance 1000 || 2.1 GΩ || pF Differential Input Impedance 1000 || 4.5 GΩ || pF Input Common-Mode Voltage Range FET Input Range −12 to +8.5 −12.0 to +9.5 V Common-Mode Rejection Ratio VCM = −1 V to +1 V −85 −100 dB VCM = −1 V to +1 V (SOT-23) −82 −91 dB OUTPUT CHARACTERISTICS Output Voltage Swing RL = 1 kΩ −11.8 to +11.8 −11.9 to +11.9 V RL = 350 Ω −11.25 to +11.5 V Output Current VO = 22 V p-p, SFDR ≥ −60 dBc, f = 500 kHz 30 mA Short-Circuit Current 120 mA Capacitive Load Drive 30% overshoot G = +1 25 pF POWER SUPPLY Operating Range 5 24 V Quiescent Current per Amplifier 6.6 7.4 mA Power Supply Rejection Ratio ±PSRR −84 −93 dB Rev. L | Page 6 of 28 Document Outline Features Applications Connection Diagrams General Description Table of Contents Revision History Specifications ±5 V Specifications ±12 V Specifications +5 V Absolute Maximum Ratings Maximum Power Dissipation Output Short Circuit ESD Caution Typical Performance Characteristics Test Circuits SOIC-8 Pinout Theory of Operation Closed-Loop Frequency Response Noninverting Closed-Loop Frequency Response Inverting Closed-Loop Frequency Response Wideband Operation Input Protection Thermal Considerations Input and Output Overload Behavior Layout, Grounding, and Bypassing Considerations Power Supply Bypassing Grounding Leakage Currents Input Capacitance Output Capacitance Input-to-Output Coupling Wideband Photodiode Preamp High Speed JFET Input Instrumentation Amplifier Video Buffer Outline Dimensions Ordering Guide Automotive Products
