Datasheet AD8022 (Analog Devices) - 7
| 制造商 | Analog Devices |
| 描述 | Dual High Speed, Low Noise Op Amp |
| 页数 / 页 | 16 / 7 — Data Sheet. AD8022. 100mV. 100ns. 100. INPUT. GAIN (dB). OUTPUT. –10. 5k … |
| 修订版 | C |
| 文件格式/大小 | PDF / 301 Kb |
| 文件语言 | 英语 |
Data Sheet. AD8022. 100mV. 100ns. 100. INPUT. GAIN (dB). OUTPUT. –10. 5k 10k. 100k. 10M. 100M. 500M. FREQUENCY (Hz). 180. 2.00V. ees). (Degr. NCY. QUE. FRE. –180
该数据表的模型线
文件文字版本
Data Sheet AD8022 80 100mV 100ns 70 60 100 INPUT 90 50 40 30 GAIN (dB) 20 10 10 0 0% OUTPUT –10 100mV
01053-010
5k 10k 100k 1M 10M 100M 500M
01053-013
FREQUENCY (Hz)

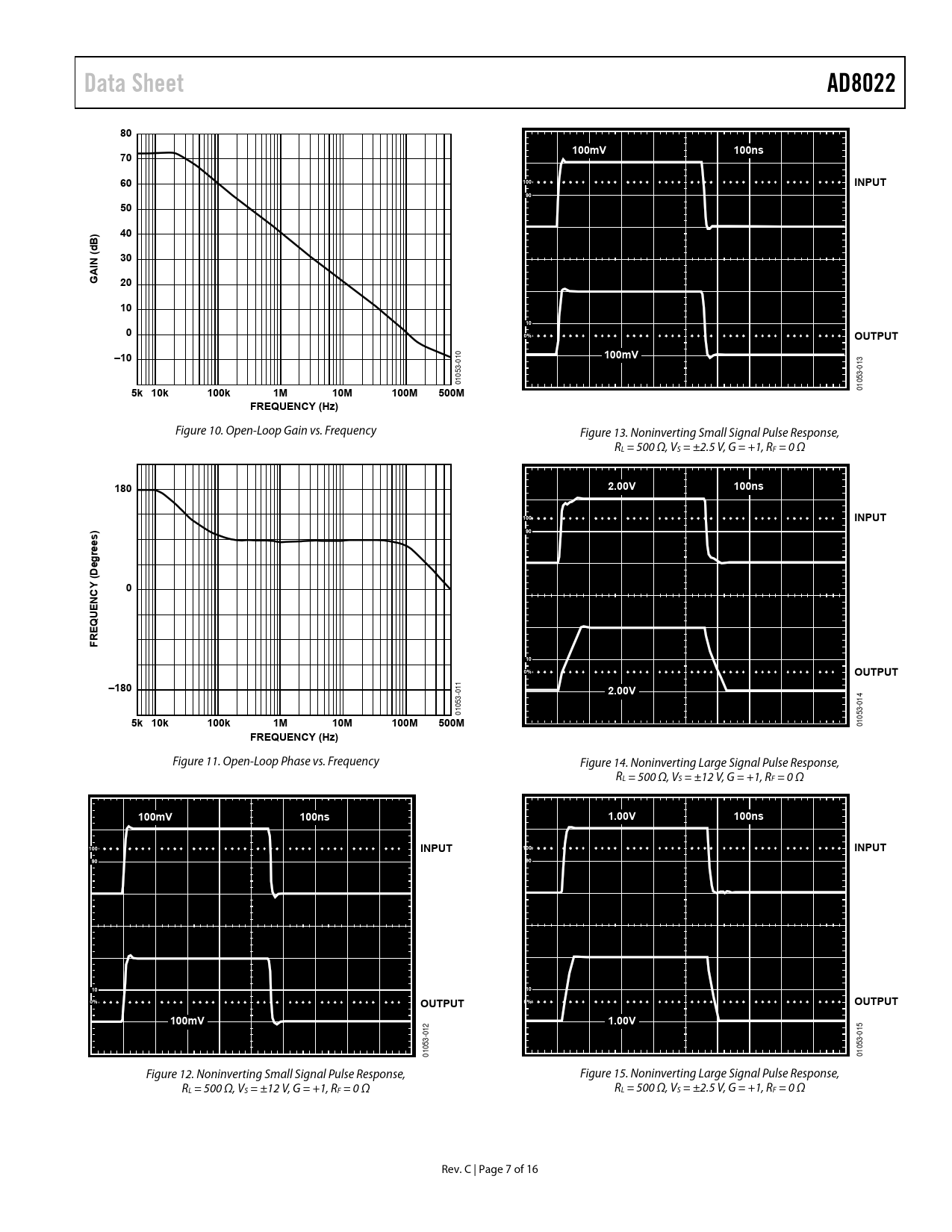

Figure 10. Open-Loop Gain vs. Frequency Figure 13. Noninverting Small Signal Pulse Response, RL = 500 Ω, VS = ±2.5 V, G = +1, RF = 0 Ω
180 2.00V 100ns 100 INPUT 90 ees) (Degr 0 NCY QUE FRE 10 0% OUTPUT –180 2.00V
01053-011
5k 10k 100k 1M 10M 100M 500M
01053-014
FREQUENCY (Hz)
Figure 11. Open-Loop Phase vs. Frequency Figure 14. Noninverting Large Signal Pulse Response, RL = 500 Ω, VS = ±12 V, G = +1, RF = 0 Ω
100mV 100ns 1.00V 100ns 100 INPUT 100 INPUT 90 90 10 10 0% OUTPUT 0% OUTPUT 100mV 1.00V
01053-012 01053-015 Figure 12. Noninverting Small Signal Pulse Response, Figure 15. Noninverting Large Signal Pulse Response, RL = 500 Ω, VS = ±12 V, G = +1, RF = 0 Ω RL = 500 Ω, VS = ±2.5 V, G = +1, RF = 0 Ω Rev. C | Page 7 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTIONS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS MAXIMUM POWER DISSIPATION ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS DMT MODULATION AND MULTITONE POWER RATIO (MTPR) CHANNEL CAPACITY AND SNR POWER SUPPLY AND DECOUPLING LAYOUT CONSIDERATIONS OUTLINE DIMENSIONS ORDERING GUIDE
