Datasheet AD8023 (Analog Devices) - 7
| 制造商 | Analog Devices |
| 描述 | High Current Output, Triple Video Amplifier |
| 页数 / 页 | 11 / 7 — AD8023. 100k. – 10k. VIN. TRANSIMPEDANCE. 100. 10k. 10M. 100M. FREQUENCY … |
| 修订版 | A |
| 文件格式/大小 | PDF / 567 Kb |
| 文件语言 | 英语 |
AD8023. 100k. – 10k. VIN. TRANSIMPEDANCE. 100. 10k. 10M. 100M. FREQUENCY – Hz. 1600. G = –1. G = +2. 1400. 1200. G = +1. 1000. V/ –. G = +10. 800. 600
该数据表的模型线
文件文字版本
AD8023 100k – 10k VIN 1k TRANSIMPEDANCE 100 VO 10 1k 10k 100k 1M 10M 100M 1G FREQUENCY – Hz

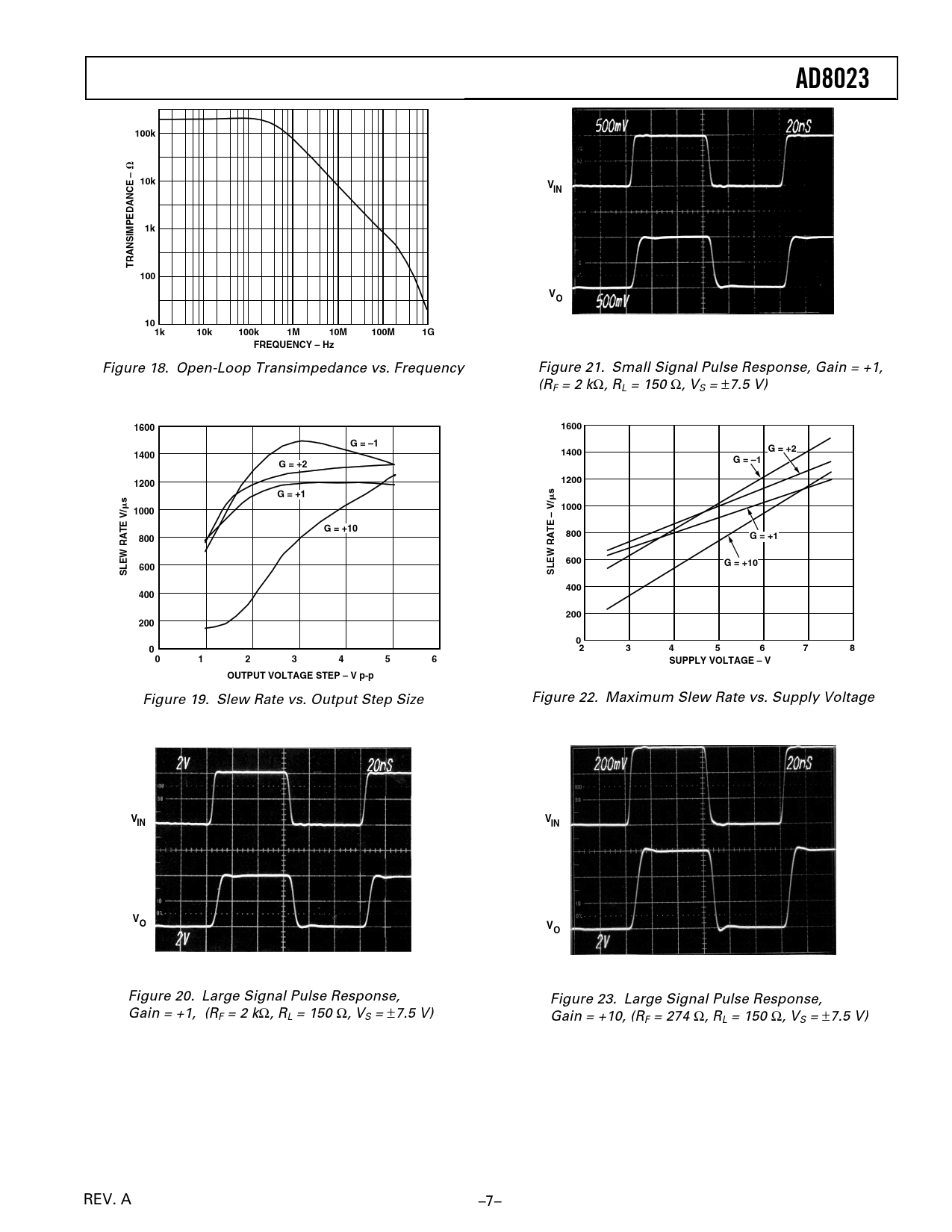

Figure 18. Open-Loop Transimpedance vs. Frequency Figure 21. Small Signal Pulse Response, Gain = +1, (RF = 2 kΩ, RL = 150 Ω, VS = ±7.5 V)
1600 1600 G = –1 G = +2 1400 1400 G = –1 G = +2 1200 1200 G = +1 s s 1000 1000 V/ – G = +10 800 800 G = +1 600 600 G = +10 SLEW RATE V/ SLEW RATE 400 400 200 200 0 0 2 3 4 5 6 7 8 0 1 2 3 4 5 6 SUPPLY VOLTAGE – V OUTPUT VOLTAGE STEP – V p-p
Figure 19. Slew Rate vs. Output Step Size Figure 22. Maximum Slew Rate vs. Supply Voltage
V V IN IN VO VO
Figure 20. Large Signal Pulse Response, Figure 23. Large Signal Pulse Response, Gain = +1, (RF = 2 kΩ, RL = 150 Ω, VS = ±7.5 V) Gain = +10, (RF = 274 Ω, RL = 150 Ω, VS = ±7.5 V) REV. A –7–
