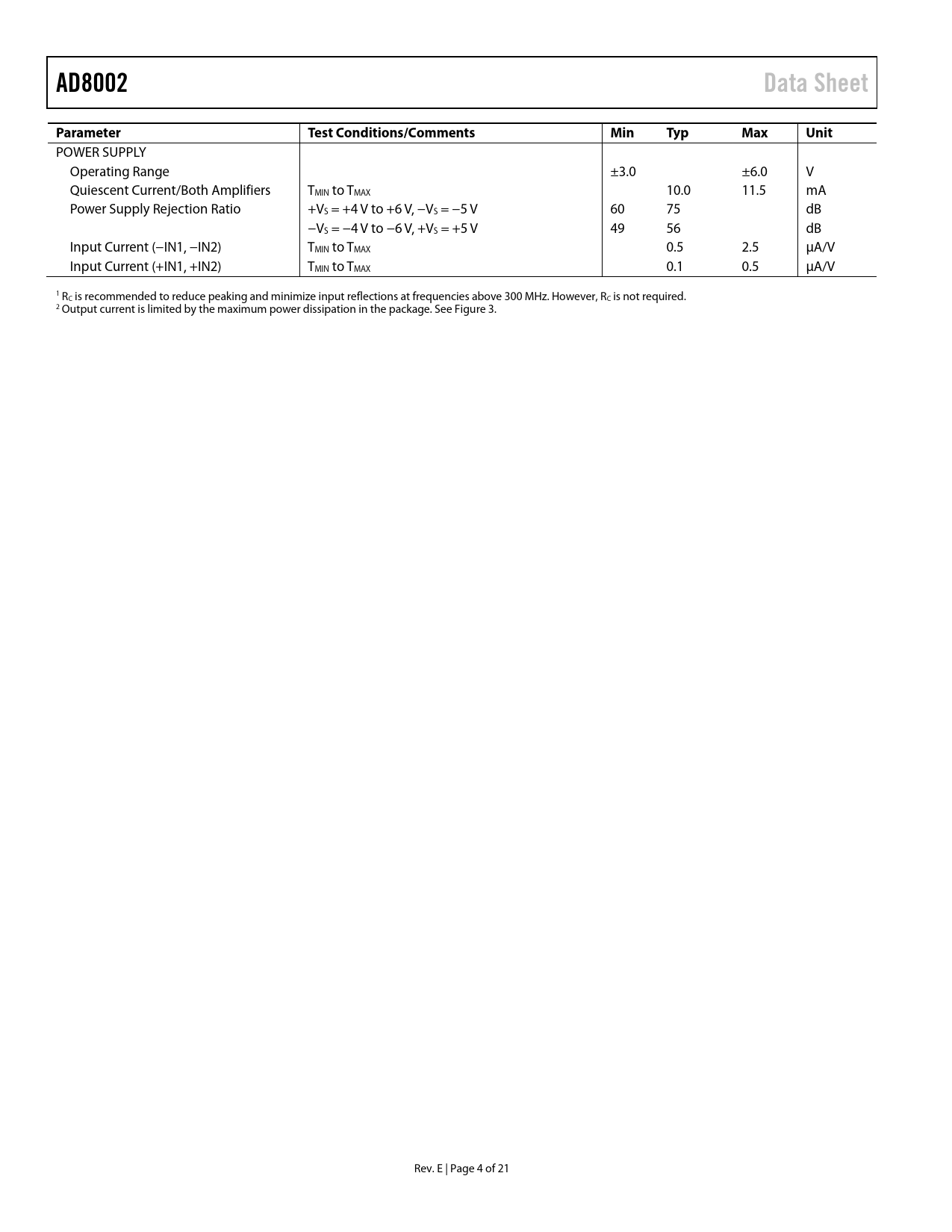

AD8002 Data Sheet Parameter Test Conditions/Comments Min Typ Max Unit
POWER SUPPLY Operating Range ±3.0 ±6.0 V Quiescent Current/Both Amplifiers TMIN to TMAX 10.0 11.5 mA Power Supply Rejection Ratio +VS = +4 V to +6 V, −VS = −5 V 60 75 dB −VS = −4 V to −6 V, +VS = +5 V 49 56 dB Input Current (−IN1, −IN2) TMIN to TMAX 0.5 2.5 µA/V Input Current (+IN1, +IN2) TMIN to TMAX 0.1 0.5 µA/V 1 RC is recommended to reduce peaking and minimize input reflections at frequencies above 300 MHz. However, RC is not required. 2 Output current is limited by the maximum power dissipation in the package. See Figure 3. Rev. E | Page 4 of 21 Document Outline Features Applications General Description Pin Connection Block Diagram Table of Contents Revision History Specifications Absolute Maximum Ratings Maximum Power Dissipation ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Theory of Operation Choice of Feedback and Gain Resistors Printed Circuit Board (PCB) Layout Considerations Power Supply Bypassing DC Errors and Noise Driving Capacitive Loads Communications Operation as a Video Line Driver Driving ADCs Single-Ended-to-Differential Driver Using an AD8002 Applications Information Layout Considerations Outline Dimensions Ordering Guide
