Datasheet OP275 (Analog Devices) - 3
| 制造商 | Analog Devices |
| 描述 | Bipolar/JFET, Audio Dual Op Amp |
| 页数 / 页 | 12 / 3 — OP275–SPECIFICATIONS. OP275. ABSOLUTE MAXIMUM RATINGS1. Package Type. JC … |
| 修订版 | C |
| 文件格式/大小 | PDF / 289 Kb |
| 文件语言 | 英语 |
OP275–SPECIFICATIONS. OP275. ABSOLUTE MAXIMUM RATINGS1. Package Type. JC Unit. ORDERING GUIDE. Model Temperature Range
该数据表的模型线
文件文字版本

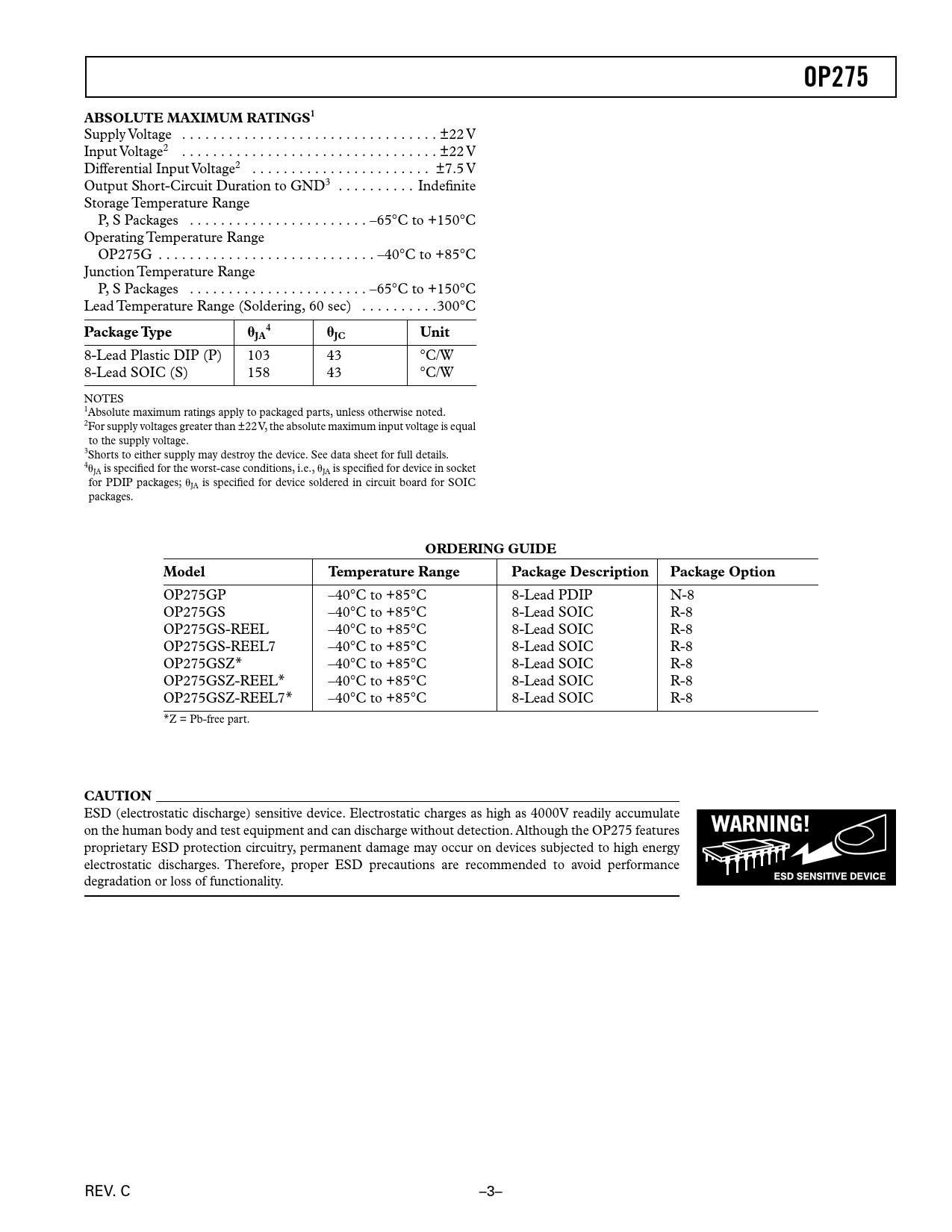

OP275–SPECIFICATIONS OP275 ABSOLUTE MAXIMUM RATINGS1
Supply Voltage . ±22 V Input Voltage2 . ±22 V Differential Input Voltage2 . ±7.5 V Output Short-Circuit Duration to GND3 . Indefinite Storage Temperature Range P, S Packages . –65°C to +150°C Operating Temperature Range OP275G . –40°C to +85°C Junction Temperature Range P, S Packages . –65°C to +150°C Lead Temperature Range (Soldering, 60 sec) . .300°C
Package Type
4 JA
JC Unit
8-Lead Plastic DIP (P) 103 43 °C/W 8-Lead SOIC (S) 158 43 °C/W NOTES 1Absolute maximum ratings apply to packaged parts, unless otherwise noted. 2For supply voltages greater than ±22 V, the absolute maximum input voltage is equal to the supply voltage. 3Shorts to either supply may destroy the device. See data sheet for full details. 4JA is specified for the worst-case conditions, i.e., JA is specified for device in socket for PDIP packages; JA is specified for device soldered in circuit board for SOIC packages.
ORDERING GUIDE Model Temperature Range Package Description Package Option
OP275GP –40°C to +85°C 8-Lead PDIP N-8 OP275GS –40°C to +85°C 8-Lead SOIC R-8 OP275GS-REEL –40°C to +85°C 8-Lead SOIC R-8 OP275GS-REEL7 –40°C to +85°C 8-Lead SOIC R-8 OP275GSZ* –40°C to +85°C 8-Lead SOIC R-8 OP275GSZ-REEL* –40°C to +85°C 8-Lead SOIC R-8 OP275GSZ-REEL7* –40°C to +85°C 8-Lead SOIC R-8 *Z = Pb-free part.
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although the OP275 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. –2– REV. C REV. C –3– Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONNECTIONS SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ORDERING GUIDE Typical Performance Characteristics APPLICATIONS Circuit Protection Total Harmonic Distortion Noise Noise Testing Input Overcurrent Protection Output Voltage Phase Reversal Overload or Overdrive Recovery Measuring Settling Time Driving Capacitive Loads High Speed, Low Noise Differential Line Driver A 3-Pole, 40 kHz Low-Pass Filter OP275 SPICE Model OUTLINE DIMENSIONS Revision History
