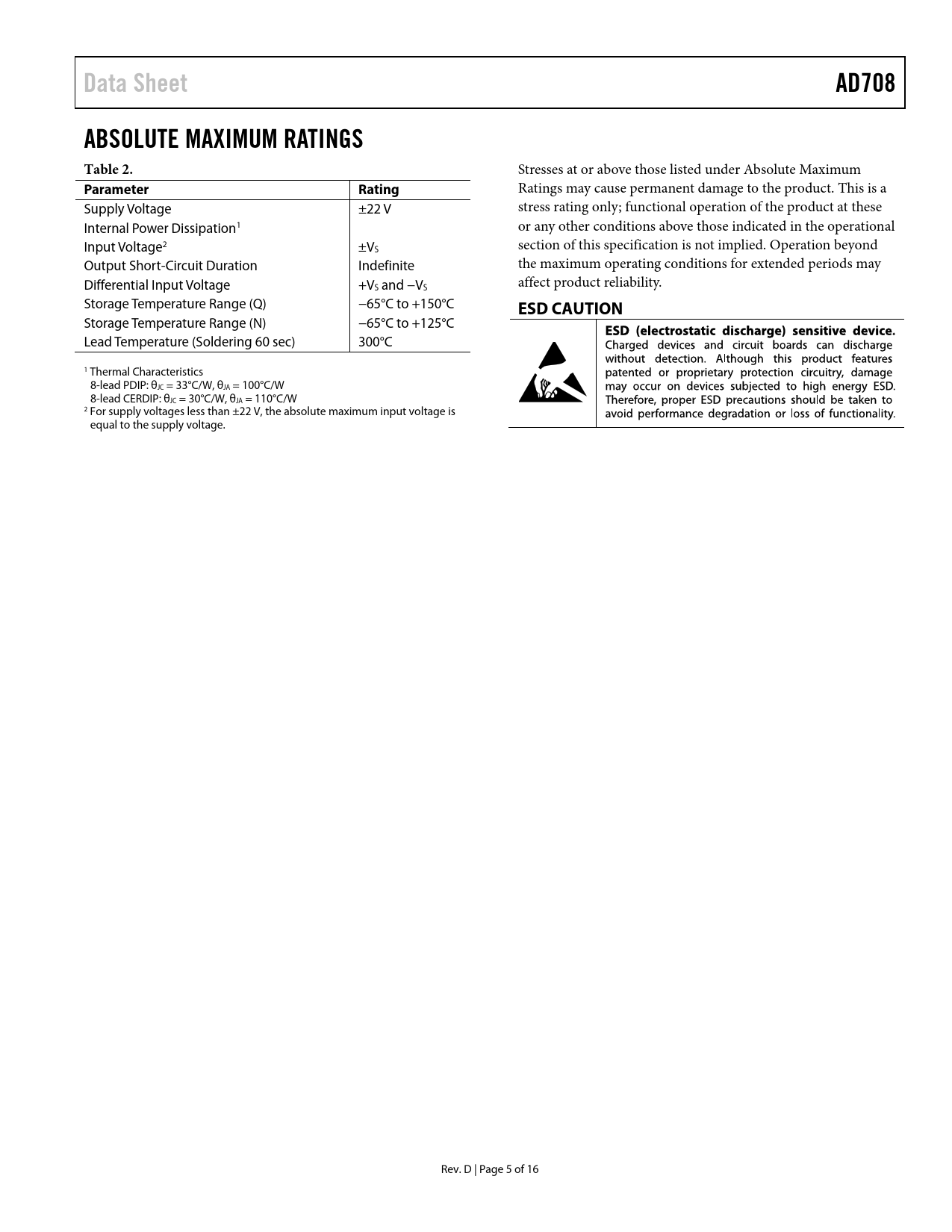

Data Sheet AD708 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a Supply Voltage ±22 V stress rating only; functional operation of the product at these Internal Power Dissipation1 or any other conditions above those indicated in the operational Input Voltage2 ±VS section of this specification is not implied. Operation beyond Output Short-Circuit Duration Indefinite the maximum operating conditions for extended periods may Differential Input Voltage +VS and −VS affect product reliability. Storage Temperature Range (Q) −65°C to +150°C
ESD CAUTION
Storage Temperature Range (N) −65°C to +125°C Lead Temperature (Soldering 60 sec) 300°C 1 Thermal Characteristics 8-lead PDIP: θJC = 33°C/W, θJA = 100°C/W 8-lead CERDIP: θJC = 30°C/W, θJA = 110°C/W 2 For supply voltages less than ±22 V, the absolute maximum input voltage is equal to the supply voltage. Rev. D | Page 5 of 16 Document Outline Features Pin Configuration General Description Product Highlights Revision History Specifications Absolute Maximum Ratings ESD Caution Typical Performance Characteristics Matching Characteristics Theory of Operation Crosstalk Performance Operation with a Gain of −100 High Precision Programmable Gain Amplifier Bridge Signal Conditioner Precision Absolute Value Circuit Selection of Passive Components Outline Dimensions Ordering Guide
