Datasheet OP270S (Analog Devices) - 2

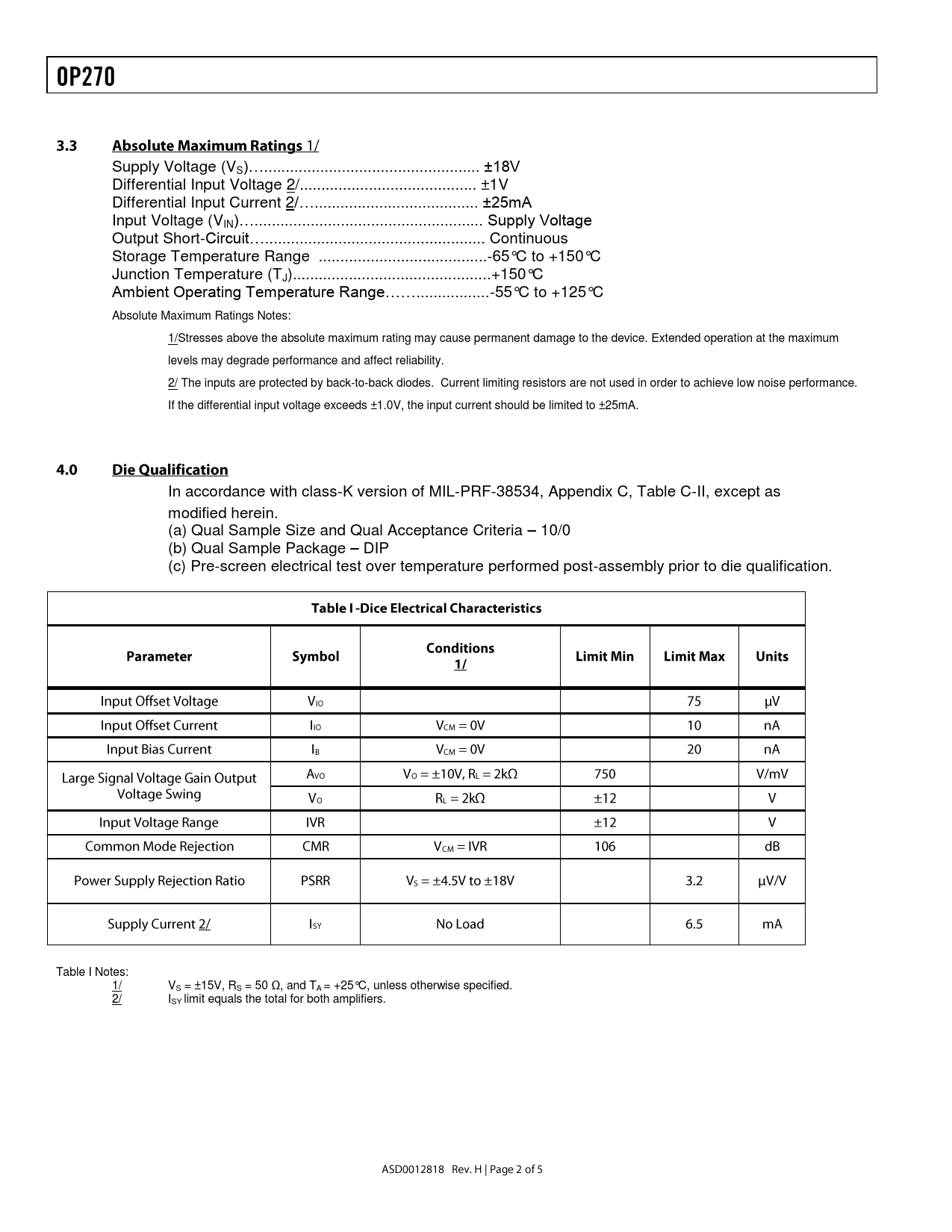

Supply Voltage (V )….. ±18V S Differential Input Voltage 2/... ±1V Differential Input Current 2/….. ±25mA Input Voltage (V )…... Supply Voltage IN Output Short-Circuit…... Continuous Storage Temperature Range ...-65°C to +150°C Junction Temperature (TJ)..+150°C Ambient Operating Temperature Range……...-55°C to +125°C Absolute Maximum Ratings Notes: 1/Stresses above the absolute maximum rating may cause permanent damage to the device. Extended operation at the maximum levels may degrade performance and affect reliability. 2/ The inputs are protected by back-to-back diodes. Current limiting resistors are not used in order to achieve low noise performance. If the differential input voltage exceeds ±1.0V, the input current should be limited to ±25mA. In accordance with class-K version of MIL-PRF-38534, Appendix C, Table C-II, except as modified herein. (a) Qual Sample Size and Qual Acceptance Criteria – 10/0 (b) Qual Sample Package – DIP (c) Pre-screen electrical test over temperature performed post-assembly prior to die qualification. Table I Notes: 1/ VS = ±15V, RS = 50 Ω, and TA = +25°C, unless otherwise specified. 2/ ISY limit equals the total for both amplifiers.
