TW070J120B. Fig. 8.13. PD. -. Tc. Fig. 8.14. IDR. -. VDS. (Guaranteed. Maximum). Fig. 8.15. Rth(ch-c). -. tw. (Guaranteed. Maximum). Fig. 8.16. Safe. Operating. Area
该数据表的模型线
文件文字版本

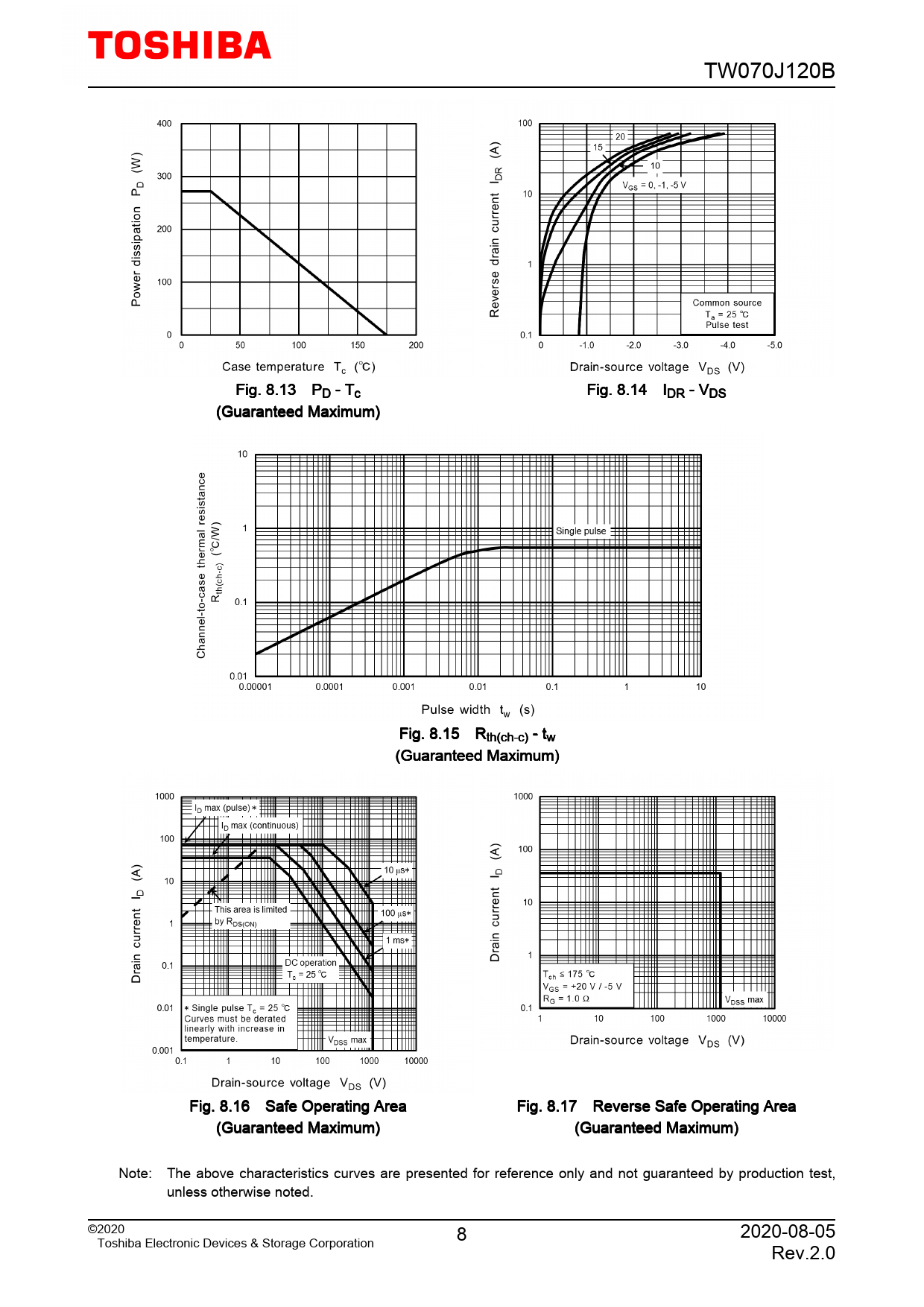

TW070J120B Fig. 8.13 PD - Tc Fig. 8.14 IDR - VDS (Guaranteed Maximum) Fig. 8.15 Rth(ch-c) - tw (Guaranteed Maximum) Fig. 8.16 Safe Operating Area Fig. 8.17 Reverse Safe Operating Area (Guaranteed Maximum) (Guaranteed Maximum) Note: The above characteristics curves are presented for reference only and not guaranteed by production test, unless otherwise noted. ©2020 8 2020-08-05 Toshiba Electronic Devices & Storage Corporation Rev.2.0
