Part No. 1004795 / 1004796. 1004795 / 1004796 Universal Broadband Embedded LTE Antenna Specifications
该数据表的模型线
文件文字版本

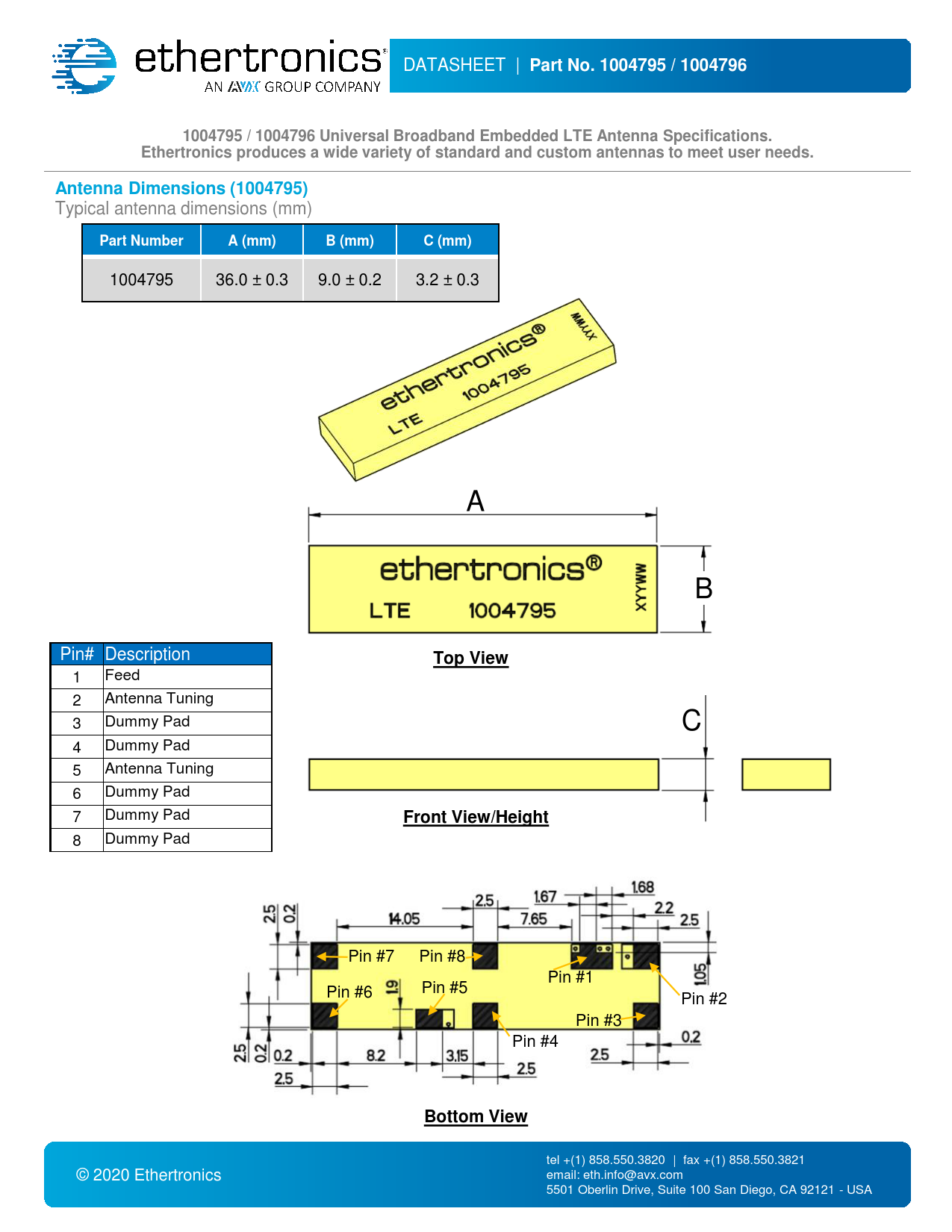

DATASHEET |
Part No. 1004795 / 1004796 1004795 / 1004796 Universal Broadband Embedded LTE Antenna Specifications. Ethertronics produces a wide variety of standard and custom antennas to meet user needs. Antenna Dimensions (1004795)
Typical antenna dimensions (mm)
Part Number A (mm) B (mm) C (mm)
1004795 36.0 ± 0.3 9.0 ± 0.2 3.2 ± 0.3 A B Pin# Description
Top View
1 Feed 2 Antenna Tuning 3 Dummy Pad C 4 Dummy Pad 5 Antenna Tuning 6 Dummy Pad 7 Dummy Pad
Front View/Height
8 Dummy Pad Pin #7 Pin #8 Pin #1 Pin #5 Pin #6 Pin #2 Pin #3 Pin #4
Bottom View
