MYTNA1R86RELA2RA

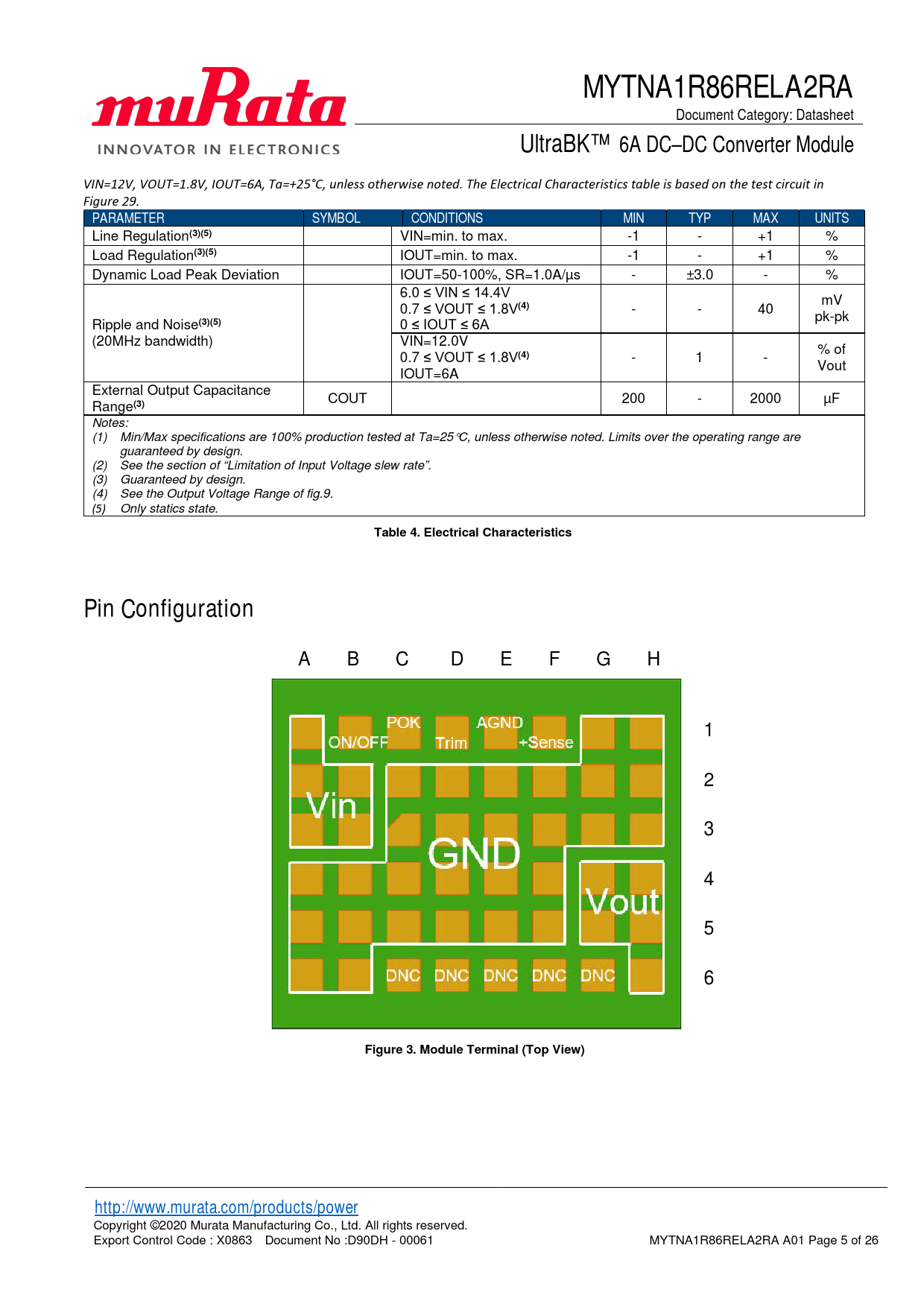

Document Category: Datasheet UltraBK™ 6A DC–DC Converter Module
VIN=12V, VOUT=1.8V, IOUT=6A, Ta=+25°C, unless otherwise noted. The Electrical Characteristics table is based on the test circuit in
Figure 29.
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
Line Regulation(3)(5)
VIN=min. to max.
-1
+1
%
Load Regulation(3)(5)
IOUT=min. to max.
-1
+1
%
Dynamic Load Peak Deviation
IOUT=50-100%, SR=1.0A/µs
±3.0
%
6.0 ≤ VIN ≤ 14.4V
mV
0.7 ≤ VOUT ≤ 1.8V(4)
40
pk-pk
(3)(5)
0 ≤ IOUT ≤ 6A
Ripple and Noise
(20MHz bandwidth)
VIN=12.0V
% of
0.7 ≤ VOUT ≤ 1.8V(4)
1
Vout
IOUT=6A
External Output Capacitance
COUT
200
2000
µF
Range(3)
Notes:
(1) Min/Max specifications are 100% production tested at Ta=25°C, unless otherwise noted. Limits over the operating range are
guaranteed by design.
(2) See the section of “Limitation of Input Voltage slew rate”.
(3) Guaranteed by design.
(4) See the Output Voltage Range of fig.9.
(5) Only statics state.
Table 4. Electrical Characteristics Pin Configuration
A B C D E F G H 1
2
3
4
5
6 Figure 3. Module Terminal (Top View) http://www.murata.com/products/power
