MYTNA1R86RELA2RA
Document Category: Datasheet UltraBK™ 6A DC–DC Converter Module

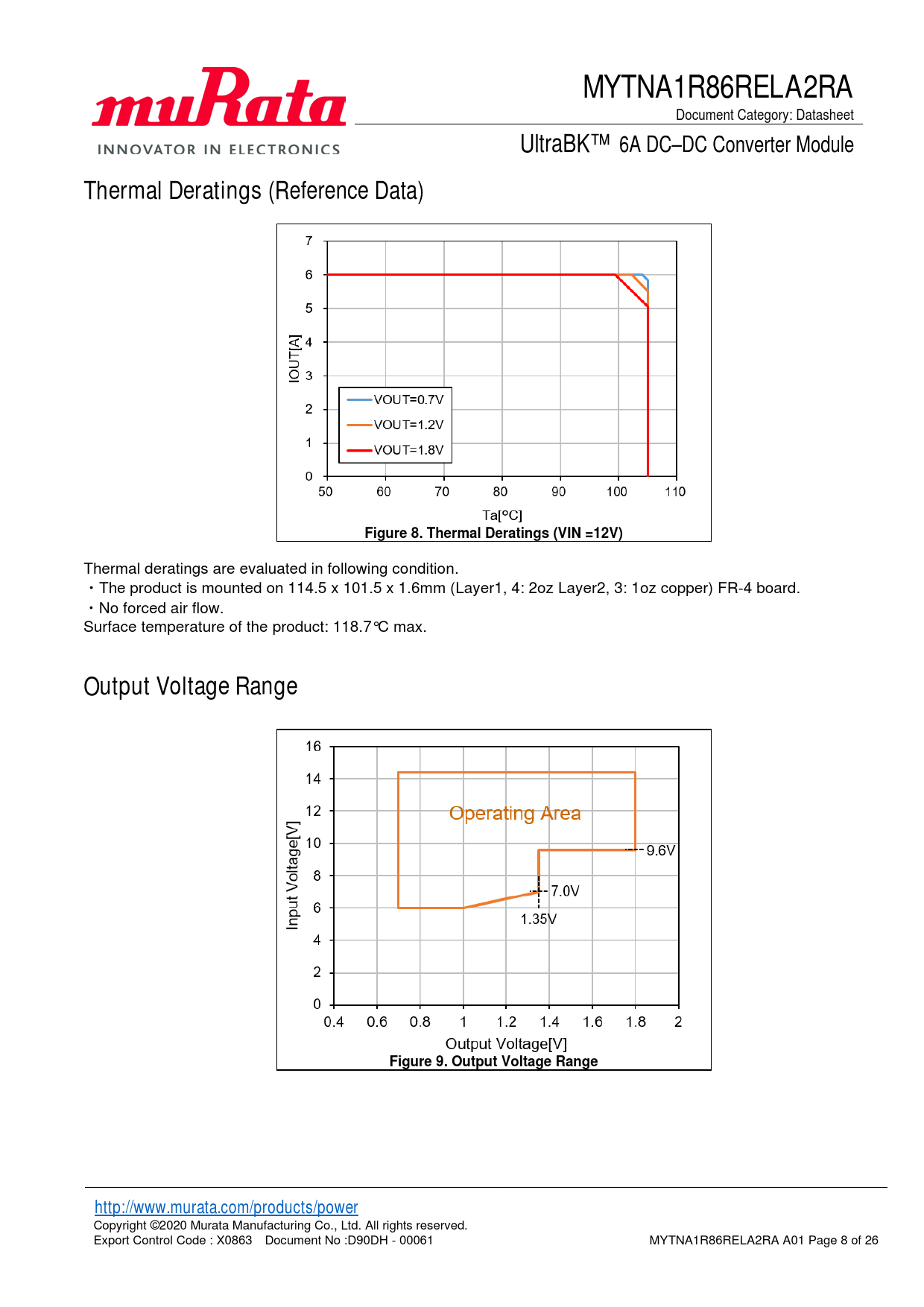

Thermal Deratings (Reference Data) Figure 8. Thermal Deratings (VIN =12V) Thermal deratings are evaluated in following condition.
・The product is mounted on 114.5 x 101.5 x 1.6mm (Layer1, 4: 2oz Layer2, 3: 1oz copper) FR-4 board.
・No forced air flow.
Surface temperature of the product: 118.7°C max. Output Voltage Range Figure 9. Output Voltage Range http://www.murata.com/products/power
Copyright ©2020 Murata Manufacturing Co., Ltd. All rights reserved.
Export Control Code : X0863 Document No :D90DH -00061 MYTNA1R86RELA2RA A01 Page 8 of 26
