Datasheet BV2HD045EFU-C (Rohm) - 9

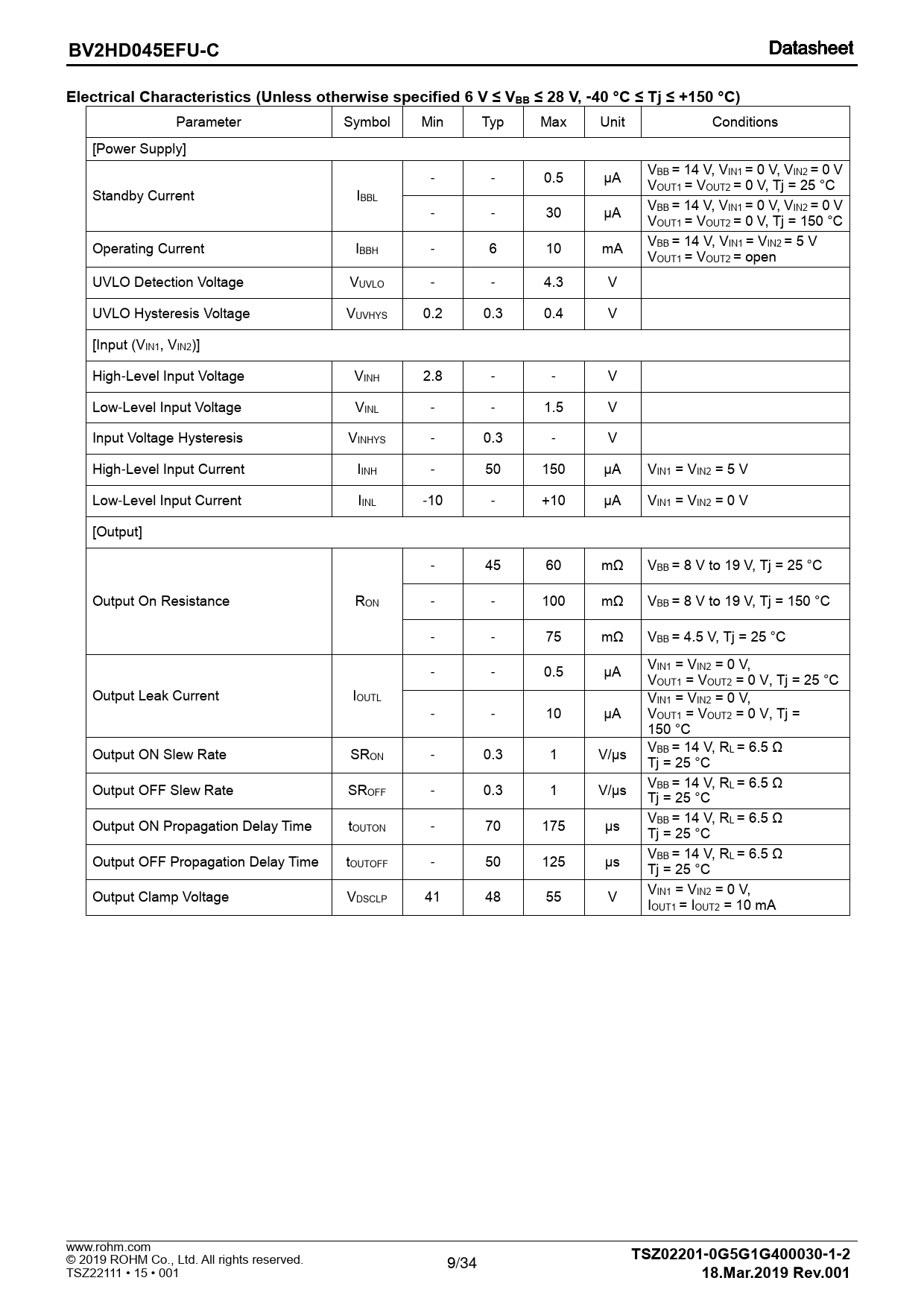

BV2HD045EFU-C Electrical Characteristics (Unless otherwise specified 6 V ≤ VBB ≤ 28 V, -40 °C ≤ Tj ≤ +150 °C)
Parameter Symbol Min Typ Max Unit Conditions [Power Supply] VBB = 14 V, VIN1 = 0 V, VIN2 = 0 V - - 0.5 µA V Standby Current OUT1 = VOUT2 = 0 V, Tj = 25 °C IBBL VBB = 14 V, VIN1 = 0 V, VIN2 = 0 V - - 30 µA VOUT1 = VOUT2 = 0 V, Tj = 150 °C Operating Current VBB = 14 V, VIN1 = VIN2 = 5 V IBBH - 6 10 mA VOUT1 = VOUT2 = open UVLO Detection Voltage VUVLO - - 4.3 V UVLO Hysteresis Voltage VUVHYS 0.2 0.3 0.4 V [Input (VIN1, VIN2)] High-Level Input Voltage VINH 2.8 - - V Low-Level Input Voltage VINL - - 1.5 V Input Voltage Hysteresis VINHYS - 0.3 - V High-Level Input Current IINH - 50 150 µA VIN1 = VIN2 = 5 V Low-Level Input Current IINL -10 - +10 µA VIN1 = VIN2 = 0 V [Output] - 45 60 mΩ VBB = 8 V to 19 V, Tj = 25 °C Output On Resistance RON - - 100 mΩ VBB = 8 V to 19 V, Tj = 150 °C - - 75 mΩ VBB = 4.5 V, Tj = 25 °C VIN1 = VIN2 = 0 V, - - 0.5 µA VOUT1 = VOUT2 = 0 V, Tj = 25 °C Output Leak Current IOUTL VIN1 = VIN2 = 0 V, - - 10 µA VOUT1 = VOUT2 = 0 V, Tj = 150 °C Output ON Slew Rate VBB = 14 V, RL = 6.5 Ω SRON - 0.3 1 V/µs Tj = 25 °C Output OFF Slew Rate VBB = 14 V, RL = 6.5 Ω SROFF - 0.3 1 V/µs Tj = 25 °C V Output ON Propagation Delay Time BB = 14 V, RL = 6.5 Ω tOUTON - 70 175 µs Tj = 25 °C V Output OFF Propagation Delay Time BB = 14 V, RL = 6.5 Ω tOUTOFF - 50 125 µs Tj = 25 °C Output Clamp Voltage VIN1 = VIN2 = 0 V, VDSCLP 41 48 55 V IOUT1 = IOUT2 = 10 mA www.rohm.com
TSZ02201
9
-0G5G1G400030-1-2
© 2019 ROHM Co., Ltd. All rights reserved. /34 TSZ22111 • 15 • 001
18.Mar.2019 Rev.001
Document Outline General Description Features Applications Key Specifications Package Typical Application Circuit Table of Contents Pin Configuration Pin Description Block Diagram Definition Absolute Maximum Ratings Thermal Resistance Recommended Operating Conditions Electrical Characteristics Typical Performance Curves Figure 6. Standby Current vs Supply Voltage Figure 7. Standby Current vs Junction Temperature Figure 8. Operating Current vs Supply Voltage Figure 9. Operating Current vs Junction Temperature Figure 10. UVLO Detection Voltage vs Junction Temperature Figure 11. Input Voltage vs Junction Temperature Figure 12. Input Current vs Junction Temperature Figure 13. Output ON Resistance vs Supply Voltage Figure 14. Output ON Resistance vs Junction Temperature Figure 15. Output leak Current vs Junction Temperature Figure 16. Output Slew Rate vs Junction Temperature Figure 17. Output ON, OFF Propagation Delay Time vs Junction Temperature Figure 18. Output Clamp Voltage vs Junction Temperature Figure 19. Diagnostic Output Low Voltage vs Junction Temperature Figure 20. Diagnostic Output ON, OFF Propagation Delay Time vs Junction Temperature Figure 21. Variable Over Current Limit vs Junction Temperature Figure 22. Open Load Detection Voltage vs Junction Temperature Figure 23. Active Clamp Energy vs Output Current Measurement Circuit Timing Chart (Propagation Delay Time) Function Description 1. Protection Function 2. Over Current Protection 2.1 Over Current Limiting Operation in one side channel 2.2 Over Current Detection in Both Outputs 2.3 Over Current Detection by Other Channel while CDLY is Charging (tDLY) 2.4 Setting of Variable Overcurrent Limit Value 2.5 Variable Over Current Limit Mask Time Setting 2.6 The SET Pin and the DLY Pin Setting 3. Open Load Detection 3.1 When the OUT1, OUT2 is pulled down by the load (Normal function) 3.2 If the SW1 is OFF, the output is no longer pulled down by the load 4. Thermal Shutdown, ΔTj Protection Detection 4.1 Thermal Shutdown Protection 4.2 ΔTj Protection 5. Other Protection 5.1 GND Open Protection 5.2 MCU I/O Protection Applications Example I/O Equivalence Circuits Operational Notes 1. Reverse Connection of Power Supply 2. Power Supply Lines 3. Ground Voltage 4. Ground Wiring Pattern 5. Recommended Operating Conditions 6. Inrush Current 7. Testing on Application Boards 8. Inter-pin Short and Mounting Errors 9. Unused Input Pins 10. Ceramic Capacitor 11. Thermal Shutdown Function (TSD) 12. Over Current Protection Function (OCP) 13. Active Clamp Operation 14. Open Power Supply Pin 15. Open GND Pin Ordering Information Marking Diagram Physical Dimension and Packing Information Revision History
