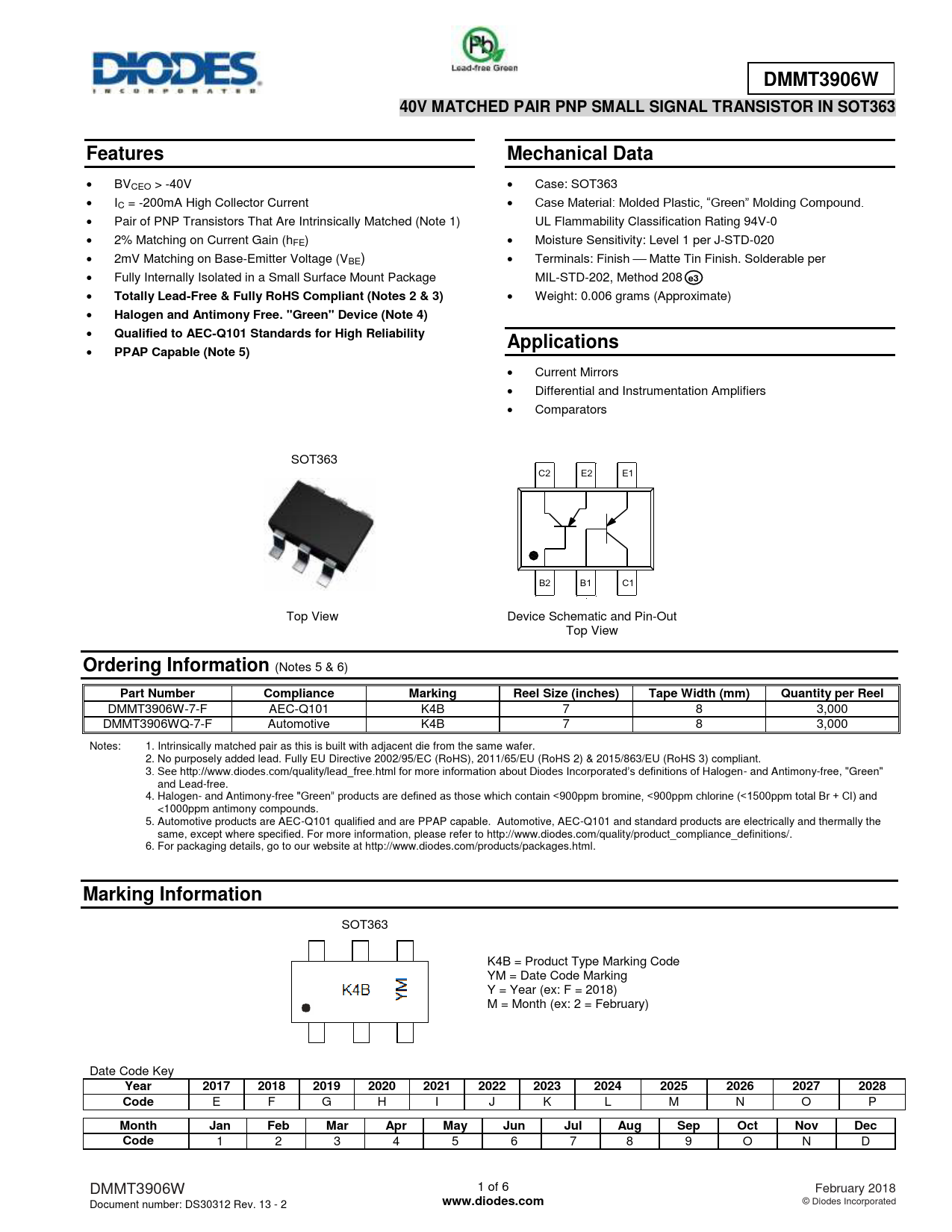

DMMT3906W. 40V MATCHED PAIR PNP SMALL SIGNAL TRANSISTOR IN SOT363. Features. Mechanical Data
该数据表的模型线
文件文字版本
DMMT3906W 40V MATCHED PAIR PNP SMALL SIGNAL TRANSISTOR IN SOT363 Features Mechanical Data
BVCEO > -40V Case: SOT363 IC = -200mA High Collector Current Case Material: Molded Plastic, “Green” Molding Compound. Pair of PNP Transistors That Are Intrinsically Matched (Note 1) UL Flammability Classification Rating 94V-0 2% Matching on Current Gain (hFE) Moisture Sensitivity: Level 1 per J-STD-020 2mV Matching on Base-Emitter Voltage (VBE) Terminals: Finish Matte Tin Finish. Solderable per Fully Internally Isolated in a Small Surface Mount Package MIL-STD-202, Method 208
e3 Totally Lead-Free & Fully RoHS Compliant (Notes 2 & 3)
Weight: 0.006 grams (Approximate)
Halogen and Antimony Free. "Green" Device (Note 4) Qualified to AEC-Q101 Standards for High Reliability Applications PPAP Capable (Note 5)
Current Mirrors Differential and Instrumentation Amplifiers Comparators SOT363 C2 E2 E1 B2 B1 C1 Top View Device Schematic and Pin-Out Top View
Ordering Information
(Notes 5 & 6)
Part Number Compliance Marking Reel Size (inches) Tape Width (mm) Quantity per Reel
DMMT3906W-7-F AEC-Q101 K4B 7 8 3,000 DMMT3906WQ-7-F Automotive K4B 7 8 3,000 Notes: 1. Intrinsically matched pair as this is built with adjacent die from the same wafer. 2. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 3. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 4. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 5. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/. 6. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
SOT363 K4B = Product Type Marking Code YM = Date Code Marking Y = Year (ex: F = 2018) M = Month (ex: 2 = February) Date Code Key
Year 2017 2018 2019 2020 2021 2022 2023 2024 2025 2026 2027 2028 Code
E F G H I J K L M N O P
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Code
1 2 3 4 5 6 7 8 9 O N D DMMT3906W 1 of 6 February 2018 Document number: DS30312 Rev. 13 - 2
