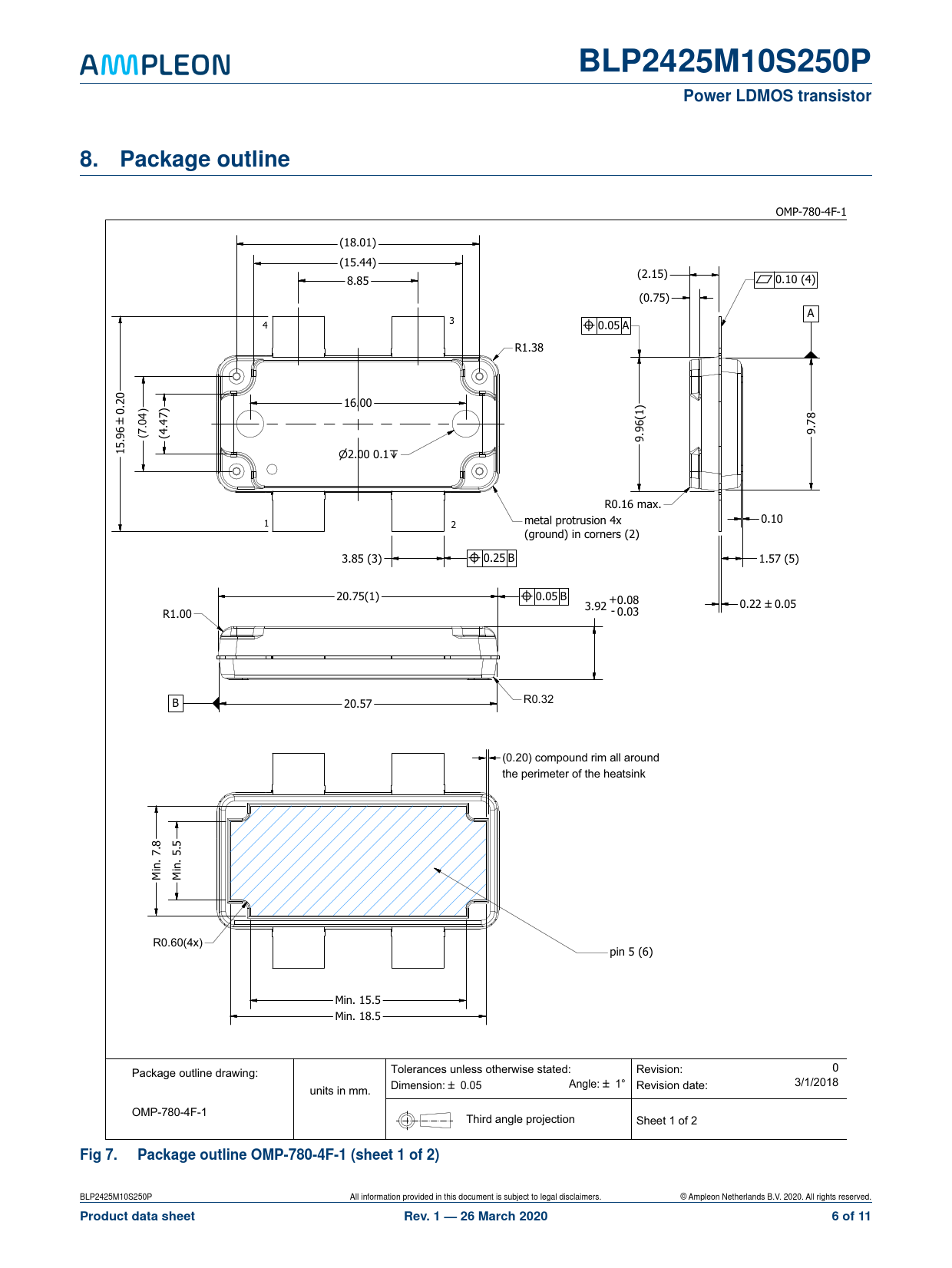

BLP2425M10S250P. Power LDMOS transistor. 8. Package. outline. Fig 7. Package outline OMP-780-4F-1 (sheet 1 of 2)
该数据表的模型线
文件文字版本
BLP2425M10S250P Power LDMOS transistor 8. Package outline
OMP-780-4F-1 (18.01) (15.44) (2.15) 8.85 E 0.10 (4) 0.75 ( ) A 3 4 L 0.05 A R1.38 0 2. 16.00 ) 0 ) 1 4 7 ( 8 B 0 4 . 6 7. 6 7 4 9. 9 9 ( . 9 5 1 P2.00 0.1Z R0.16 max. 1 metal protrusion 4x 0.10 2 (ground) in corners (2) 3.85 (3) L 0.25 B 1.57 (5) 20.75(1) L 0.05 B 0.08 + 0.22 3.92 B0.05 R1.00 - 0.03 R0.32 B 20.57 0. ( 20) compound rim all around the perimeter of the heatsink 8 5 . 7 5 . ni in M M R0.60(4x) pin 5 (6) Min. 15.5 Min. 18.5 0 Package outline drawing: Tolerances unless otherwise stated: Revision: Dimension: B 0.05 Angle: B 1° Revision date: 3/1/2018 units in mm. OMP-780-4F-1 Third angle projection Sheet 1 of 2
Fig 7. Package outline OMP-780-4F-1 (sheet 1 of 2)
BLP2425M10S250P All information provided in this document is subject to legal disclaimers. © Ampleon Netherlands B.V. 2020. All rights reserved.
Product data sheet Rev. 1 — 26 March 2020 6 of 11
