Datasheet HT12D, HT12F (Holtek) - 8
| 制造商 | Holtek |
| 描述 | 212 Series of Decoders |
| 页数 / 页 | 12 / 8 — HT12D/HT12F. Dimensions in mil. Symbol. Min. Nom. Max |
| 文件格式/大小 | PDF / 115 Kb |
| 文件语言 | 英语 |
HT12D/HT12F. Dimensions in mil. Symbol. Min. Nom. Max
该数据表的模型线
文件文字版本

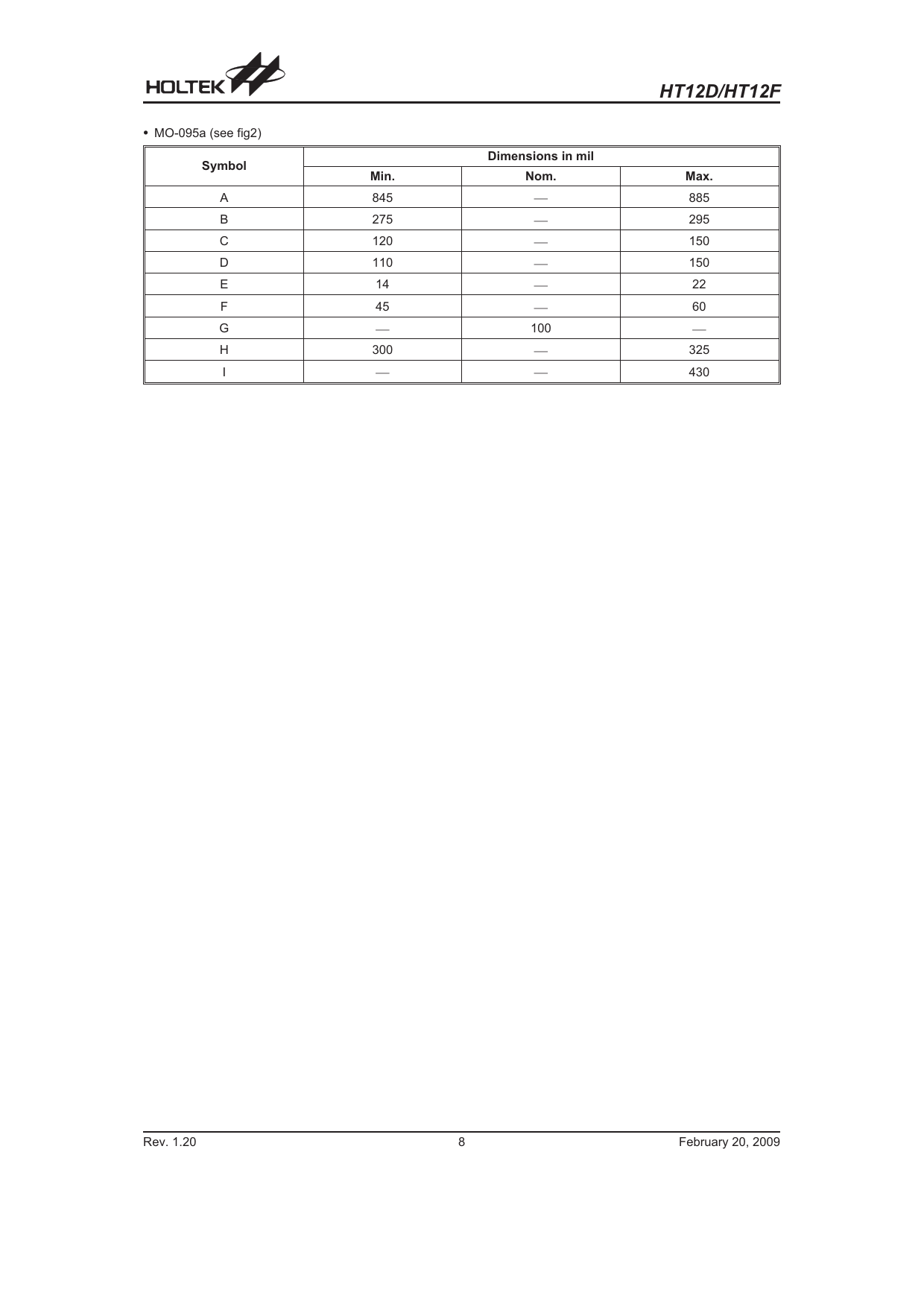

HT12D/HT12F
· MO-095a (see fig2)
Dimensions in mil Symbol Min. Nom. Max.
A 845 ¾ 885 B 275 ¾ 295 C 120 ¾ 150 D 110 ¾ 150 E 14 ¾ 22 F 45 ¾ 60 G ¾ 100 ¾ H 300 ¾ 325 I ¾ ¾ 430 Rev. 1.20 8 February 20, 2009 Document Outline Features Applications General Description Selection Table Block Diagram Pin Assignment Pin Description Absolute Maximum Ratings Electrical Characteristics Functional Description Application Circuits Package Information Product Tape and Reel Specifications
