Datasheet IRG4PH40UD (International Rectifier) - 10
| 制造商 | International Rectifier |
| 描述 | Insulated Gate Bipolar Transistor with Ultrafast Soft Recovery Diode. UltraFast CoPack IGBT |
| 页数 / 页 | 11 / 10 — TO-247AC package is not recommended for Surface Mount Application. IR … |
| 文件格式/大小 | PDF / 347 Kb |
| 文件语言 | 英语 |
TO-247AC package is not recommended for Surface Mount Application. IR WORLD HEADQUARTERS:
该数据表的模型线
文件文字版本

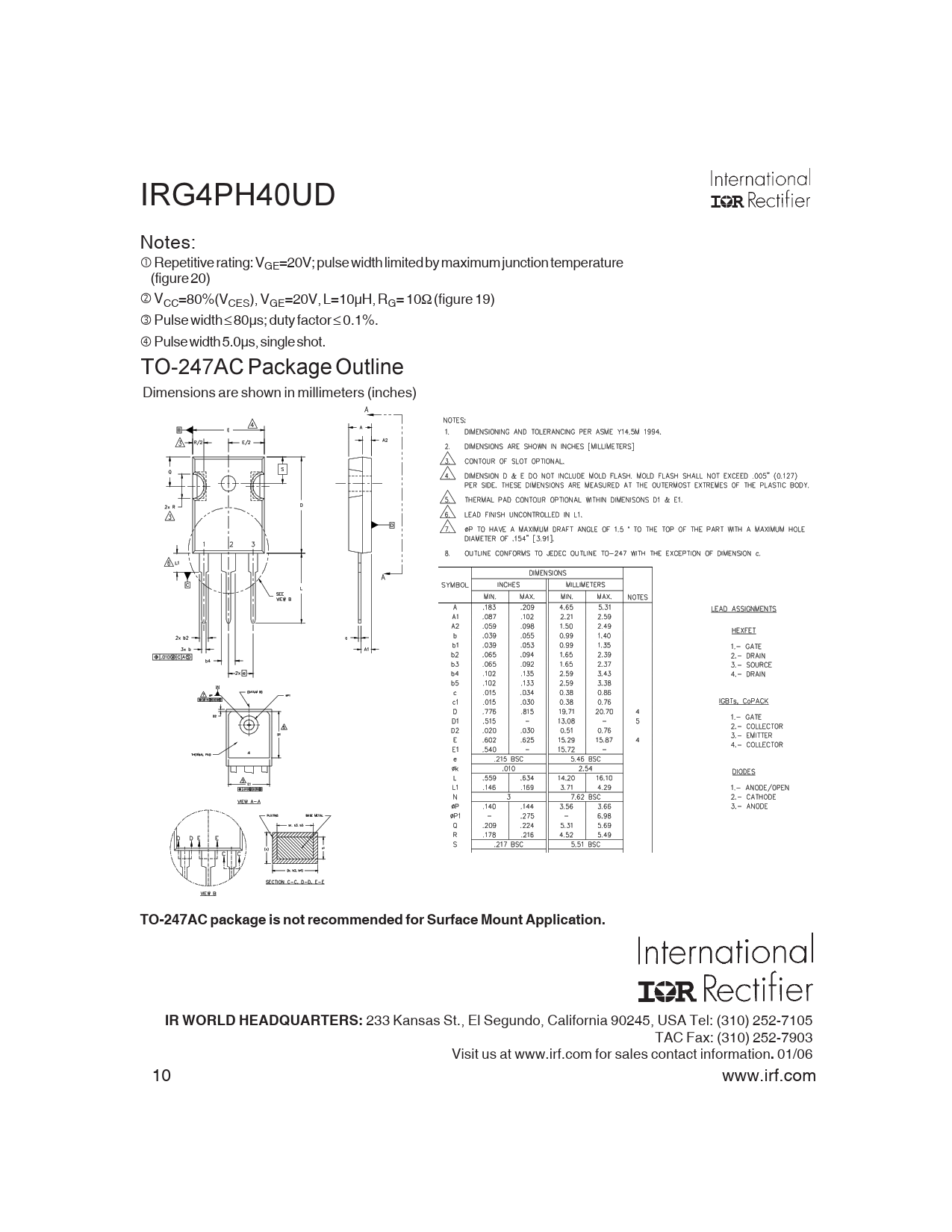

IRG4PH40UD Notes: Repetitive rating: VGE=20V; pulse width limited by maximum junction temperature (figure 20) VCC=80%(VCES), VGE=20V, L=10µH, RG= 10Ω (figure 19) Pulse width ≤ 80µs; duty factor ≤ 0.1%. Pulse width 5.0µs, single shot. TO-247AC Package Outline Dimensions are shown in millimeters (inches)
TO-247AC package is not recommended for Surface Mount Application. IR WORLD HEADQUARTERS:
233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105 TAC Fax: (310) 252-7903 Visit us at www.irf.com for sales contact information
.
01/06 10 www.irf.com
