ZMOD4410 Datasheet

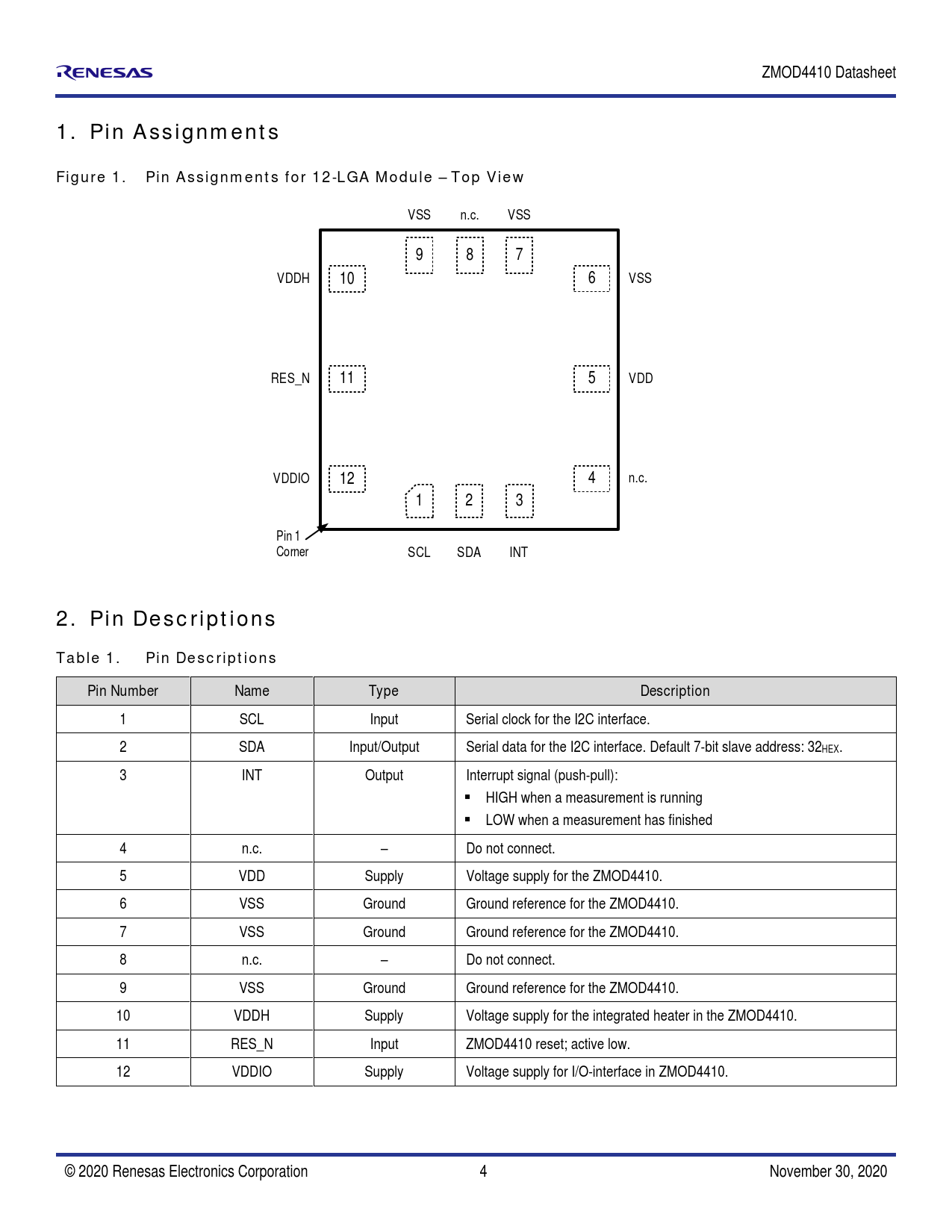

1. Pin Assignments Figure 1. Pin Assignments for 12-LGA Module – Top View
VSS n.c. VSS 9 8 7 VDDH 10 6 VSS RES_N 11 5 VDD VDDIO 12 4 n.c. 1 2 3 Pin 1 Corner SCL SDA INT
2. Pin Descriptions Table 1. Pin Descriptions Pin Number Name Type Description
1 SCL Input Serial clock for the I2C interface. 2 SDA Input/Output Serial data for the I2C interface. Default 7-bit slave address: 32HEX. 3 INT Output Interrupt signal (push-pull): HIGH when a measurement is running LOW when a measurement has finished 4 n.c. – Do not connect. 5 VDD Supply Voltage supply for the ZMOD4410. 6 VSS Ground Ground reference for the ZMOD4410. 7 VSS Ground Ground reference for the ZMOD4410. 8 n.c. – Do not connect. 9 VSS Ground Ground reference for the ZMOD4410. 10 VDDH Supply Voltage supply for the integrated heater in the ZMOD4410. 11 RES_N Input ZMOD4410 reset; active low. 12 VDDIO Supply Voltage supply for I/O-interface in ZMOD4410. © 2020 Renesas Electronics Corporation 4 November 30, 2020 Document Outline 1. Pin Assignments 2. Pin Descriptions 3. Absolute Maximum Ratings 4. Operating Conditions 5. Electrical Characteristics 6. Block Diagram 7. Sensor Module Characteristics 7.1 Gas Sensor Module 8. Gas Sensor Module Operation Modes and Characteristics 8.1 Operation Modes 1–3 8.1.1 Air Quality – UBA Levels 8.1.2 Air Quality – Estimated Carbon Dioxide Correlation (eCO2) 8.2 Operation Mode 4: Odor 8.3 Operation Mode 5: Sulfur based Odor Discrimination 8.4 Conditioning and Stability 8.5 Environmental Temperature and Humidity 8.6 Accuracy and Consistency 9. Assembly Restrictions, Operation, Integration Notes, and Storage 10. Test and Calibration 11. I2C Interface and Data Transmission Protocol 12. Related Websites and Software 13. Glossary 14. Package Outline Drawings 15. Ordering Information 16. Revision History
