DirectFET® Board Footprint, SC (Small Size Can)
该数据表的模型线
文件文字版本
link to page 9 AUIRL7732S2TR

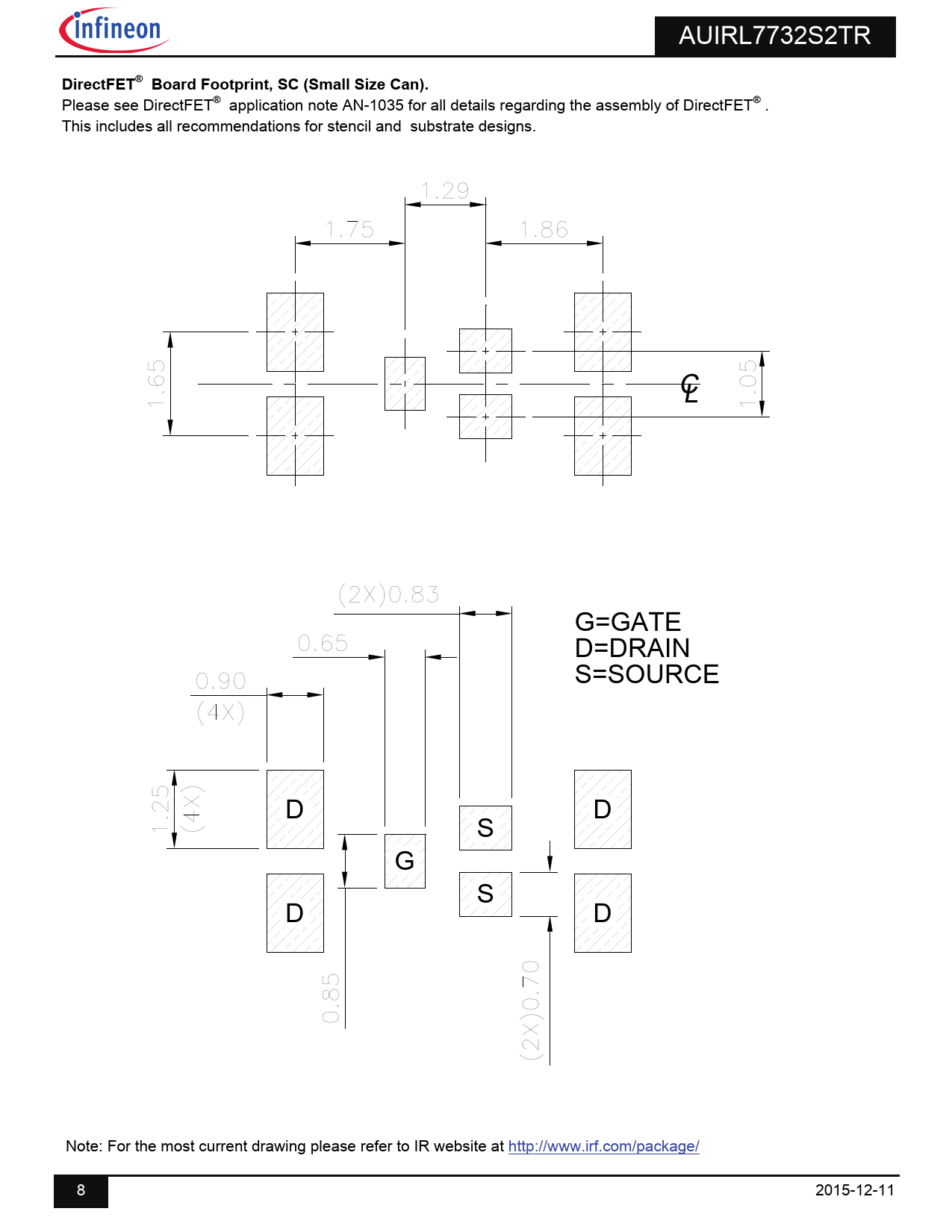

DirectFET® Board Footprint, SC (Small Size Can).
Please see DirectFET
®
application note AN-1035 for all details regarding the assembly of DirectFET
®
. This includes all recommendations for stencil and substrate designs. G=GATE D=DRAIN S=SOURCE D D S G S D D Note: For the most current drawing please refer to IR website at http://www.irf.com/package/ 8 2015-12-11
