Datasheet T1235H-8G (STMicroelectronics) - 6
| 制造商 | STMicroelectronics |
| 描述 | 12 A - 800 V - 150 °C 8H-Triac in D2PAK |
| 页数 / 页 | 12 / 6 — 360°. T1235H-8G. Characteristics (curves). Figure 13. Relative variation … |
| 文件格式/大小 | PDF / 268 Kb |
| 文件语言 | 英语 |

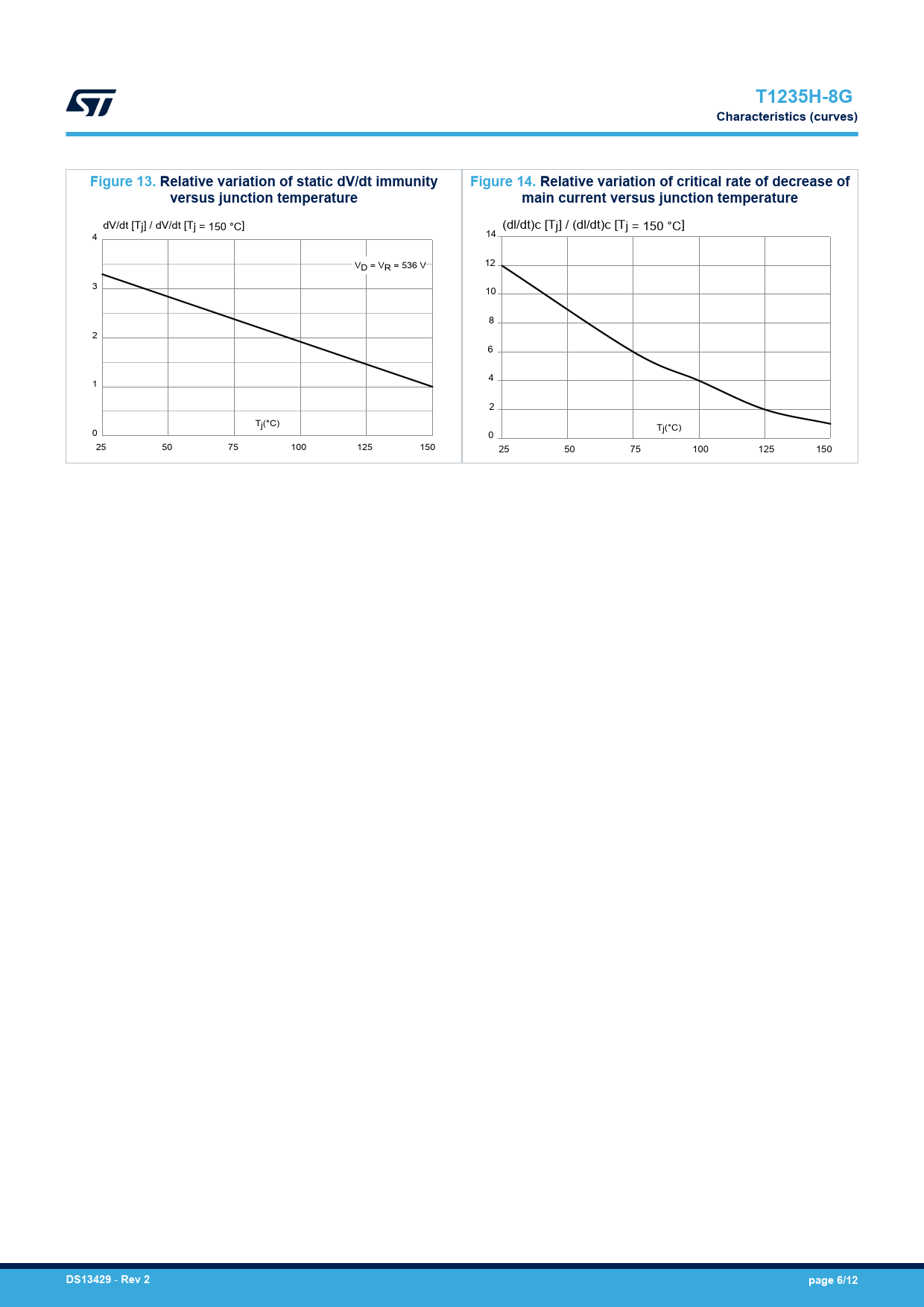

360°. T1235H-8G. Characteristics (curves). Figure 13. Relative variation of static dV/dt immunity
该数据表的模型线
文件文字版本
360° T1235H-8G Characteristics (curves) Figure 13. Relative variation of static dV/dt immunity Figure 14. Relative variation of critical rate of decrease of versus junction temperature main current versus junction temperature
dV/dt [Tj] / dV/dt [Tj = 150 °C] (dl/dt)c [Tj] / (dl/dt)c [Tj = 150 °C] 4 14 V 12 D = VR = 536 V 3 10 8 2 6 4 1 2 Tj(°C) T 0 j(°C) 0 25 50 75 100 125 150 25 50 75 100 125 150
DS13429
-
Rev 2 page 6/12
