| 制造商 | STMicroelectronics |
| 描述 | 20 A - 800 V - 150°C H-series Triac in D²PAK |
| 页数 / 页 | 12 / 2 — T2035H-8G. Characteristics. Table 1. Absolute maximum ratings (limiting … |
| 文件格式/大小 | PDF / 275 Kb |
| 文件语言 | 英语 |
T2035H-8G. Characteristics. Table 1. Absolute maximum ratings (limiting values). Symbol. Parameter. Value. Unit
该数据表的模型线
文件文字版本
link to page 2 link to page 2 link to page 2

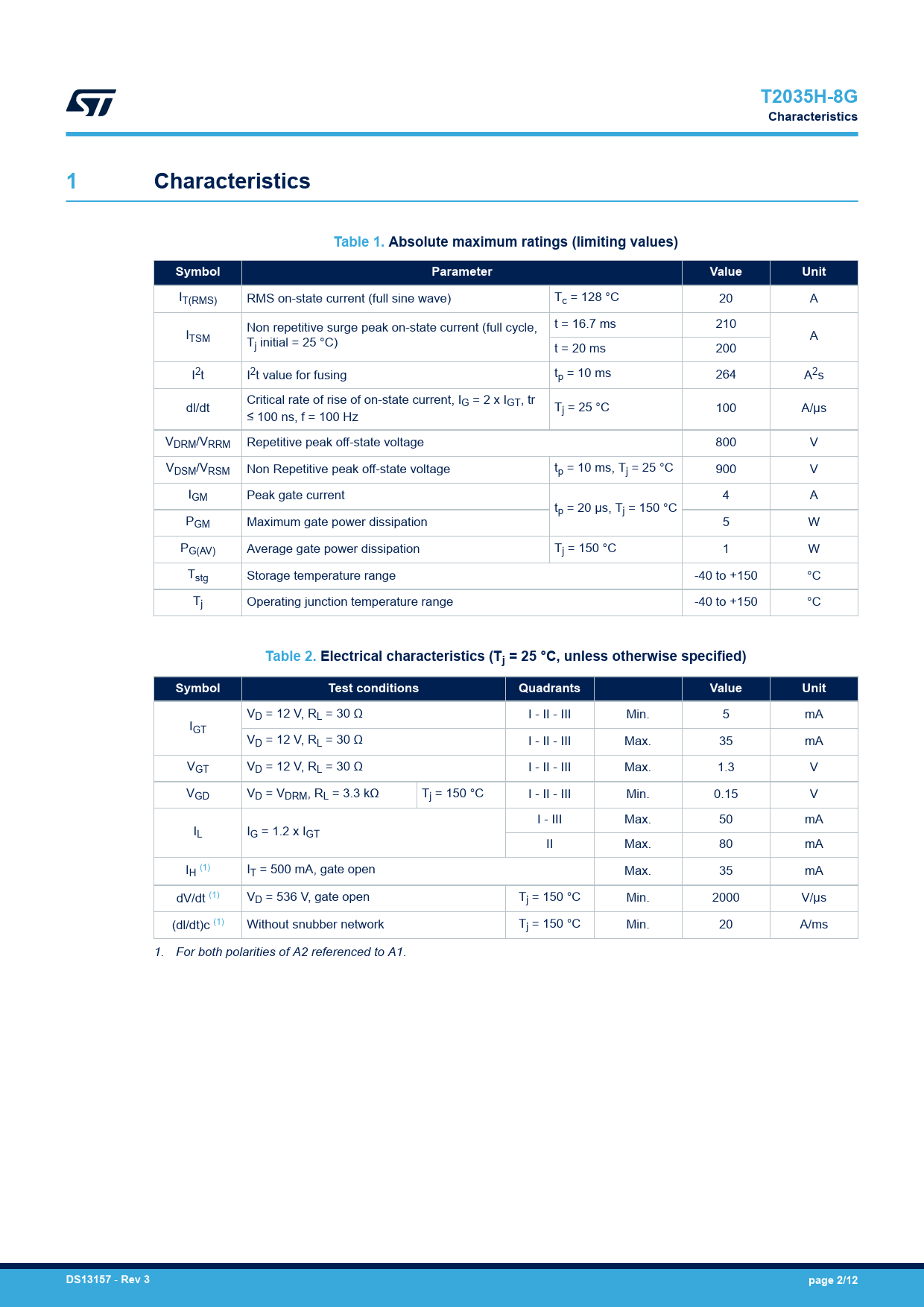

T2035H-8G Characteristics 1 Characteristics Table 1. Absolute maximum ratings (limiting values) Symbol Parameter Value Unit
IT(RMS) RMS on-state current (full sine wave) Tc = 128 °C 20 A Non repetitive surge peak on-state current (full cycle, t = 16.7 ms 210 ITSM T A j initial = 25 °C) t = 20 ms 200 I2t I2t value for fusing tp = 10 ms 264 A2s Critical rate of rise of on-state current, I dl/dt G = 2 x IGT, tr T ≤ 100 ns, f = 100 Hz j = 25 °C 100 A/µs VDRM/VRRM Repetitive peak off-state voltage 800 V VDSM/VRSM Non Repetitive peak off-state voltage tp = 10 ms, Tj = 25 °C 900 V IGM Peak gate current 4 A tp = 20 µs, Tj = 150 °C PGM Maximum gate power dissipation 5 W PG(AV) Average gate power dissipation Tj = 150 °C 1 W Tstg Storage temperature range -40 to +150 °C Tj Operating junction temperature range -40 to +150 °C
Table 2. Electrical characteristics (Tj = 25 °C, unless otherwise specified) Symbol Test conditions Quadrants Value Unit
VD = 12 V, RL = 30 Ω I - II - III Min. 5 mA IGT VD = 12 V, RL = 30 Ω I - II - III Max. 35 mA VGT VD = 12 V, RL = 30 Ω I - II - III Max. 1.3 V VGD VD = VDRM, RL = 3.3 kΩ Tj = 150 °C I - II - III Min. 0.15 V I - III Max. 50 mA IL IG = 1.2 x IGT II Max. 80 mA IH (1) IT = 500 mA, gate open Max. 35 mA dV/dt (1) VD = 536 V, gate open Tj = 150 °C Min. 2000 V/µs (dl/dt)c (1) Without snubber network Tj = 150 °C Min. 20 A/ms 1. For both polarities of A2 referenced to A1.
